LFULF009-QT-S 1/2

Part of the LFU009 Series

Ordering Code: 0124319

UPC: 098268829716

Lead Free: YES

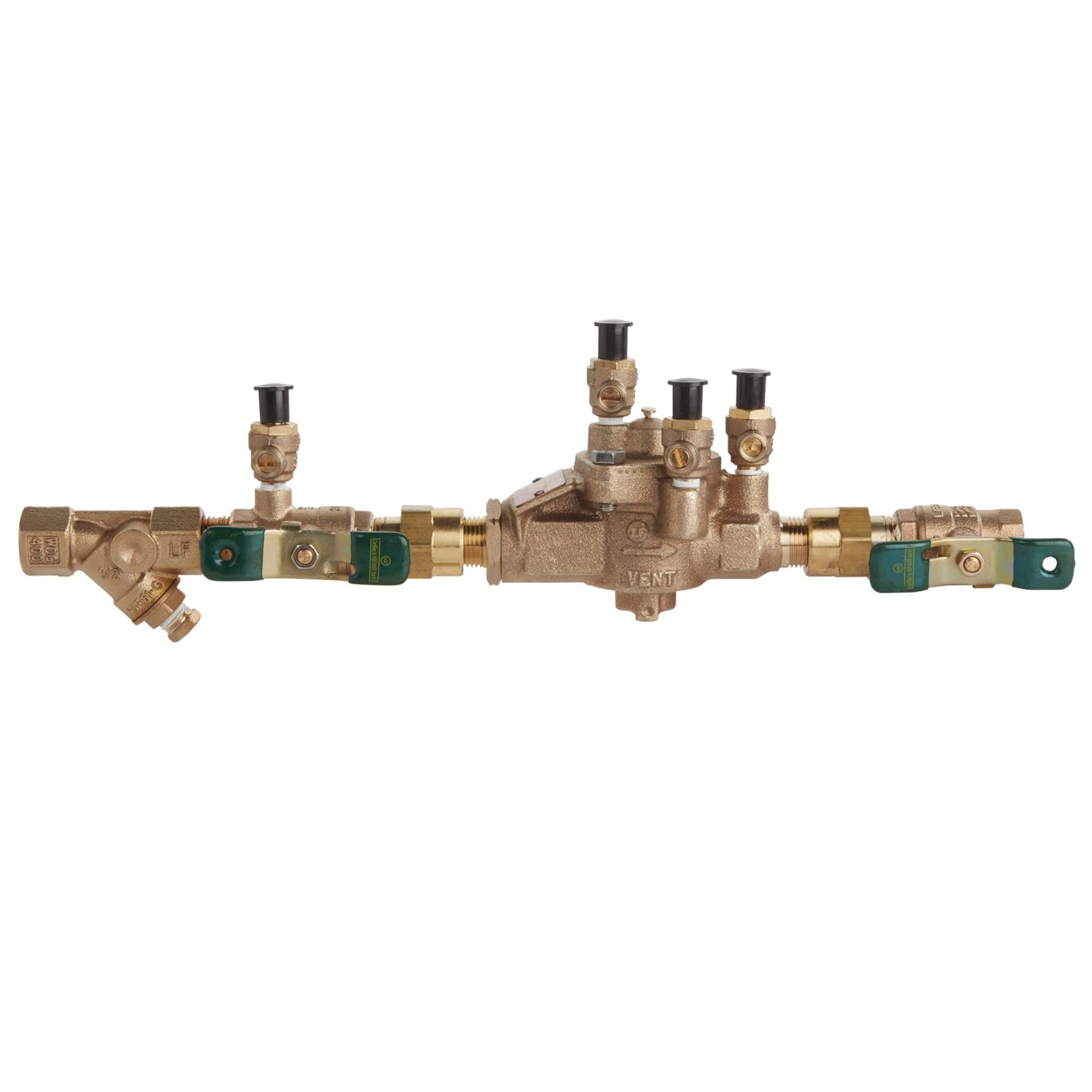

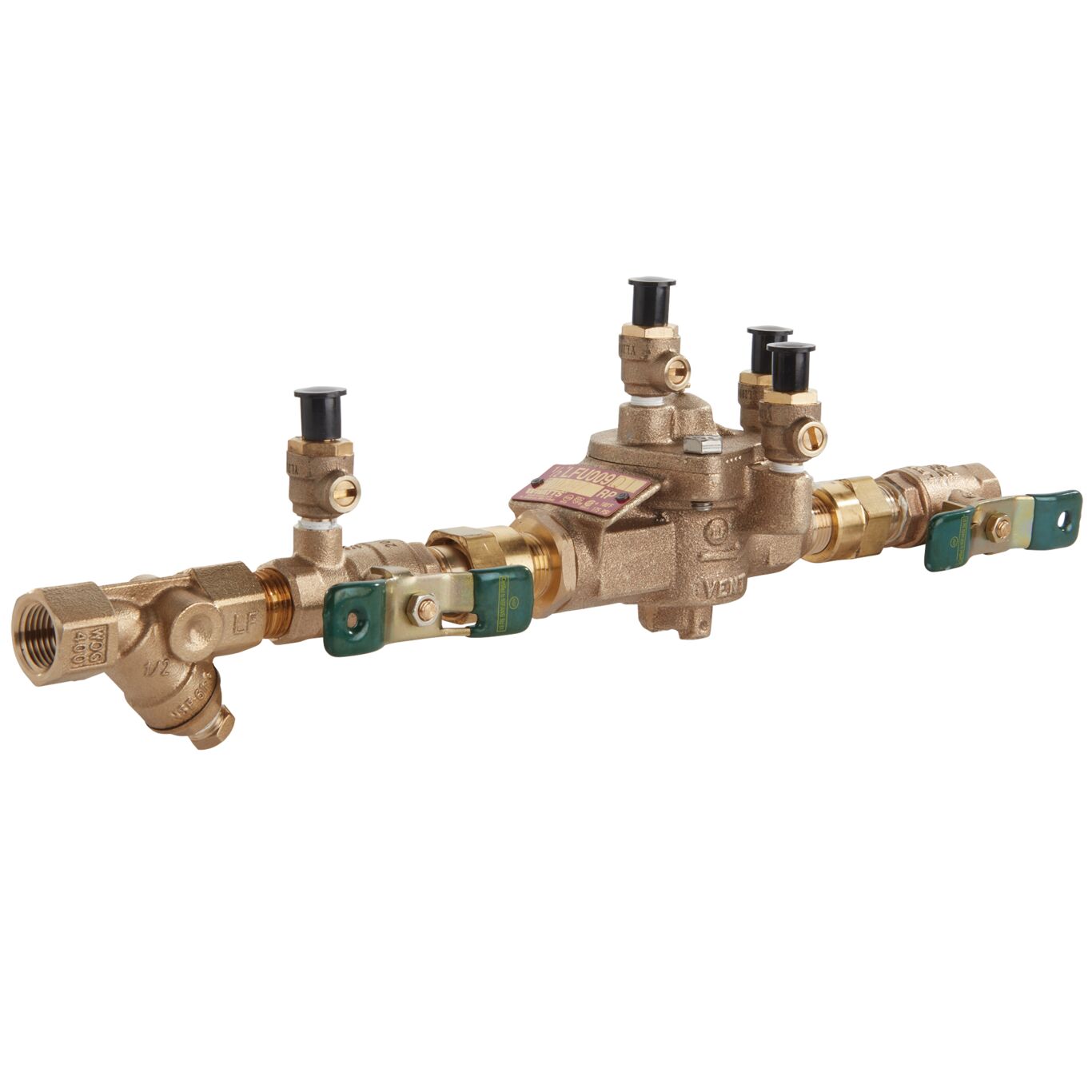

1/2 In Lead Free Reduced Pressure Zone Assembly, Quarter Turn Shutoff Valves, Union Connection, Bronze Strainer

This 1/2 IN lead free reduced pressure zone assembly is designed to prevent the flow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards and for contaminants at the service line entrance. This assembly consists of a lead free bronze body and strainer, union connections, quarter turn ball valve shutoffs with lever handles, top mounted test cocks, two in-line independent check valves, captured springs, and replaceable check seats with an internal relief valve for lead free reduced space requirements.

Product Features

  • Unique swivel union inlet and outlet connections
  • Lead free bronze body construction
  • Quarter turn full port resilient seated ball valve shutoffs
  • Furnished with a strainer
Specifications
Backflow Preventer Type Reduced Pressure Zone Assembly
Body Finish Cast Copper Silicon Alloy
Body Material Lead Free Bronze
Body Pattern Inline
Brand Name Watts
Bypass No
Cap And Tether No
Disc Material Silicone
Elbow Fitting Yes
Hazard Protection Level Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 1/2 IN
Inlet Connection Size-Metric 13 MM
Inlet Connection Type Union Joint
Inlet Shutoff Valve Type Quarter Turn Ball Valve
Inlet Thread Type FPT
Lead Free YES
Maximum Temperature-Fahrenheit 180
Maximum Working Pressure-BAR 12.10
Maximum Working Pressure-PSI 175
Meter Type No Meter
Minimum Temperature - Celsius 1.00
Minimum Temperature-Fahrenheit 33
Model Number LFULF009-QT-S 1/2
Outlet Connection Size 1/2 IN
Outlet Connection Type Union Joint
Outlet Shutoff Valve Type Quarter Turn Ball Valve
Outlet Thread Type FPT
Part Number 0124319
Polymer Coating No
Protection Type Backpressure and Backsiphonage
Series LFU009
Strainer Yes
Type Valve to Accessory
