SS009-QT 1

Part of the SS009 Series

Ordering Code: 0062962

UPC: 098268572087

Lead Free: YES

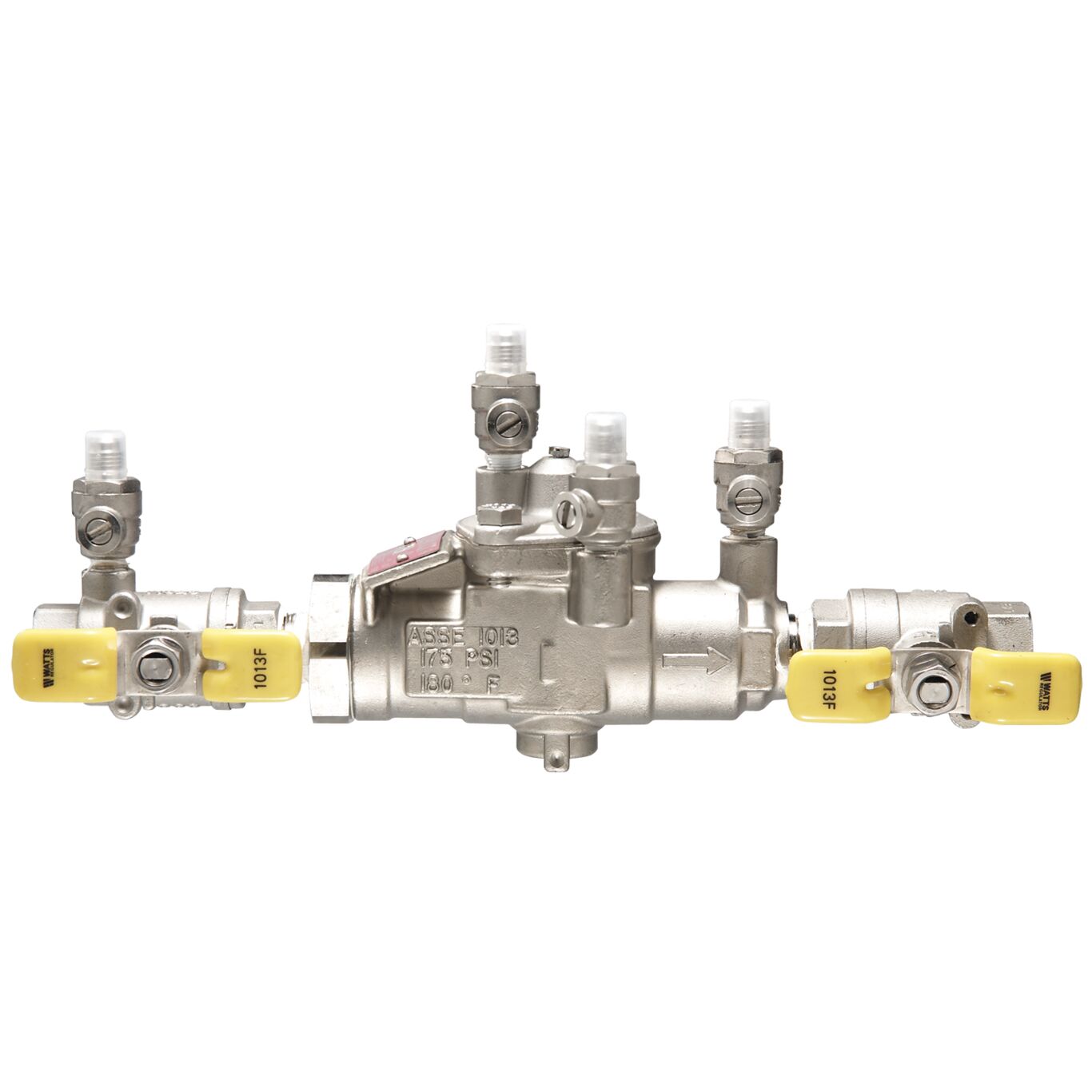

1 In Stainless Steel Reduced Pressure Zone Assembly, Quarter Turn Shutoff Valves

This 1 inch stainless steel reduced pressure zone assembly is designed to prevent the flow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. It is ideal for typical applications that are found in industrial plants, medical diagnostic equipment, reverse osmosis systems, carbonated beverage machines, brewing distillers, paper and pulp industries, chemical plants and aggressive atmospheres. This assembly consists of a 316 stainless steel body, NPT end connections, quarter turn ball valve shutoffs with tee handles, top mounted vandal resistant EZ-test cocks with covers, two in-line independent check valves, captured springs, replaceable check seats, corrosion resistant internal parts, and a hydraulically operated differential pressure internal relief valve for reduced space requirements.

Product Features

  • Investment cast 316 stainless steel assembly for corrosion resistance
  • Quarter turn full port resilient seated ball valve shutoffs
  • Modular check construction featuring nonreversible checks with captured springs for simplified servicing
  • NPT inlet and outlet connections
  • Internal relief valve for right and left hand installations
  • Top mounted vandal resistant EZ-TC test cocks provide easy access for testing
  • Replaceable seats for an economical repair
  • True line sized check modules open further allowing dirt and debris to pass freely through the valve reducing fouling problems
  • Bolted on, top entry single access cover for ease of maintenance
Backflow Preventer Type Reduced Pressure Zone Assembly
Body Finish Stainless Steel
Body Material Stainless Steel
Body Pattern Inline
Brand Name Watts
Bypass No
Bypass Size Does Not Apply To Product
Cap And Tether No
Disc Material Silicone
EANUCCCode 098268572087
Elbow Fitting No
Hazard Protection Level Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 1 IN
Inlet Connection Size-Metric 25 MM
Inlet Connection Type Female Threaded
Inlet Shutoff Valve Type Quarter Turn Ball Valve
Inlet Thread Type NPT
Lead Free YES
Maximum Temperature-Fahrenheit 180
Maximum Working Pressure-BAR 12.10
Maximum Working Pressure-PSI 175
Meter Type No Meter
Minimum Temperature - Celsius 0.50
Minimum Temperature-Fahrenheit 33
Outlet Connection Size 1 IN
Outlet Connection Type Female Threaded
Outlet Shutoff Valve Type Quarter Turn Ball Valve
Outlet Thread Type NPT
Part Number 0062962
Polymer Coating No
Pressure Operation Continuous
Protection Type Backpressure and Backsiphonage
Seat Material Stainless Steel
Series SS009
Strainer No
Type Valve to Accessory
