LF600 1/2

Part of the LF600 Series

Ordering Code: 0555175

UPC: 098268432855

Lead Free: YES

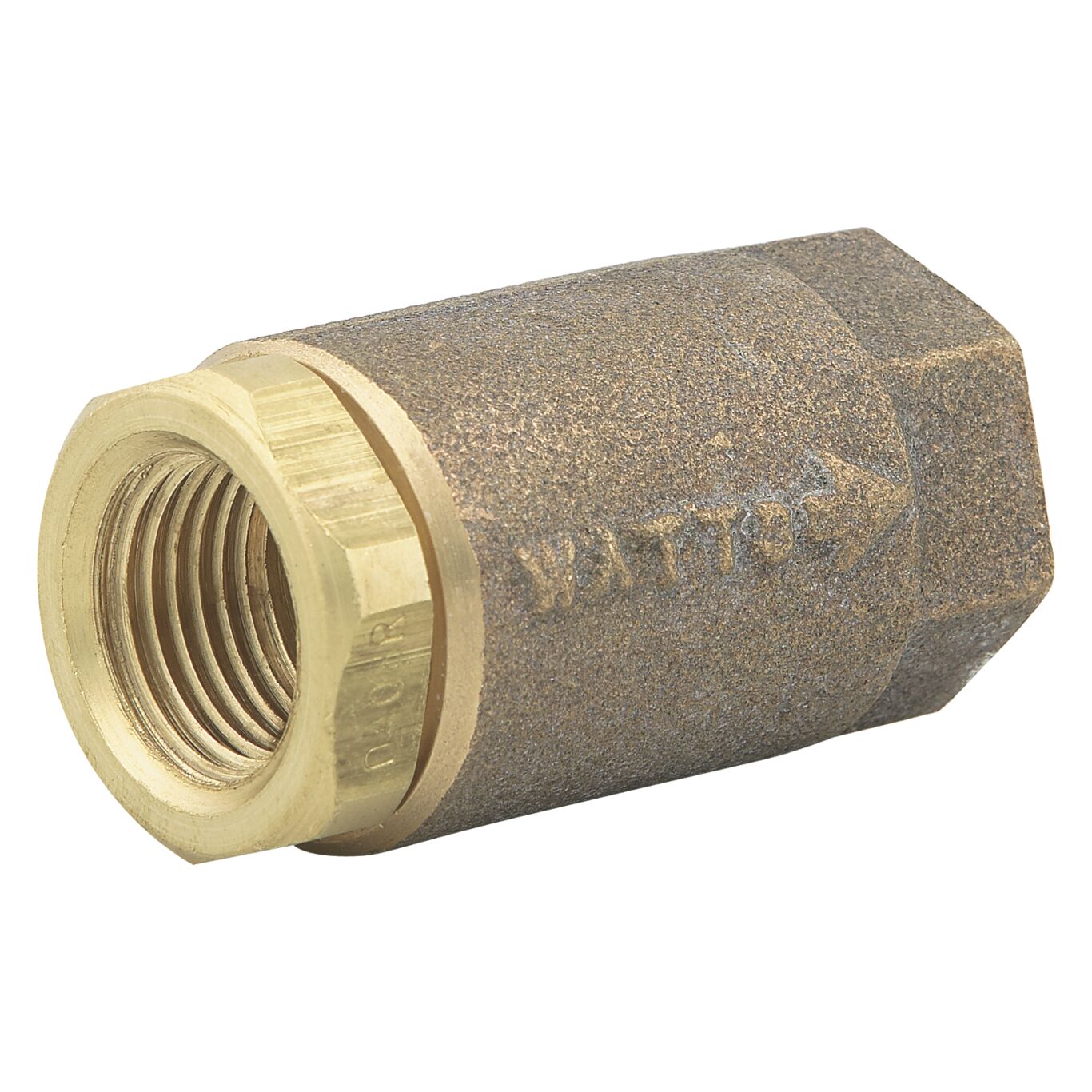

1/2 In Lead Free Brass Silent Check Valve, Ptfe Seat

This 1/2 inch lead free Maxi-Flo check valve is used in general industrial and plumbing applications to prevent the effects of water hammer in the piping system. It provides a silent operation with low pressure drop and can be installed horizontally or vertically. This valve consists of a lead free brass body, lead free brass check and adapter, conical lead free brass disc, and threaded end connections. The maximum working pressure rating is 400 psi (27.6 bar), WOG non-shock at minus 20 to 100 degrees F (minus 29 to 38 degrees C) and 15 psi (1 bar) WSP at 250 degrees F (121 degrees C).

Product Features

  • Lead free brass body
  • PTFE seat
  • Conical lead free brass disc
  • Silent operation
Body Material Brass
Body Pattern Straight
Brand Name Watts
Disc Material Brass
Disc Type Conical
Inlet Connection Size 1/2 IN
Inlet Connection Size-Metric 15 MM
Inlet Connection Type Female Threaded
Inlet Thread Type NPT
Lead Free YES
Maximum Operating Temperature-Celsius 38.00
Maximum Operating Temperature-Fahrenheit 100
Minimum Temperature - Celsius -29.00
Minimum Temperature-Fahrenheit -20
Model Number LF600 1/2
Outlet Connection Size 1/2 IN
Outlet Connection Type Female Threaded
Outlet Thread Type NPT
Part Number 0555175
Seat Material PTFE
Series LF600
WOG Rating 400 PSI
