LF3100M3 2 1/2

Part of the LF3100 Series

Ordering Code: 0821747

UPC: 098268792812

Lead Free: YES

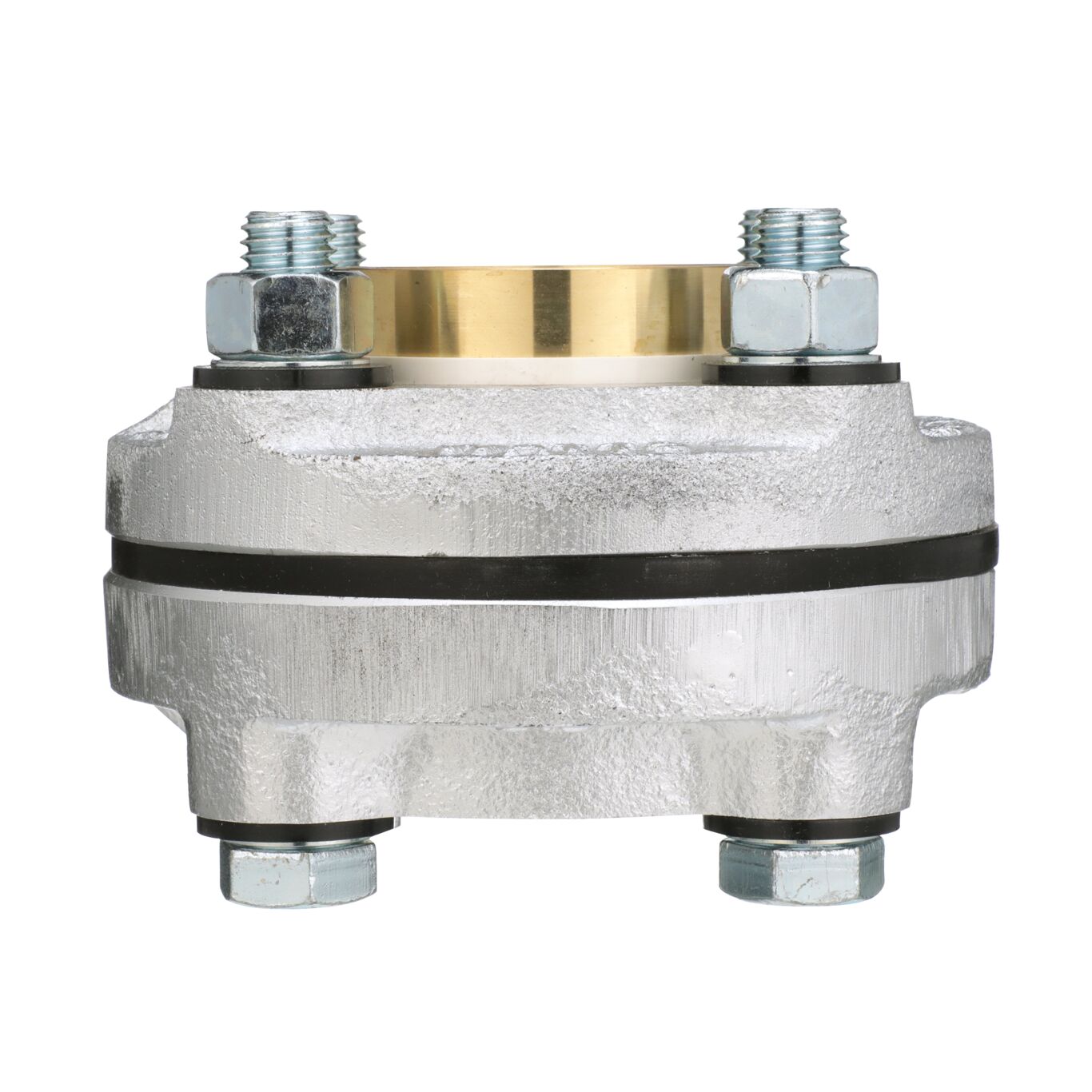

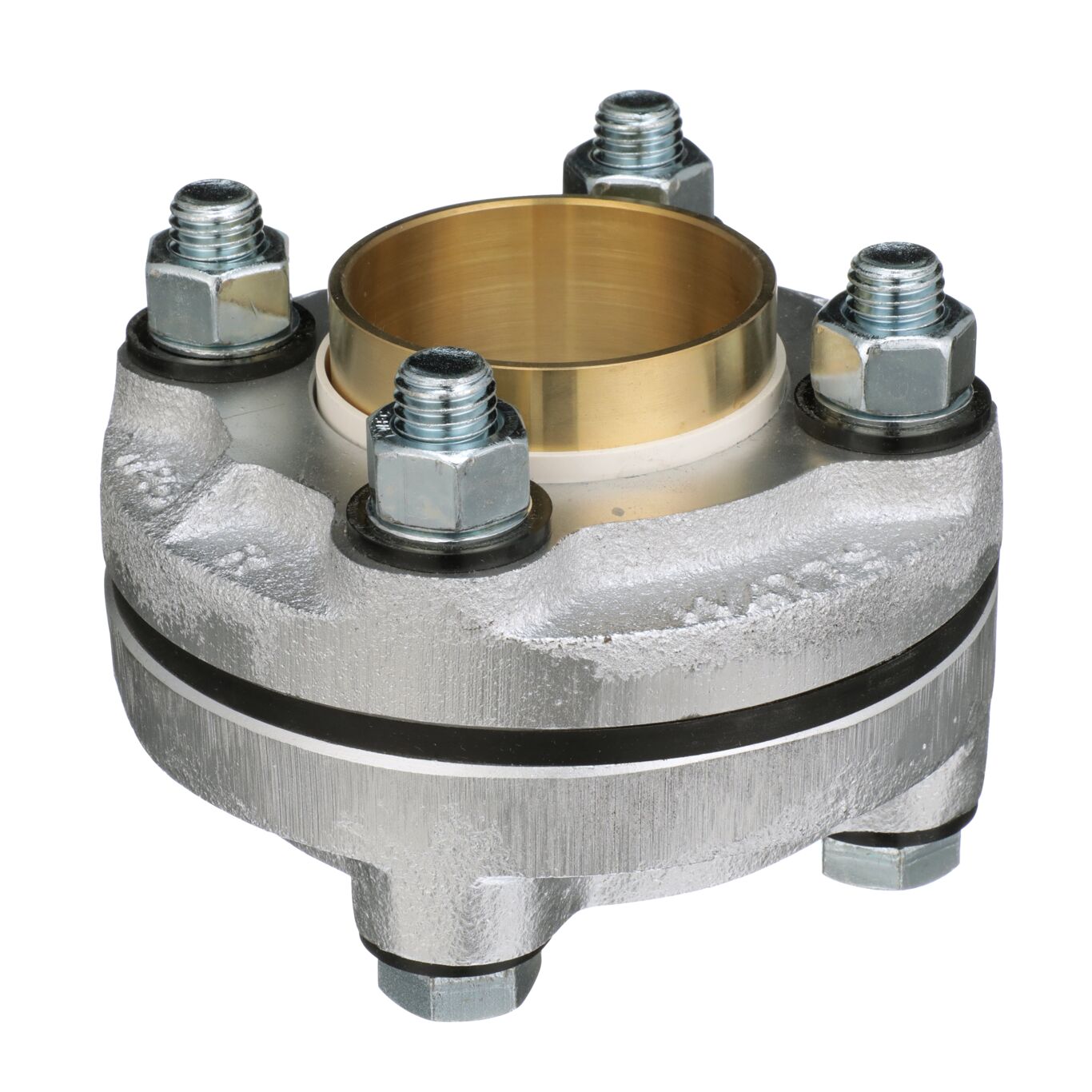

2 1/2 In Lead Free Dielectric Galvanized Iron Flange Pipe Fitting With Brass Tailpiece, Iron Pipe Thread To Copper Solder Joint

This 2 1/2 inch lead free dielectric flange pipe fitting is designed for commercial and residential applications such as the connections of piping of dissimilar metals on a hot water storage tank, water and air conditioners, processing tanks, steam, gas, and water piping to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is suitable for water, air, oil, natural gas, propane, gasoline, kerosene, mineral oil, vegetable oil, and alkaline. It consists of an iron pipe thread to copper solder joint flange tailpiece with an EPDM gasket and hardware. The maximum temperature is rated up to 300 degrees F (149 degrees C). The maximum pressure is rated at 50 psi (3.4 bar). It meets ASSE 1079 specification.

Product Features

  • EPDM gasket
  • Maximum pressure is 50 psi (3.4 bar)
  • Iron pipe thread to copper solder joint connections
  • Maximum temperature 300 degrees F (149 degrees C)
Adapter Material Cast Iron
Brand Name Watts
Class Rating Does Not Apply To Product
EANUCCCode 098268792812
Gasket Material Buna-N
Gasket Maximum Pressure 175 PSI
Gasket Maximum Pressure-BAR 12.10
Gasket Maximum Temperature 180 Degree F
Inlet Connection Size 2 1/2 IN
Inlet Connection Size-Metric 64 MM
Inlet Connection Type Female Threaded
Inlet Material Iron
Inlet Thread Type NPT
Insulator Material Polysulfone
Lead Free YES
Maximum Working Pressure-PSI 175
Maximum Working Temperature-Fahrenheit 180
Nut Material Steel
Outlet Connection Size 2 1/2 IN
Outlet Connection Type Socket
Outlet Material Lead Free Brass
Outlet Thread Type Does Not Apply To Product
Part Number 0821747
Series LF3100
