AFTF-25

Part of the AFTF Series

Ordering Code: 88005299

UPC: 098268151961

Lead Free: YES

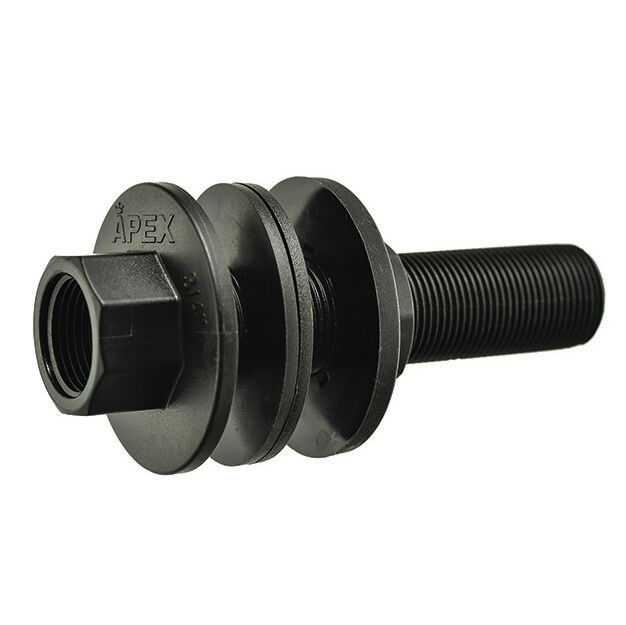

1 Female Tank Fitting

  • Ideal for agricultural, irrigation, rural and municipal, and plumbing applications
  • Designed for use with APEX tank and trough valves
  • Can be used on plastic and concrete water storage reservoirs, tank, and trough
  • Efficiently connects inlet water line to the tank and trough valve
  • High grade fiberglass reinforced nylon construction offers corrosion resistance and long-lasting, reusable wear
  • Provides Leak Free protection and is UV stabilized for above ground or below grade applications
Specifications
Brand Watts
Buy American Act Compliant NO
Inlet Connection Size 1 IN
Inlet Connection Size-Metric 25 MM
Inlet Connection Type Female Threaded
Inlet Material Reinforced Thermoplastic
Inner Diameter 1 IN
Lead Free YES
Material Reinforced Thermoplastic
Maximum Working Pressure-BAR 16.00
Maximum Working Pressure-PSI 230
Maximum Working Temperature-Celsius 60.00
Maximum Working Temperature-Fahrenheit 140
Minimum Temperature - Celsius 0.00
Minimum Temperature-Fahrenheit 32
Outer Diameter 1 IN
Outlet Connection Size 1 IN
Outlet Connection Type Female Threaded
Outlet Material Reinforced Thermoplastic
