Part of the ARFE Series
Ordering Code: 88005287

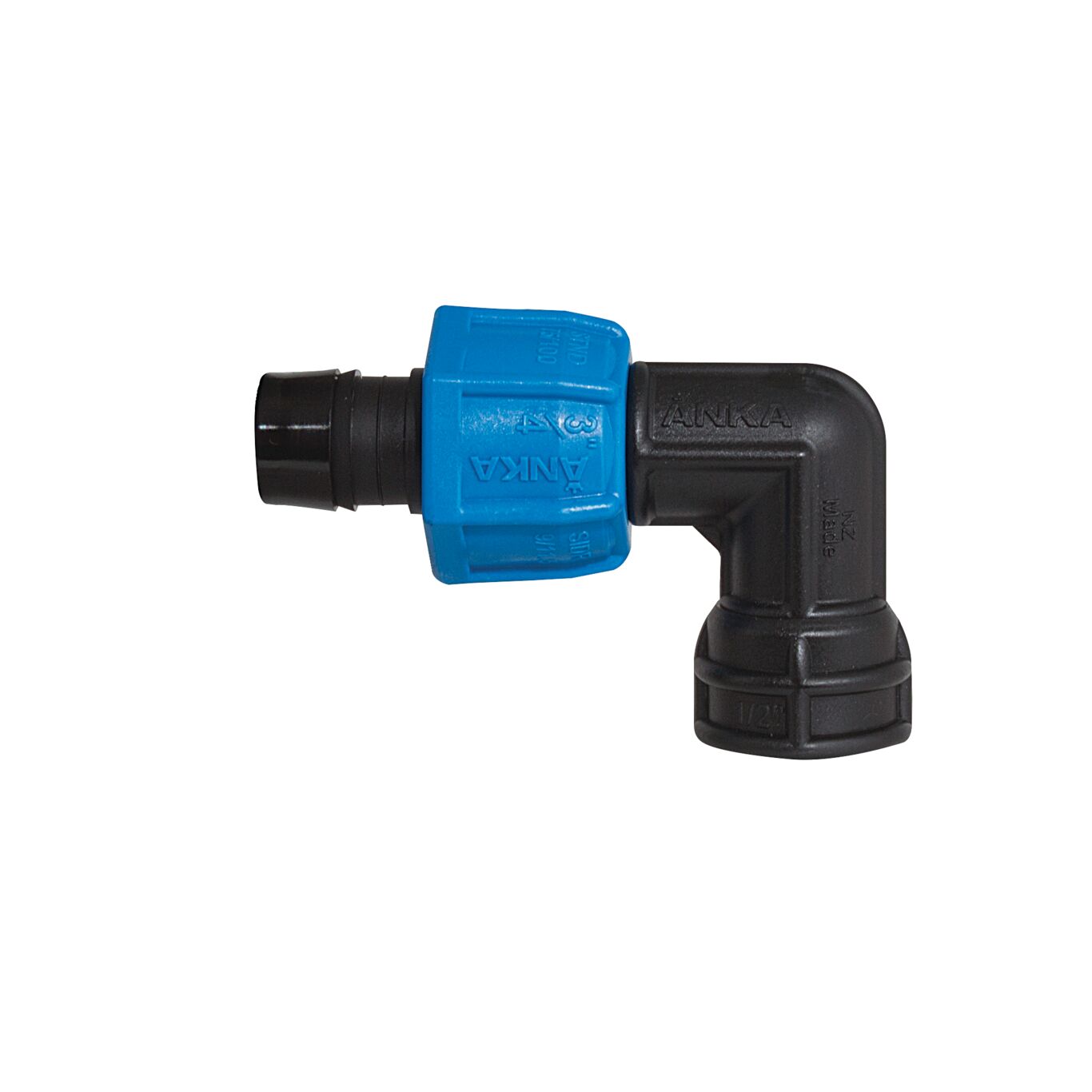

3/4 Pipe X 1/2 Female Npt Thread Reducing Female Elbow
This 3/4 inch x 1/2 inch reducing female elbow is manufactured from high grade fiberglass reinforced nylon. It is non corrosive; using high quality materials approved for use with drinkable water. Designed to connect a range of ID nominally sized polyethylene pipe, tube and hose with varying wall thicknesses. Connection can be made by hand, without tools. It is re-usable and utilizes a unique way to connect pipe without the need for multiple replacement parts. The unique blue captive nut seals stays on the ridge and seals the pipe on the ridge. Female NPT inlet and barb outlet connection type, fits 3/4 and 1/2 inch nominally sized polyethylene pipe, tube and hose. Used for the most rigorous agricultural and horticultural uses. Maximum pressure is 230 psi and maximum temperature is 140 degrees F.
- Will handle 230 psi pressure
- Connection can be made by hand, and without tools
- Fittings are reusable
- Non corrosive
