Part of the ARSC Series

Ordering Code: 88005248

UPC: 098268150049

Lead Free: YES

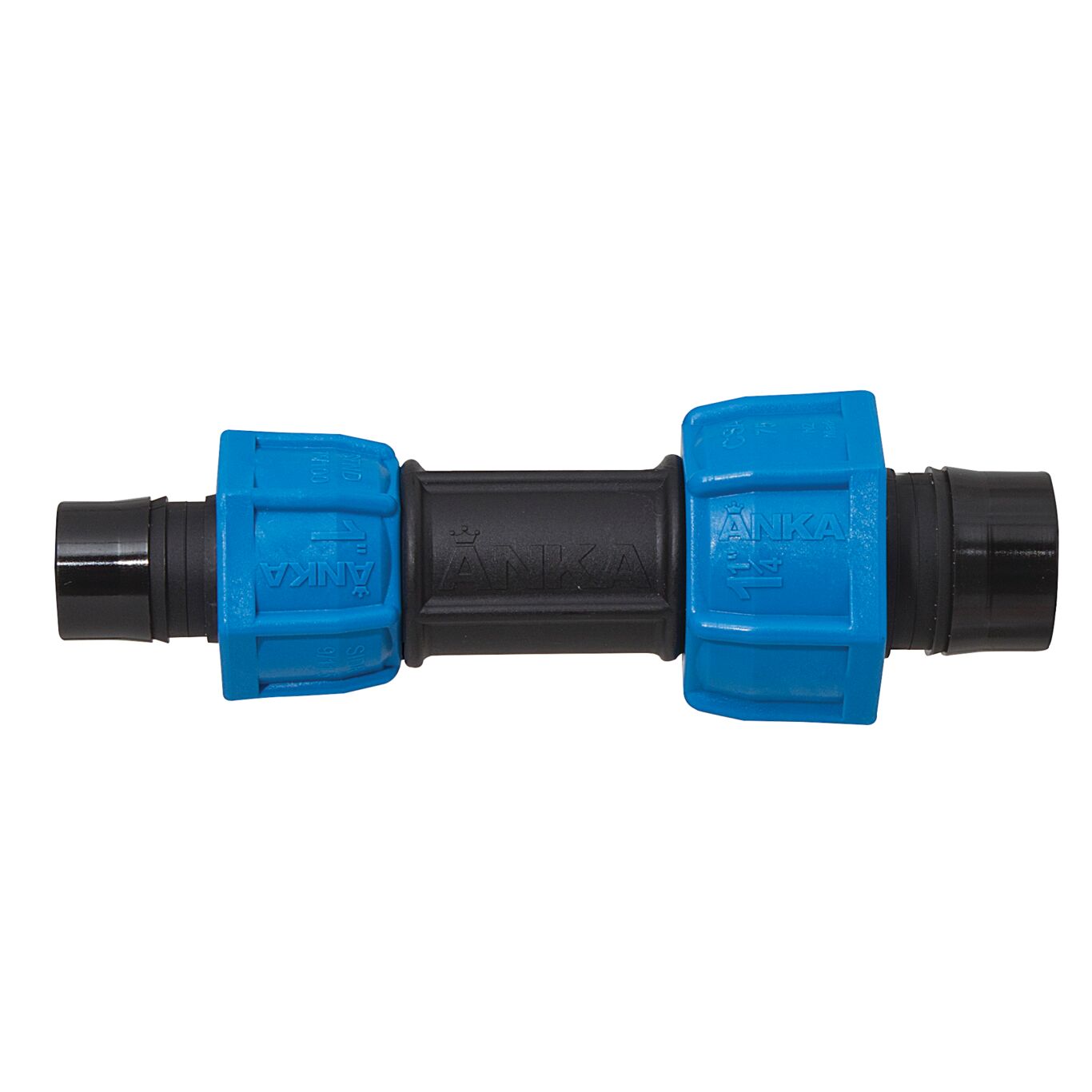

1 Pipe X 1/2 Pipe Reducing Straight Coupling

This 1 inch x 1/2 inch reducing straight coupling is manufactured from high grade fiberglass reinforced nylon. It is non corrosive; using high quality materials approved for use with drinkable water. Designed to connect a range of ID nominally sized polyethylene pipe, tube, and hose with varying wall thicknesses. Connection can be made by hand, without tools. It is re-usable and utilizes a unique way to connect pipe without the need for multiple replacement parts. The unique blue captive nut seals stays on the ridge and seals the pipe on the ridge. Barb inlet and outlet connection type, fits 1 inch and 1/2 inch nominally sized polyethylene pipe, tube and hose. Used for the most rigorous agricultural and horticultural uses. Maximum pressure is 230 psi and maximum temperature is 140 degrees F.

Product Features

  • Non corrosive
  • Will handle 230 psi pressure
  • Connection can be made by hand, and without tools
  • Fittings are reusable
Brand Name Watts
Inlet Connection Size 1 IN
Inlet Connection Size-Metric 25 MM
Inlet Connection Type Barb
Inlet Material Reinforced Thermoplastic
Inner Diameter 1 IN
Lead Free YES
Material Reinforced Thermoplastic
Maximum Working Pressure-BAR 16.00
Maximum Working Pressure-PSI 230
Maximum Working Temperature-Celsius 60.00
Maximum Working Temperature-Fahrenheit 140
Minimum Temperature - Celsius 0.00
Minimum Temperature-Fahrenheit 32
Outer Diameter 1 IN
Outlet Connection Size 1/2 IN
Outlet Connection Type Barb
Outlet Material Reinforced Thermoplastic
