Part of the XF Series

Ordering Code: 88005628

UPC: 098268160796

Lead Free: YES

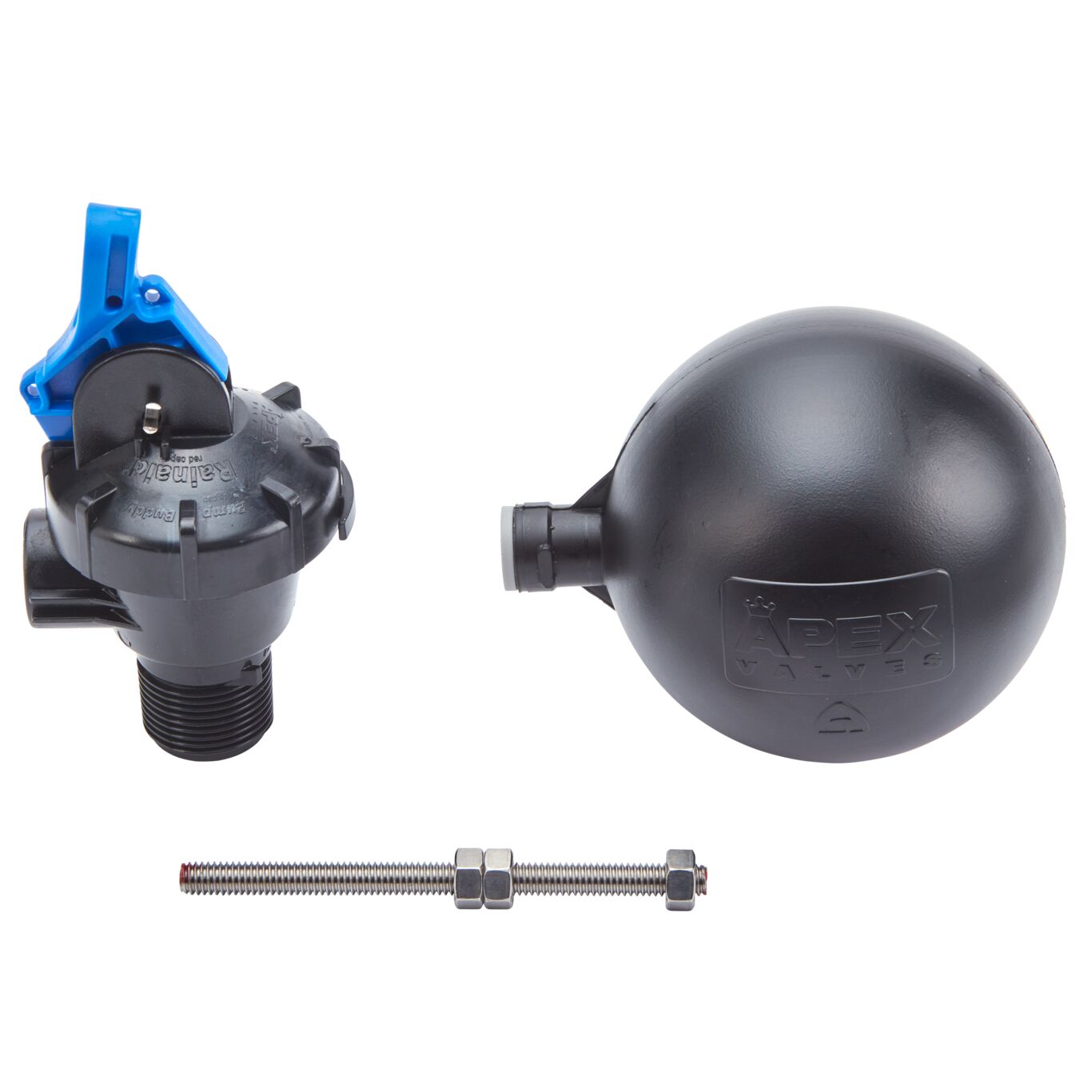

1 IN Black Plastic Diaphragm Activated Top Entry Trough Valve with Float

This 1 IN top entry float valve is designed to prevent backflow. It utilizes a unique way of operation where the pin moves out of the tip of the jet center, pushing any accumulated debris which reduces the valve from blocking. The valve operates at full flow when in the open position reducing wear and tear on the pump while also saving electricity. The valve uses a diaphragm that shuts off the supply of water slowly avoiding any chance of creating water hammer.

Product Features

  • Diaphgram design
  • Valve is made from glassed filled nylon
  • Valve is serviceable
  • Valve runs at full flow until shut off
Body Material Acetyl
Brand Name Watts
EANUCCCode 098268160796
Flow Specifications 9999
Inlet 1 Connection Size 1 IN
Inlet Pressure-PSI 4
Lead Free YES
Maximum Pressure-PSI 175
Maximum Temperature-Fahrenheit 140
Outlet Connection Size Does Not Apply To Product
Outlet Connection Type Does Not Apply To Product
Outlet Thread Type Does Not Apply To Product
Part Number 88005628
Series XF
Stem Length 5 IN
