AFV1

Part of the AFV Series

Ordering Code: 88005304

UPC: 098268151992

Lead Free: YES

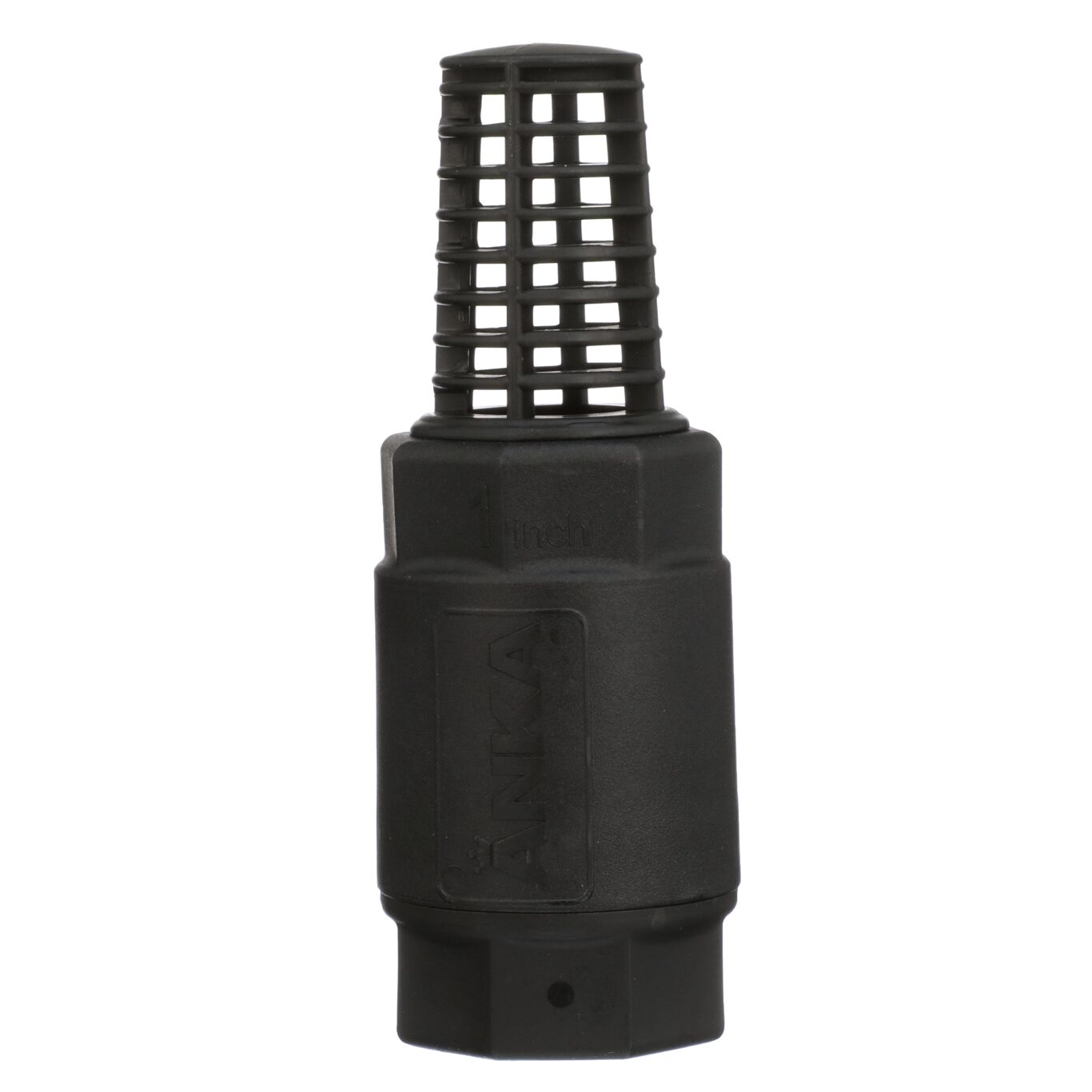

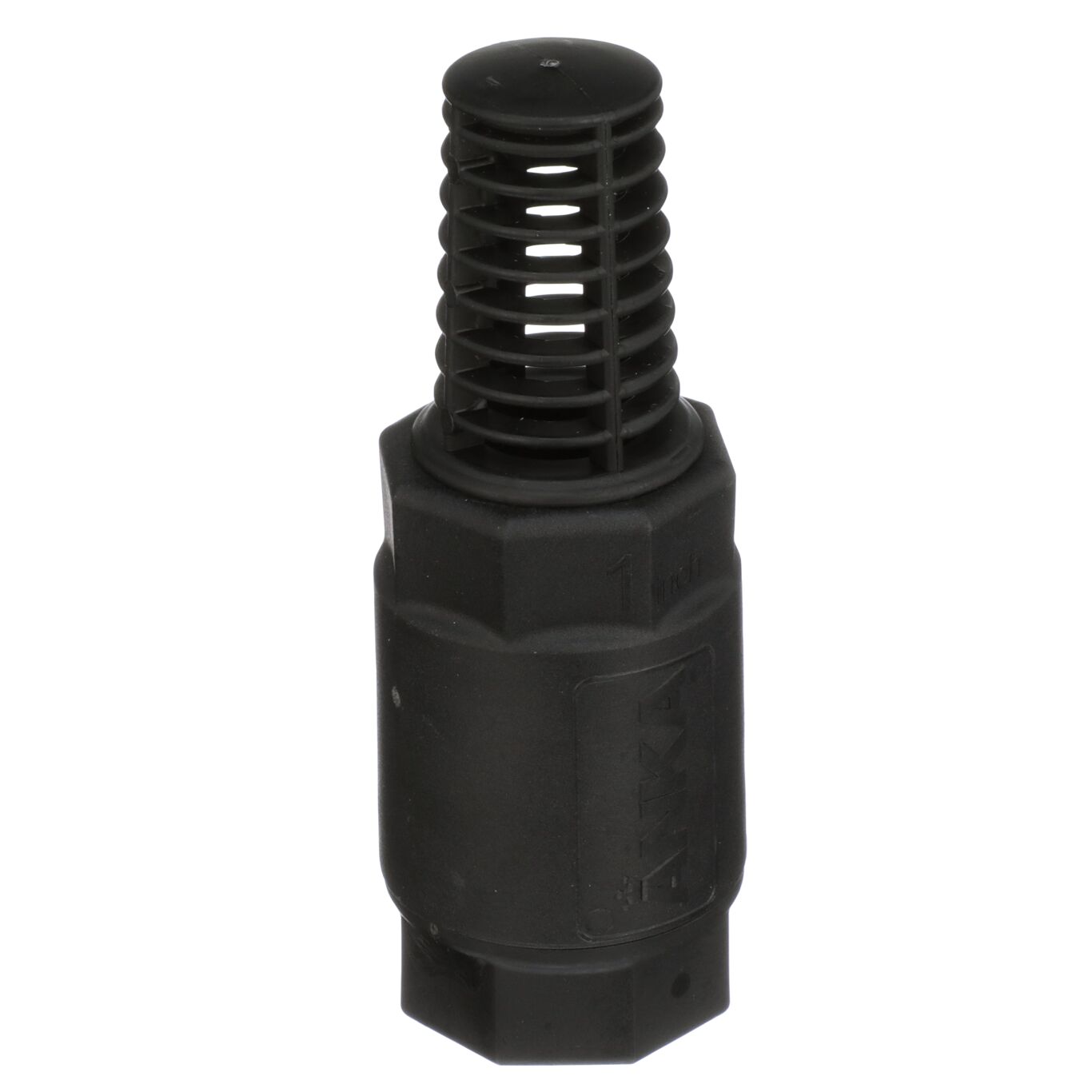

1 Female Npt Foot Valve

This 1 IN female foot valve is used at the suction end of the pump line to prevent loss of water. It is spring loaded and can be installed at any angle, it comes complete with a Filter screen which can be taken off.

Product Features

  • Fittings are reusable
  • Combination thread can be used for NPT and BSP
  • Will handle 230 psi pressure
  • Non corrosive
Specifications
Brand Name Watts
Inlet Connection Size 1 IN
Inlet Connection Size-Metric 25 MM
Inlet Connection Type Does Not Apply To Product
Inlet Material Reinforced Thermoplastic
Inner Diameter 1 IN
Lead Free YES
Material Reinforced Thermoplastic
Maximum Working Pressure-BAR 16.00
Maximum Working Pressure-PSI 230
Maximum Working Temperature-Celsius 60.00
Maximum Working Temperature-Fahrenheit 140
Minimum Temperature - Celsius 0.00
Minimum Temperature-Fahrenheit 32
Outer Diameter 1 IN
Outlet Connection Size 1 IN
Outlet Connection Type Does Not Apply To Product
Outlet Material Reinforced Thermoplastic
