AFU1

Part of the AFU Series

Ordering Code: 88005294

UPC: 098268151916

Lead Free: YES

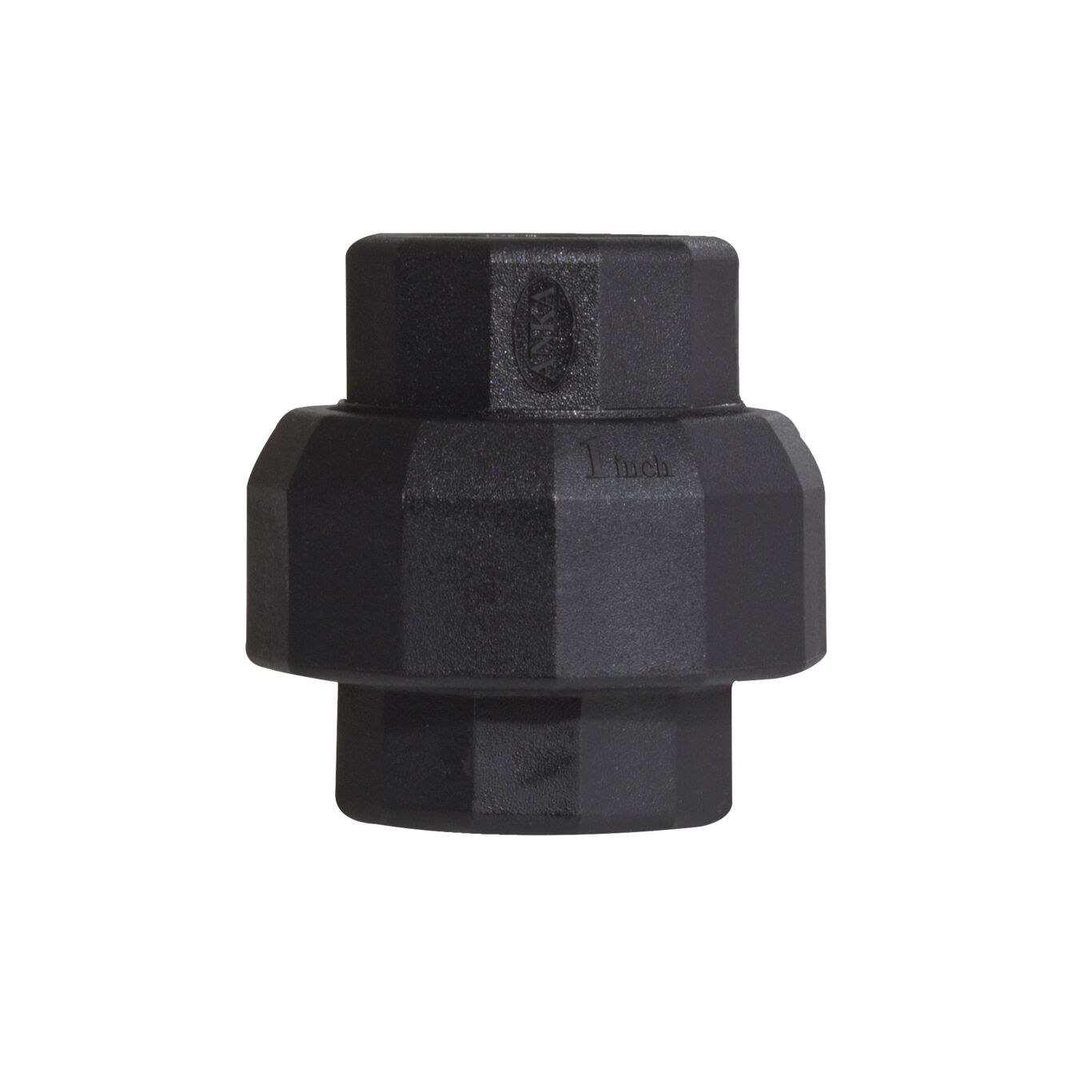

1 X 1 Female Npt Thread Straight Female Union

This 1 inch x 1 inch straight pipe union with male NPT thread is manufactured from high grade glass fiber reinforced nylon. It is non corrosive; using high quality materials approved for use with drinkable water. Designed to connect a range of ID nominally sized polyethylene pipe, tube, and hose with varying wall thicknesses. Connection can be made by hand, without tools. It is re-usable and utilizes a unique way to connect pipe without the need for multiple replacement parts. The unique blue captive nut seals stays on the ridge and seals the pipe on the ridge. Barb inlet and outlet connection type, fits 1 inch nominally sized polyethylene pipe, tube and hose. Used for the most rigorous agricultural and horticultural uses. Maximum pressure is 230 psi and maximum temperature is 140 degrees F.

Product Features

  • Will handle 230 psi pressure
  • Non corrosive
  • Made from glass reinforced nylon
  • Perfect for pipework installations around pumps and tanks
Specifications
Brand Name Watts
Inlet Connection Size 1 IN
Inlet Connection Size-Metric 25 MM
Inlet Connection Type Female Threaded
Inlet Material Reinforced Thermoplastic
Inner Diameter 1 IN
Lead Free YES
Material Reinforced Thermoplastic
Maximum Working Pressure-BAR 16.00
Maximum Working Pressure-PSI 230
Maximum Working Temperature-Celsius 60.00
Maximum Working Temperature-Fahrenheit 140
Minimum Temperature - Celsius 0.00
Minimum Temperature-Fahrenheit 32
Outer Diameter 1 IN
Outlet Connection Size 1 IN
Outlet Connection Type Female Threaded
Outlet Material Reinforced Thermoplastic
