DPG1-3-0-100

Discontinued - Replaced By: LFDPG1-3 0-100 1/4

Part of the DPG-1 Series

Ordering Code: 0615617

UPC: 098268045338

Lead Free Model Available

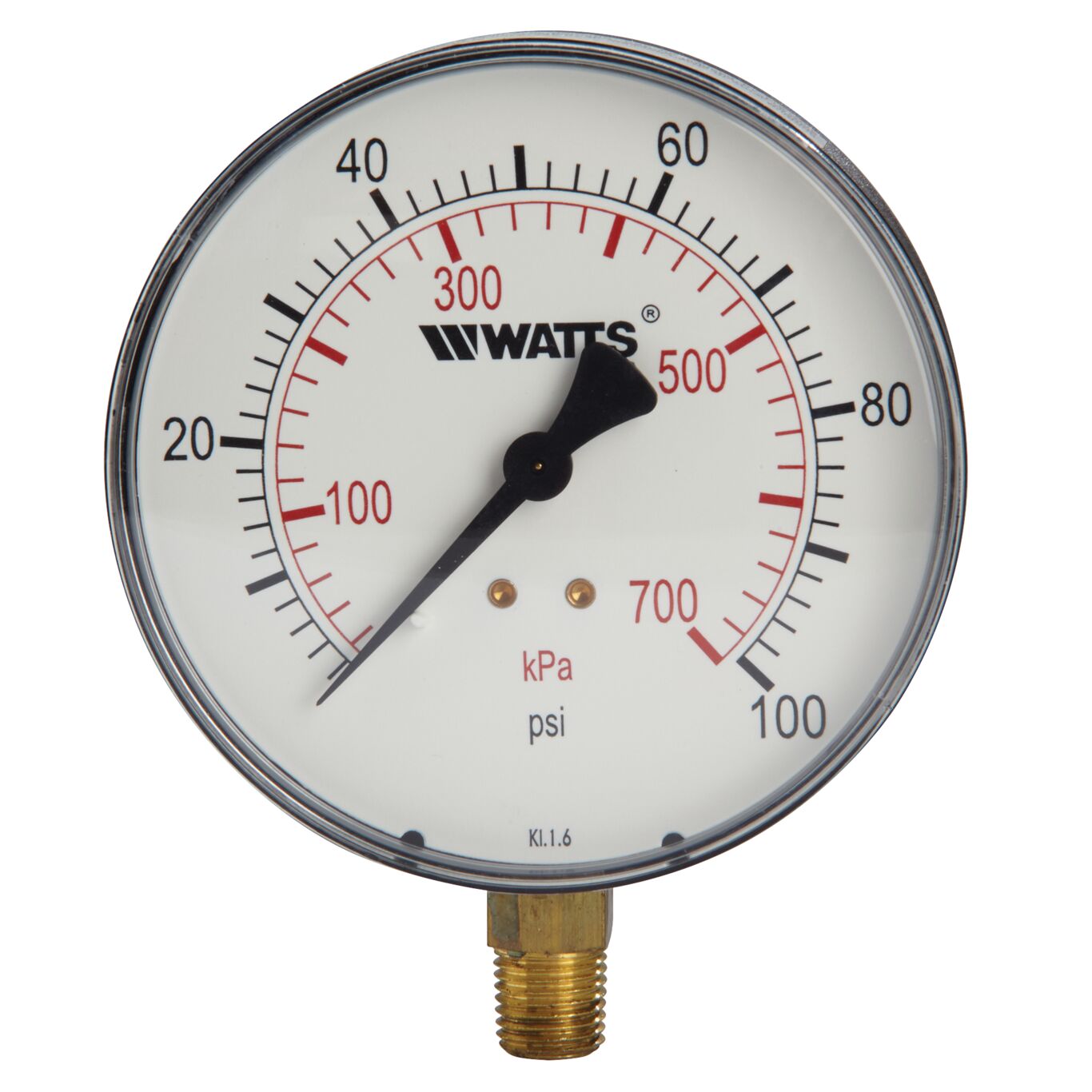

1/4 In Pressure Gauge, 0-100 psi, 3 In Dial, Bottom Entry

This bottom entry pressure gauge is used in commercial, residential, and institutional HVAC applications. It features an ABS polymer case, Kostil Polymer window, 1/4 IN NPT connection, and copper alloy Bourdon tube sensing element. Accuracy is ASME, Type B. Pressure rating scale is 0-100 psi. It features a 3 IN dial with dual scale (psi and kPa).

Product Features

  • Tin alloy welding
  • ABS polymer case
  • Copper alloy Bourdon sensing element
  • Kostil polymer window
Specifications
Air Valve No
Brand Name Watts
Case Material ABS Polymer
Dial Size 3 IN
Entry Style Bottom
Inlet Connection Size 1/4 IN
Inlet Connection Type Male Threaded
Lead Free NO
Manual Shutoff No
Maximum Operating Temperature-Fahrenheit 176
Minimum Temperature-Fahrenheit -4
Model Number DPG1-3-0-100
Part Number 0615617
Pressure Scale 0 to 100 PSI
Sensing Element Yes
Sensing Fluid No
Series DPG-1
Stem Shaft Material Brass
Temperature Range Minus 4 to 176 degrees F
Thermostat Probe Length Does Not Apply To Product
Thermowell No
VR Retaining Valve No
