TL-5-2-30-240
×
![]()
Discontinued - Replaced By: LFTL-5-2-30-240 5
Part of the TL Series
Ordering Code: 0617012
UPC: 098268198751

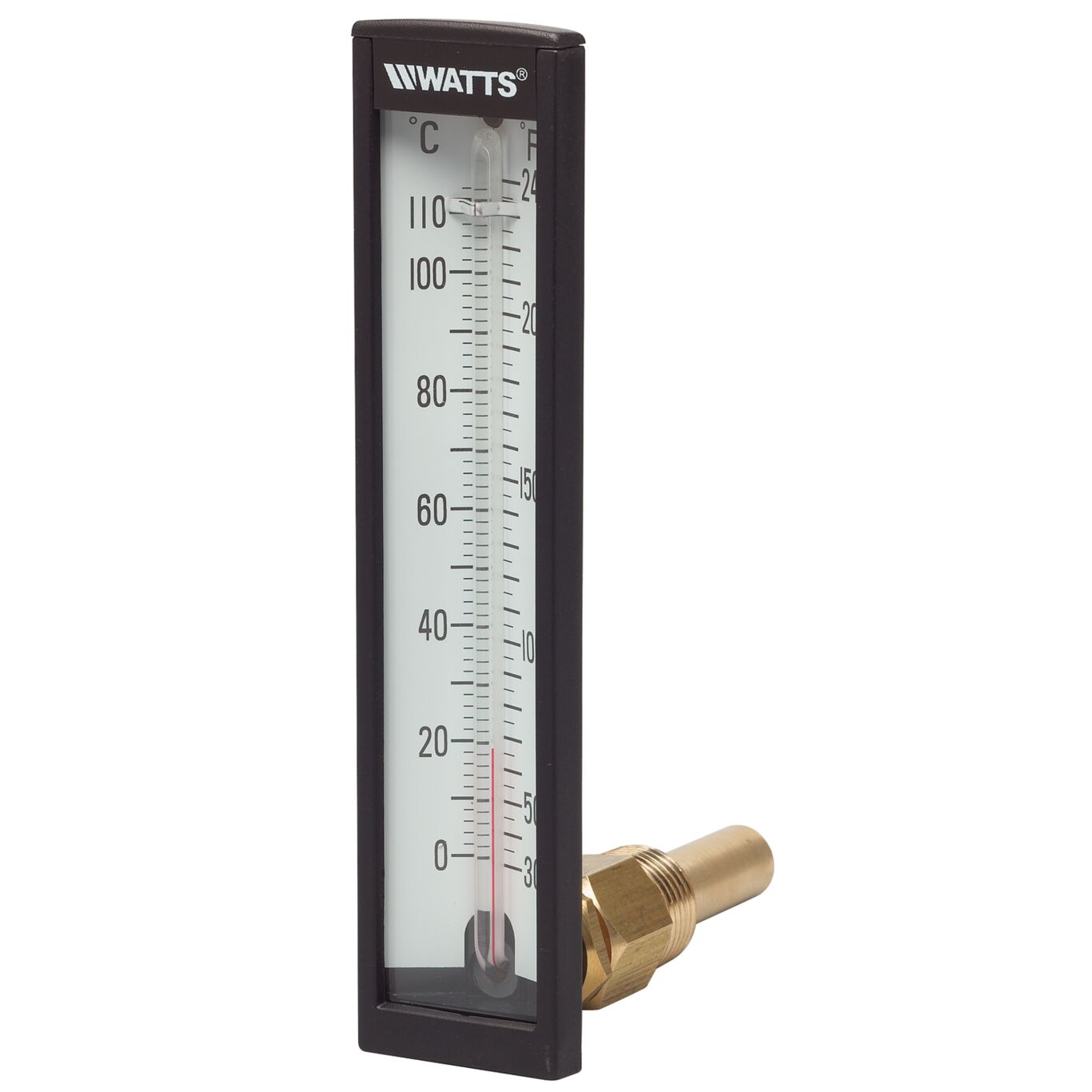

Liquid Filled Angle Thermometer, 30-240 degree F
This liquid fill angle thermometer is used in commercial, residential and institutional HVAC applications. It is a sealed in a glass tube with a polypropylene case, glass lens, non to mercury sensing fluid, 2 inch stem and a lead free brass thermowell with accuracy rated at plus or minus 2 percent of full scale. The working temperature rating scale is 30 to 240 degree F.
Features
- Glass lens
- Polypropylene case
- Non Mercury sensing fluids
- Brass thermowell
| Specifications | |
|---|---|
| Air Valve | No |
| Brand | Watts |
| Buy American Act Compliant | NO |
| Case Finish | Does Not Apply To Product |
| Case Material | Polypropelene |
| Dial Size | Does Not Apply To Product |
| EAN | 098268198751 |
| Entry Style | Back |
| Inlet Connection Size | 1/2 IN |
| Inlet Connection Type | Male Threaded |
| Lead Free | NO |
| Manual Shutoff | No |
| Maximum Operating Temperature-Fahrenheit | 240 |
| Minimum Temperature-Fahrenheit | 30 |
| Part Number | 0617012 |
| Pressure Scale | Does Not Apply To Product |
| Sensing Element | Yes |
| Sensing Fluid | Yes |
| Series | TL |
| Stem Shaft Material | Brass |
| Temperature Range | 30 to 240 degrees F |
| Thermowell | Yes |
| VR Retaining Valve | No |
| Window Material | Glass |
