RPV-S M1 1

Part of the RPVM1 Series

Ordering Code: 0207533

UPC: 098268502114

Lead Free: Not In Scope

1 In Residential Purge Valve, Solder

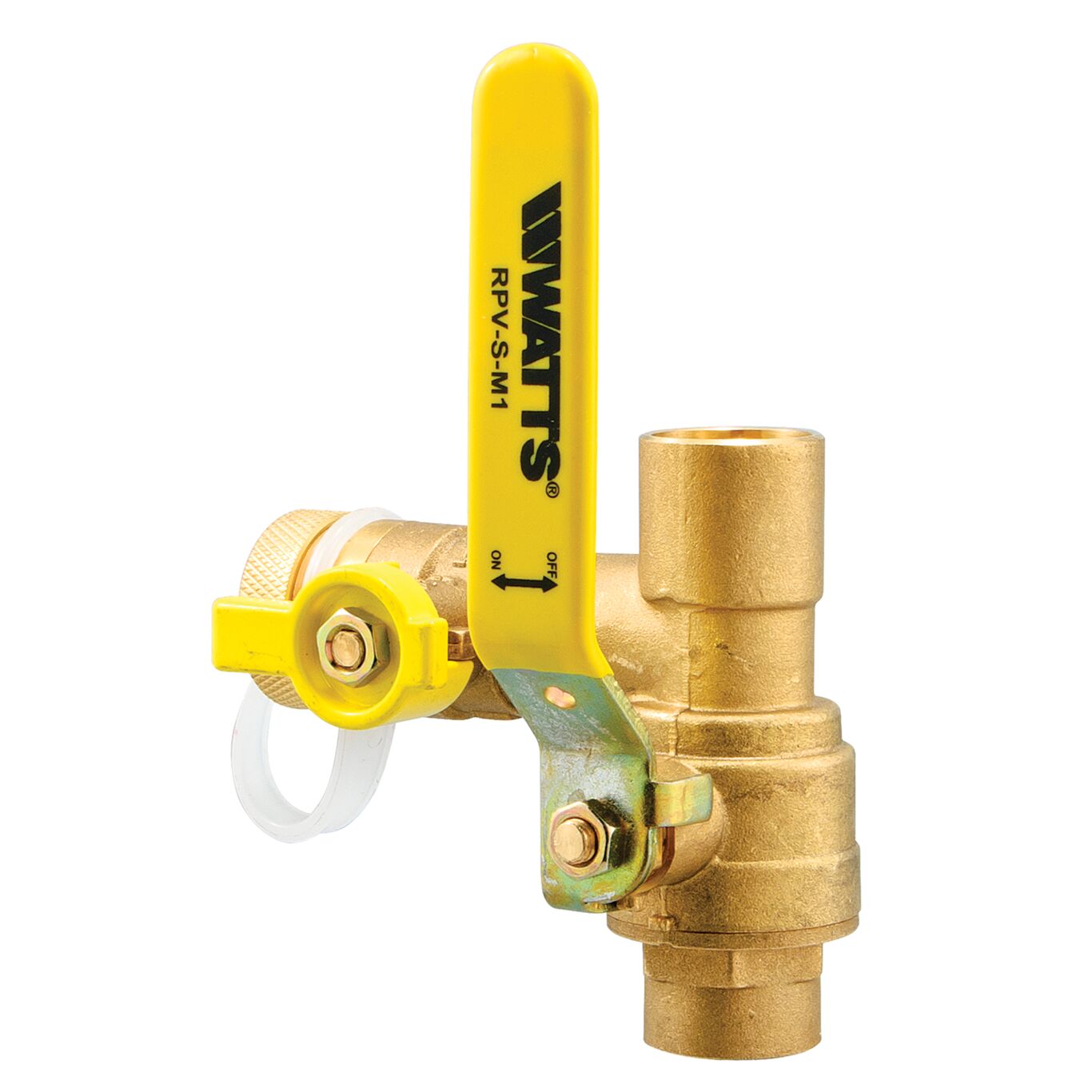

This 1 inch residential purge and balancing valve is used in heating applications to facilitate removal of air from heating zones on initial fill and to control water flow through a circulation loop. It also serves as a shutoff valve and a drain valve for each zone or loop. This valve consists of a one-piece brass body with brass drain, plated brass ball, virgin PTFE seats, hose thread connection for purging, iron handle, and sweat end connections. It provides high volume purging, accurate balancing, a positive drip-tight shutoff and is ideal for use in hydronic heating loops. The maximum working pressure is 50 psi (344.8kPa).

Product Features

  • 1/2 IN purge port
  • Sweat connections
  • Full port ball valve
  • Tethered purge port cap
Specifications
Body Material Brass
Brand Name Watts
Inlet Connection Size 1 IN
Inlet Connection Type Socket
Lead Free Not In Scope
Outlet Connection Size 1 IN
Outlet Connection Type Socket
