WIB-81-250 1

Part of the WIB Series

Ordering Code: 0039523

UPC: 098268592627

Lead Free: Not In Scope

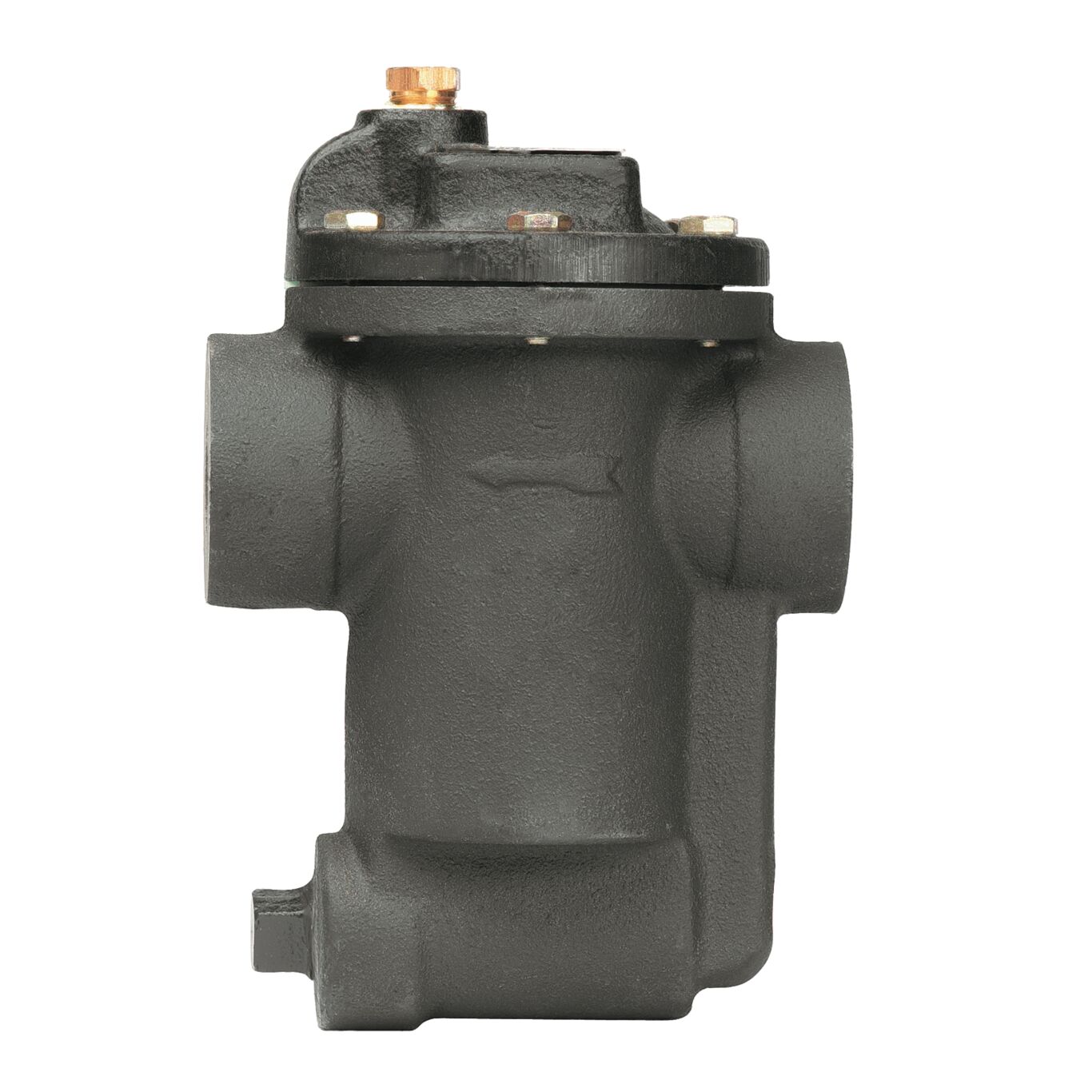

1 In Inverted Bucket Steam Trap, 250 psi

This 1 IN inverted bucket steam trap is used in steam main and process applications to provide reliable condensate removal. It features an iron body, stainless steel bucket and linkage, stainless steel valve and seat and non-asbestos cover gasket. It is water hammer resistant and drains condensate at saturation temperatures. Operating pressure is 250 psi.

Product Features

  • Cover gasket
  • Test and drain plug
  • Stainless steel valve and seat
  • Cast iron body and cover
Air Venting No Vent
Body Material Cast Iron
Body Pattern Inline
Brand Name Watts
Hydronic Item Type Steam Trap
Inlet Connection Size 1 IN
Inlet Connection Size-Metric 25 MM
Inlet Connection Type Female Threaded
Inlet Thread Type NPT
Lead Free Not In Scope
Maximum Pressure-PSI 250
Maximum Steam Pressure-PSI 250
Maximum Temperature-Fahrenheit 406
Maximum Working Pressure-PSI 250
Model Number WIB-81-250 1
Outlet Connection Size 1 IN
Outlet Connection Type Female Threaded
Outlet Thread Type NPT
Part Number 0039523
Series WIB
