LFMMVM1-CEF 3/4

Part of the LFMMV Series

Ordering Code: 6551632

UPC: 098268338928

Lead Free: YES

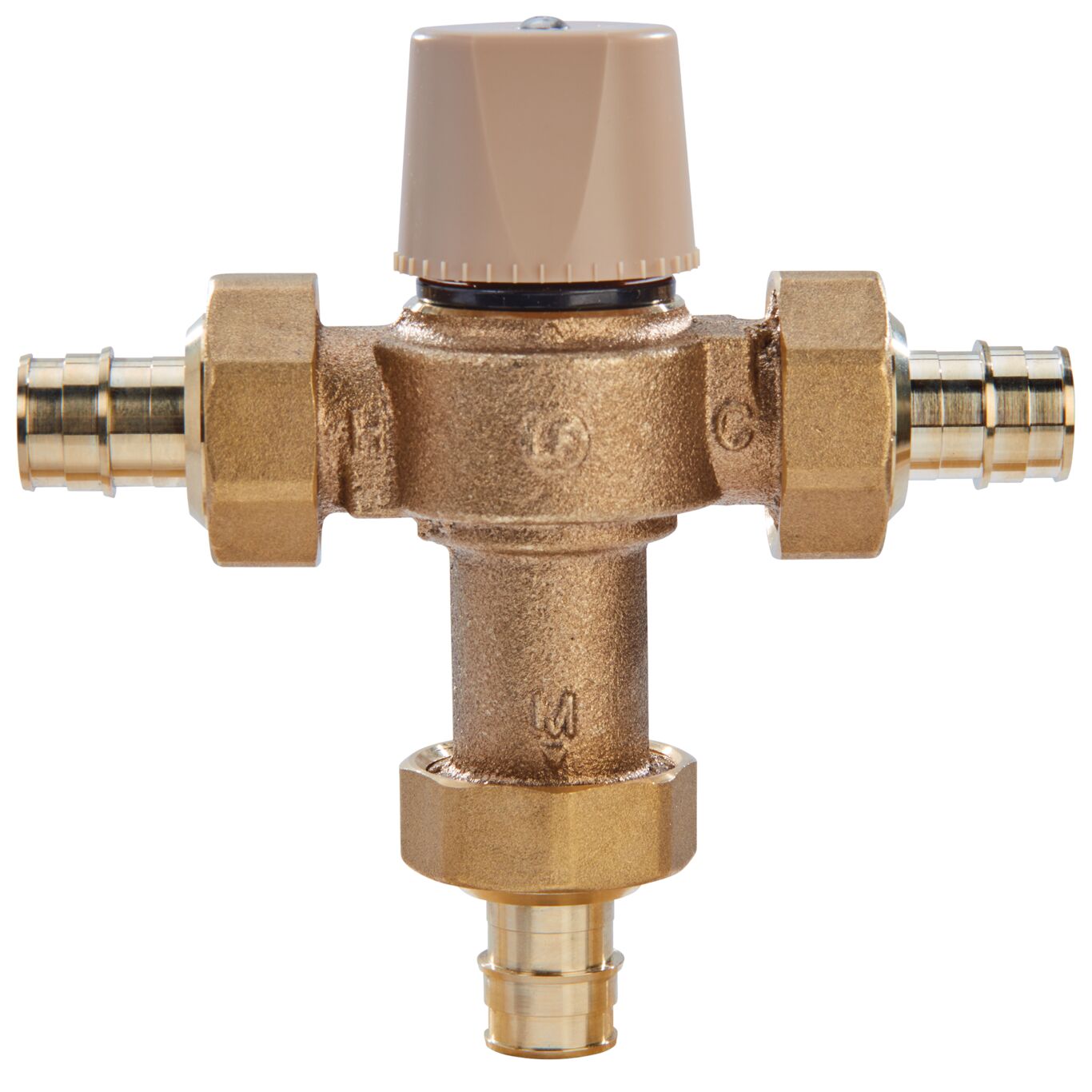

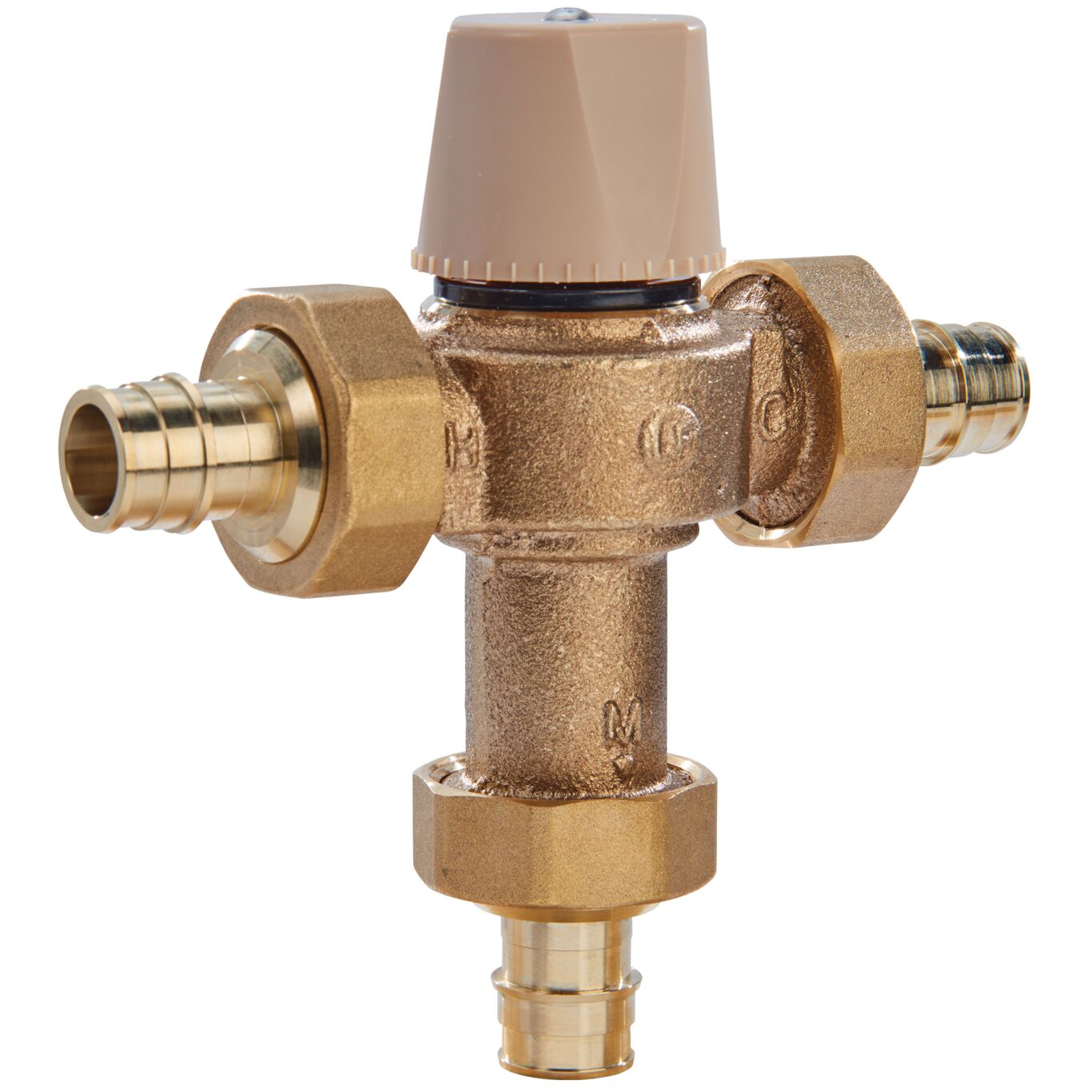

3/4 IN Lead Free Thermostatic Mixing Valve, Cold Expansion Fitting CEF/PEX F1960 End Connections, Adjustable Out 80-120 F

  • Lead free brass construction
  • Thermal actuation technology for precise temperature control
  • Locking mechanism secures temperature setting
  • ASSE 1017, ASSE 1069, ASSE 1070 certified, IAPMO cUPC certified, approved to CSA B125.3 and B125.70
Specifications
Body Finish Rough Bronze
Body Material Lead Free Copper Silicon Alloy
Brand Watts
Capacity 20 GPM at 125 PSI
Cold Inlet Temperature Range 39 to 85 degree F
Cold Water Bypass No
Cold Water Inlet Connection Size 3/4 IN
Cold Water Inlet Connection Type Union Pex Expansion
Cold Water Inlet Thread Type Does Not Apply To Product
EAN 098268338928
Factory Set Temperature-Fahrenheit 105
Flow Rate 0.5 to 20 GPM
Hot Inlet Temperature Range 120 to 180 degree F
Hot Water Inlet Connection Size 3/4 IN
Hot Water Inlet Connection Type Union Pex Expansion
Hot Water Inlet Thread Type Does Not Apply To Product
Lead Free YES
Maximum Pressure Differential 25 Percent
Maximum Working Pressure-PSI 150
Minimum Differential Temperature-Fahrenheit 5
Minimum Static Pressure-PSI 30
Outlet Connection Size 3/4 IN
Outlet Connection Size-Metric Does Not Apply To Product
Outlet Connection Type Union Pex Expansion
Outlet Temperature Accuracy +/- 3 degree F
Outlet Thread Type Does Not Apply To Product
Part Number 6551632
Series LFMMV
Temperature Adjustment Range 80 to 120 degree F
Wi-Fi Enabled No
