150A-HA 3/4

Discontinued - Replaced By: LF150A-HA 3/4

Part of the 150A Series

Ordering Code: 0269508

UPC: 098268012767

Lead Free Model Available

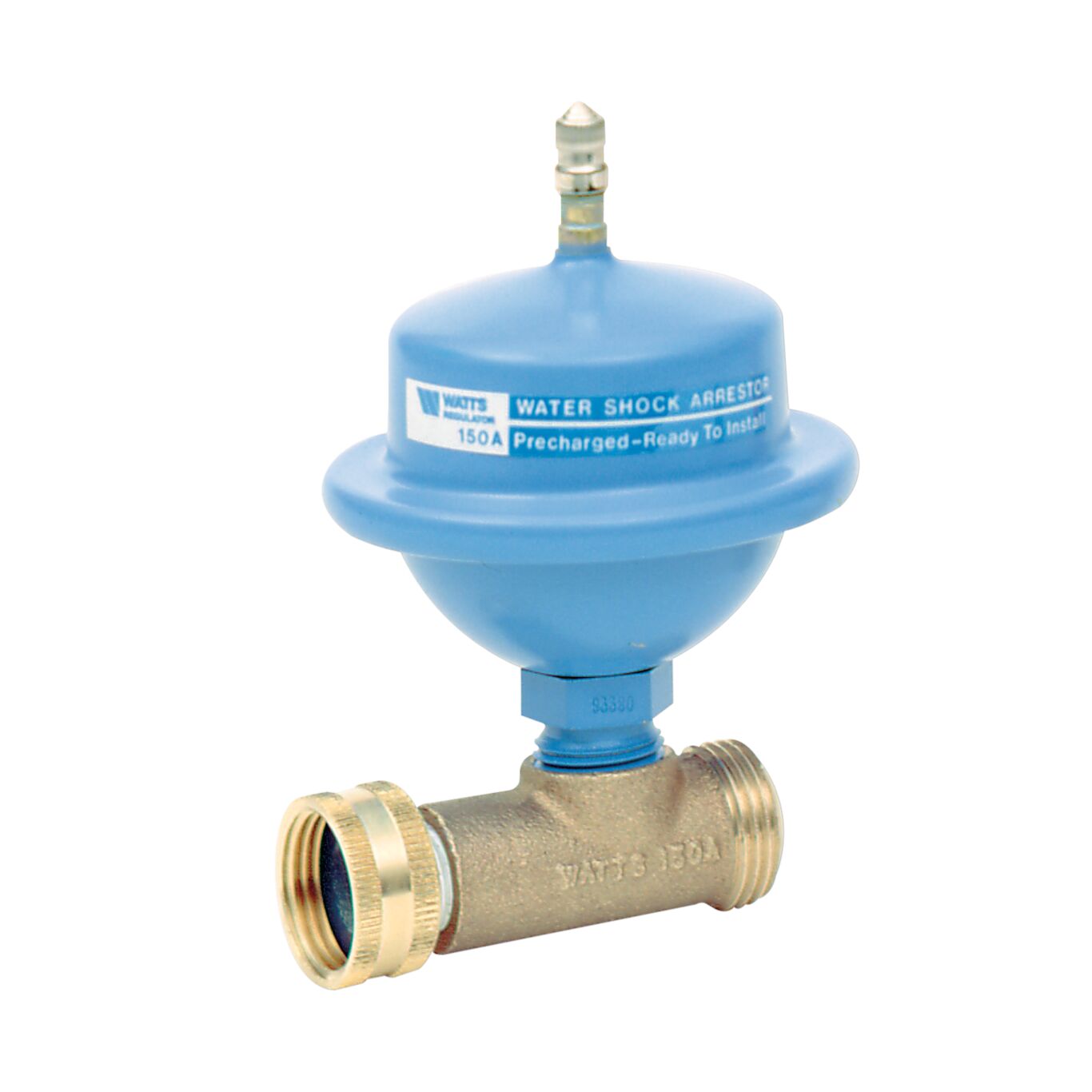

3/4 In Water Hammer Arrestor With Hose Thread Adapter

This 3/4 inch water hammer arrestor with hose thread adapter provides economical and effective single fixture protection used in residential water system applications such as washing machines applications. It is designed to control the water pressure shock and prevent water hammer conditions that are damaging to pipes and appliances. It consists of a stainless steel top and lower chamber, sealed-in diaphragm which flexes to absorb the shock, and a brass hex adapter with attached 3/4 inch hose thread adapter for direct mounting to a washing machine shutoff valve. This water hammer arrestor may be installed in new or existing plumbing systems vertically, horizontally or at any angle and should be installed as close to the shock source as possible, with one unit for each hot and cold water lines up to 150 psi (10.6 bar) working pressure. It is factory air charged at 30 psi (207 kPa) and is easily rechargeable with a standard tire valve connection and air-tight sealing cap.

Product Features

  • Unit is factory pre-charged to 30 psi (207 kPa)
  • Molded diaphragm with a special thermo plastic coating to prevent rust
  • Can be installed vertically, horizontally or any angle in concealed locations without access panels
  • May be installed at any angle
  • Includes 3/4 IN hose thread adapter
Air Precharge 60 PSI
Air Valve No
Body Material Stainless Steel
Brand Name Watts
Connection Size 3/4 IN
Connection Size-Metric 20 MM
Connection Type Male Threaded
Factory Set Pressure-PSI 30
Lead Free NO
Maximum Operating Temperature-Celsius 82.00
Maximum Operating Temperature-Fahrenheit 180
Maximum Working Pressure-BAR 10.00
Maximum Working Pressure-PSI 150
Minimum Temperature - Celsius 0.50
Minimum Temperature-Fahrenheit 33
Model Number 150A-HA 3/4
Part Number 0269508
Product Overall Height 4.3125 IN
Product Overall Width 3.40625 IN
Series 150A
Temperature Range 33 to 180 degree F
Thread Type GHT
