LFN45BM1-DU-S-EZ 3/4

Part of the LFN45B-EZ Series

Ordering Code: 0009483

UPC: 098268332483

Lead Free: YES

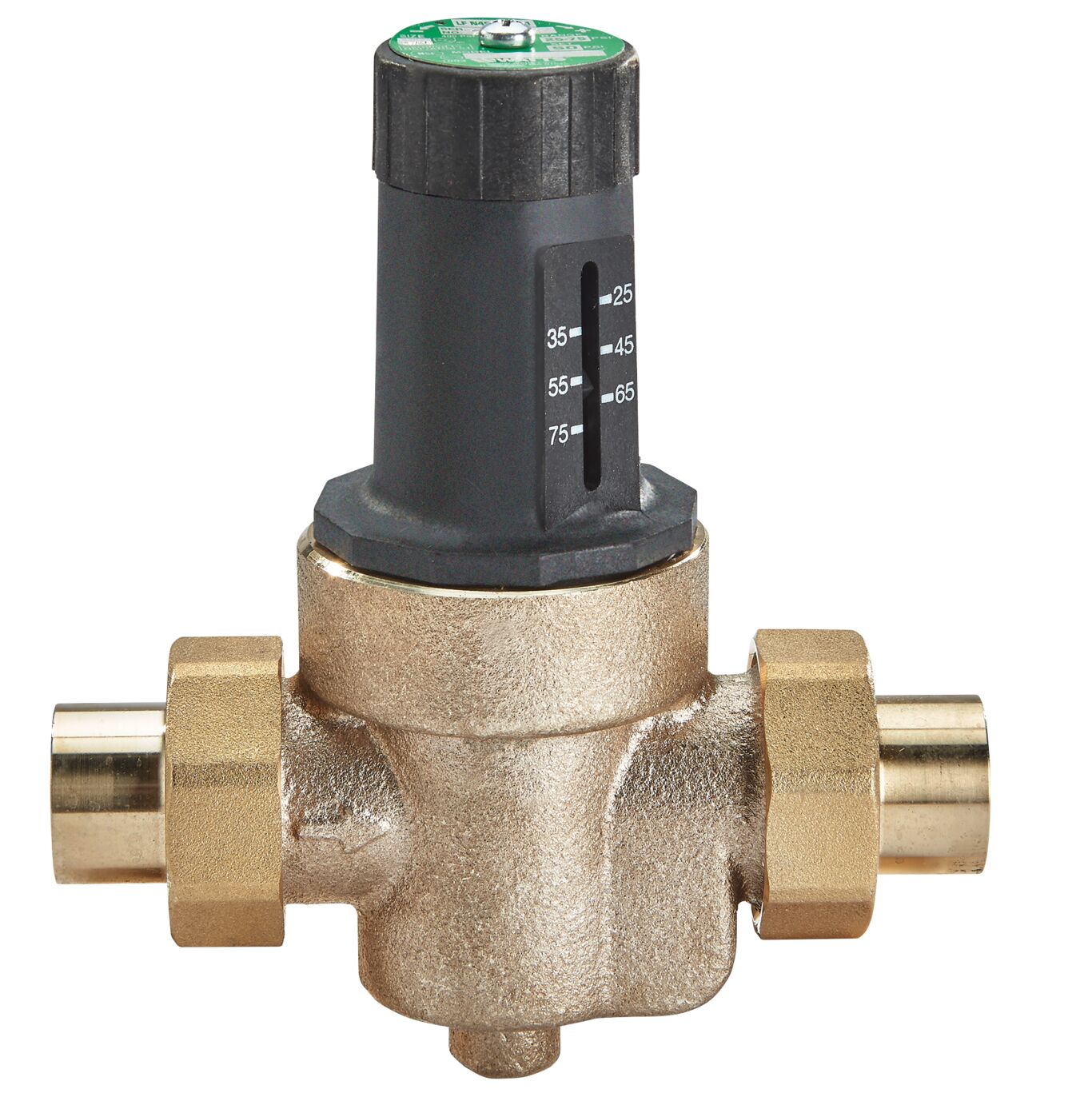

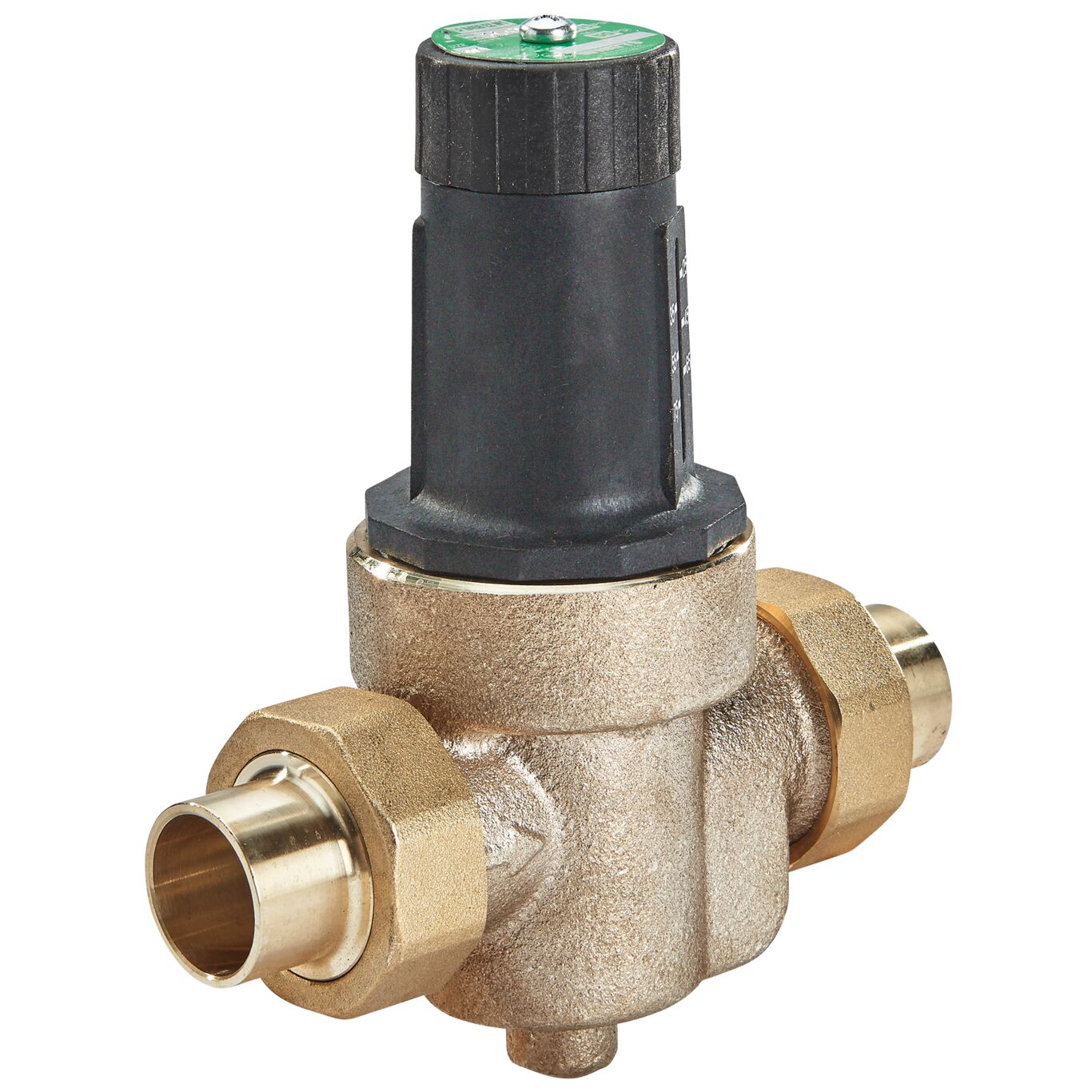

3/4 IN Lead Free Water Pressure Reducing Valve, Double Union, Solder Union Inlet/Outlet, Adjust 25-75 psi, Factory Calibrated

  • Easy to adjust pressure setting
  • Bypass feature controls thermal expansion pressure
  • Integral stainless steel strainer to stop debris
  • Parts are easily and quickly serviceable without removing valve from line
Specifications
Adjustable Reduced Pressure Range 25 to 75
Adjustable Reduced Pressure Range-BAR 1.8 to 5.2
Body Material Lead Free Copper Silicon Alloy
Brand Watts
Corrosion Resistant Coating Yes
Disc Material Elastomer
EAN 098268332483
Gauge Option No Gauge
High Pressure Reduced Pressure Range Does Not Apply To Product
High Pressure Reduced Pressure Setting Does Not Apply To Product
Inlet Connection Size 3/4 IN
Inlet Connection Type Union Solder
Inlet Thread Type NPT
Lead Free YES
Maximum Operating Temperature-Fahrenheit 180
Maximum Working Pressure-BAR 27.60
Maximum Working Pressure-PSI 400
Minimum Temperature - Celsius 0.50
Minimum Temperature-Fahrenheit 33
Outlet Connection Size 3/4 IN
Outlet Connection Type Union Solder
Outlet Thread Type NPT
Part Number 0009483
Series LFN45B-EZ
Standard Reduced Pressure Setting-BAR 3.40
Standard Reduced Pressure Setting-PSI 50
Strainer Yes
Strainer Material Stainless Steel
Thermal Expansion Bypass Yes
Trim Material Engineered Composite
Valve Style Standard
