2300 30-80 4 Watts

Part of the 2300 Series

Ordering Code: 0681060

UPC: 098268086867

Lead Free: YES

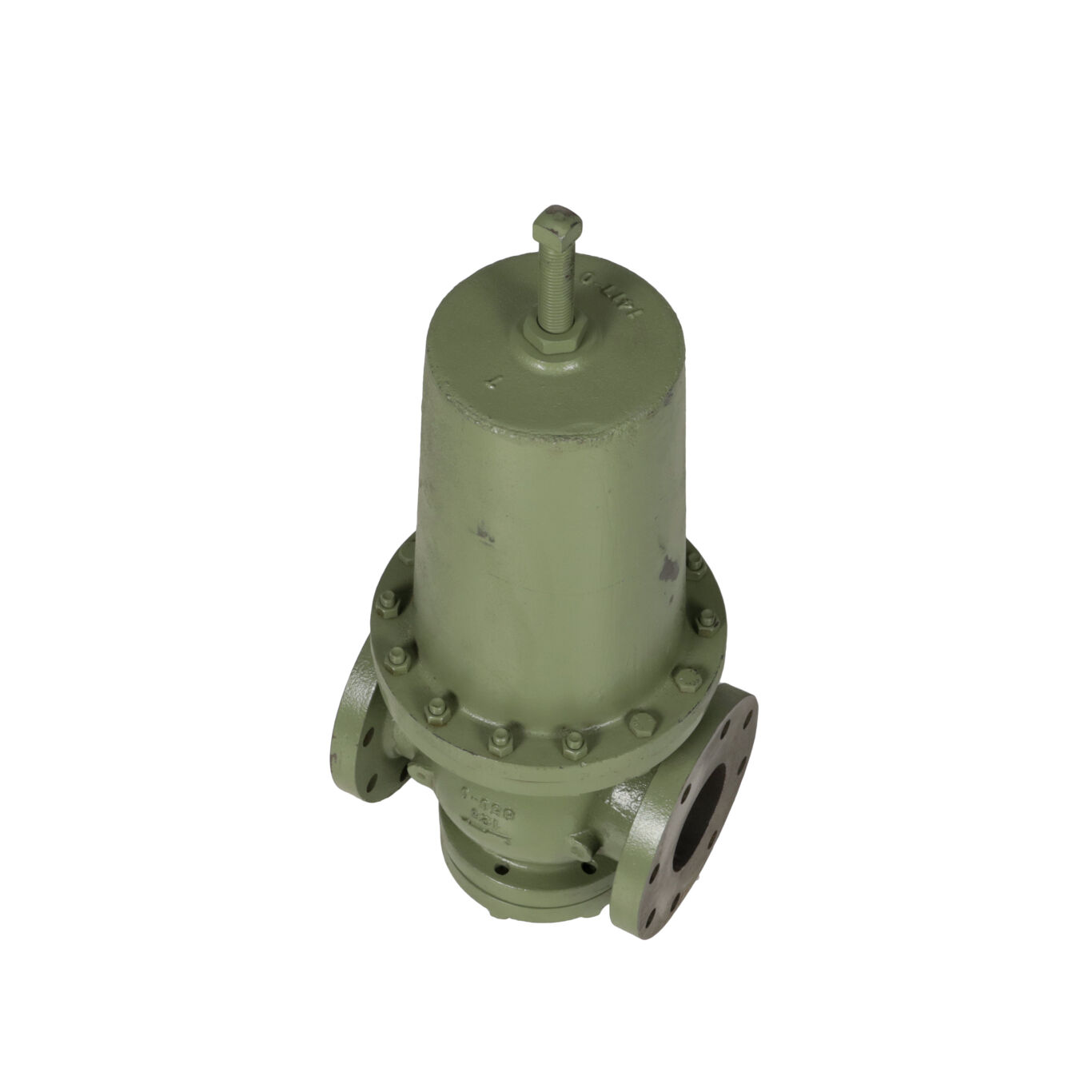

4 In Cast Iron Direct Operated Water Pressure Reducing Valve

This 4 IN direct operated water pressure reducing valve, series 2300, is used in commercial and industrial applications to regulate the flow of water to dead-end services where the flow is intermittent and changes rapidly, such as to flushometers, snap cocks, and for locations where city water pressure needs to be reduced to supply plumbing fixtures. It consists of an iron body construction with bronze trim, Hycar composition disc, piston, Hycar diaphragm, tempered steel spring, and a single seat. It is self-contained, self-aligning, and in-line serviceable with all internal parts accessible. The pressure-balanced design eliminates water hammer, pressure fluctuations, and pressure creep. It is ideal for use in industrial plants for washrooms and processing operations, apartment buildings, hotels, office buildings, hospitals, municipal and plant water mains. Maximum pressure is 200 PSI (14 BAR). Reduced pressure range is 30 to 80 PSI (207 to 552 kPa).

Product Features

  • For dead end service where supply flow is intermittent and changes rapidly such as flush valve service
  • Cast iron body construction
  • Designed to close against flow for smooth operation
  • Hycar diaphragm and disc ensures responsive service and long service life
Specifications
Body Material Cast Iron
BrandName Watts
Disc Material Hycar Composition
Inlet Connection Size 4 IN
Inlet Connection Type Flanged Joint
Inlet Thread Type Does Not Apply To Product
LeadFree YES
Maximum Operating Temperature-Fahrenheit 150
Maximum Working Pressure-BAR 13.80
Maximum Working Pressure-PSI 200
ModelNumber 2300 30-80 4
Outlet Connection Size 4 IN
Outlet Connection Type Flanged Joint
Outlet Thread Type Does Not Apply To Product
Part Number 0681060
Series 2300
Trim Material Stainless Steel
