26A-1-25 1/8

Discontinued - Replaced By: LF26A 1-25 1/8

Part of the 26A Series

Ordering Code: 0103179

UPC: 098268008685

Lead Free Model Available

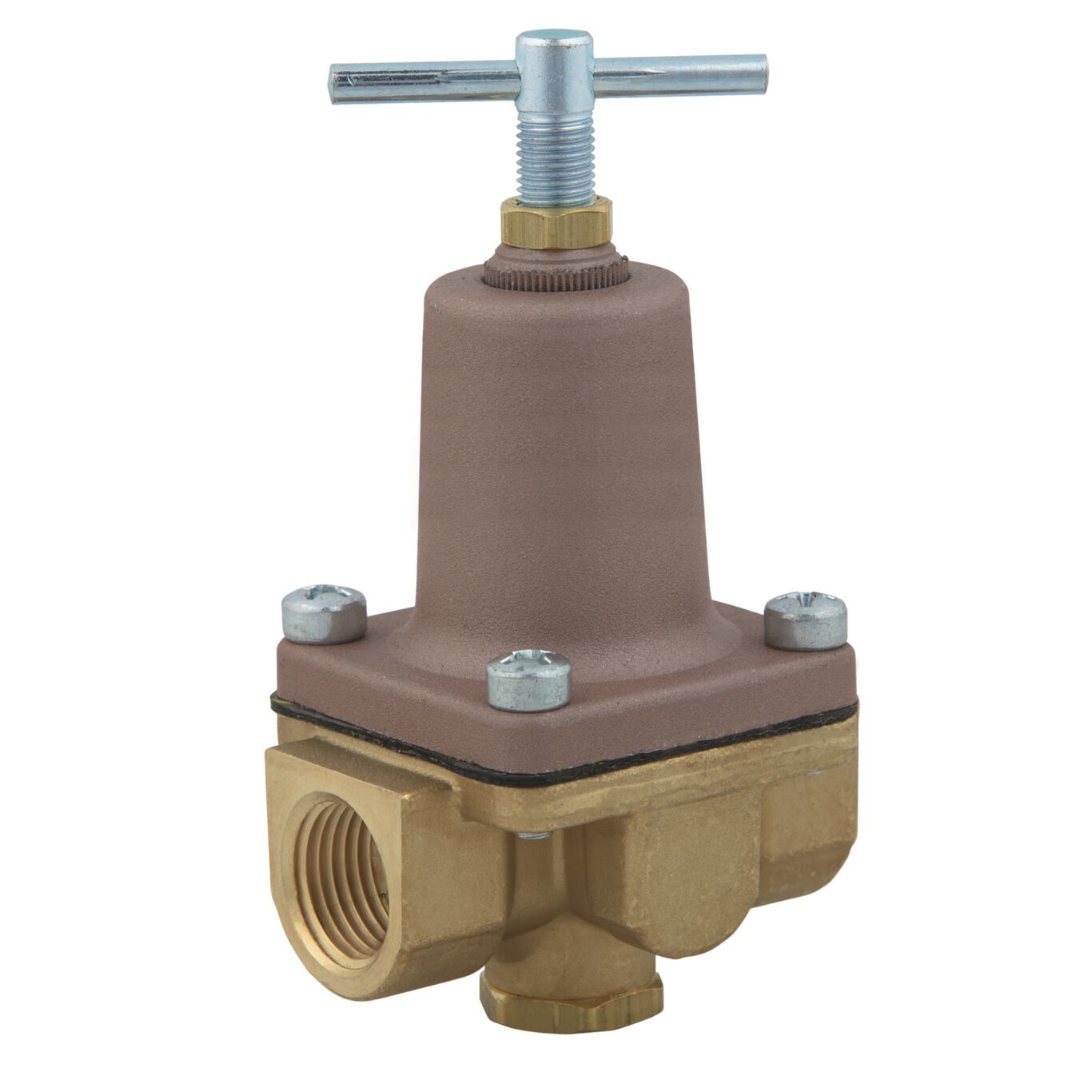

1/8 In Brass 2-Way Small Water Pressure Regulator, 1-25 psi

This 1/8 inch small water pressure regulator is used in small general purpose applications to regulate water pressure in piping systems using water and No. 2 fuel oil. It has an oversized orifice and is ideally used on beverage dispensing and paint spraying equipment, ice cube machines, humidifiers, drinking fountains, and other small process applications. It consists of a brass body with an adjusting tee handle, NPT threaded female connections, two way low-water pressure gauge port, aluminum spring cage, Buna-N stainless steel disc, and a reinforced Buna-N diaphragm. The temperature range is 0 to 140 degrees F (-18 to 60 degrees C). The reduced water pressure range is 1 to 25 psi (0.1 to 1.7 bar) and the water pressure is set at 10 psi (0.7 bar).

Product Features

  • NPT threaded female inlet and outlet connections
  • Maximum working pressure is 300 psi (21 bar)
  • Tee handle adjustment
  • Oversized orifice
  • Rugged forged brass body
  • 1/4 IN (8mm) low pressure gauge port
  • Temperature range is 0 to 140 degrees F (-18 to 60 degrees C)
Adjustable Reduced Pressure Range 1 to 25
Body Material Brass
Brand Name Watts
Corrosion Resistant Coating No
Disc Material Reinforced EPDM
Gauge Option No Gauge
Inlet Connection Size 1/8 IN
Inlet Connection Type Female Threaded
Inlet Thread Type NPT
Lead Free NO
Maximum Operating Temperature-Fahrenheit 140
Maximum Working Pressure-BAR 20.70
Maximum Working Pressure-PSI 300
Minimum Temperature - Celsius -18.00
Minimum Temperature-Fahrenheit 0
Model Number 26A-1-25 1/8
Outlet Connection Size 1/8 IN
Outlet Connection Type Female Threaded
Outlet Thread Type NPT
Part Number 0103179
Series 26A
Standard Reduced Pressure Setting-BAR 0.70
Standard Reduced Pressure Setting-PSI 10
Strainer No
Strainer Material Does Not Apply To Product
Thermal Expansion Bypass No
Trim Material Does Not Apply To Product
Type Kit
Valve Style 2-way
