LF25AUB-LP-Z3 1/2

Part of the LF25AUB-Z3 Series

Ordering Code: 0009236

UPC: 098268329414

Lead Free: YES

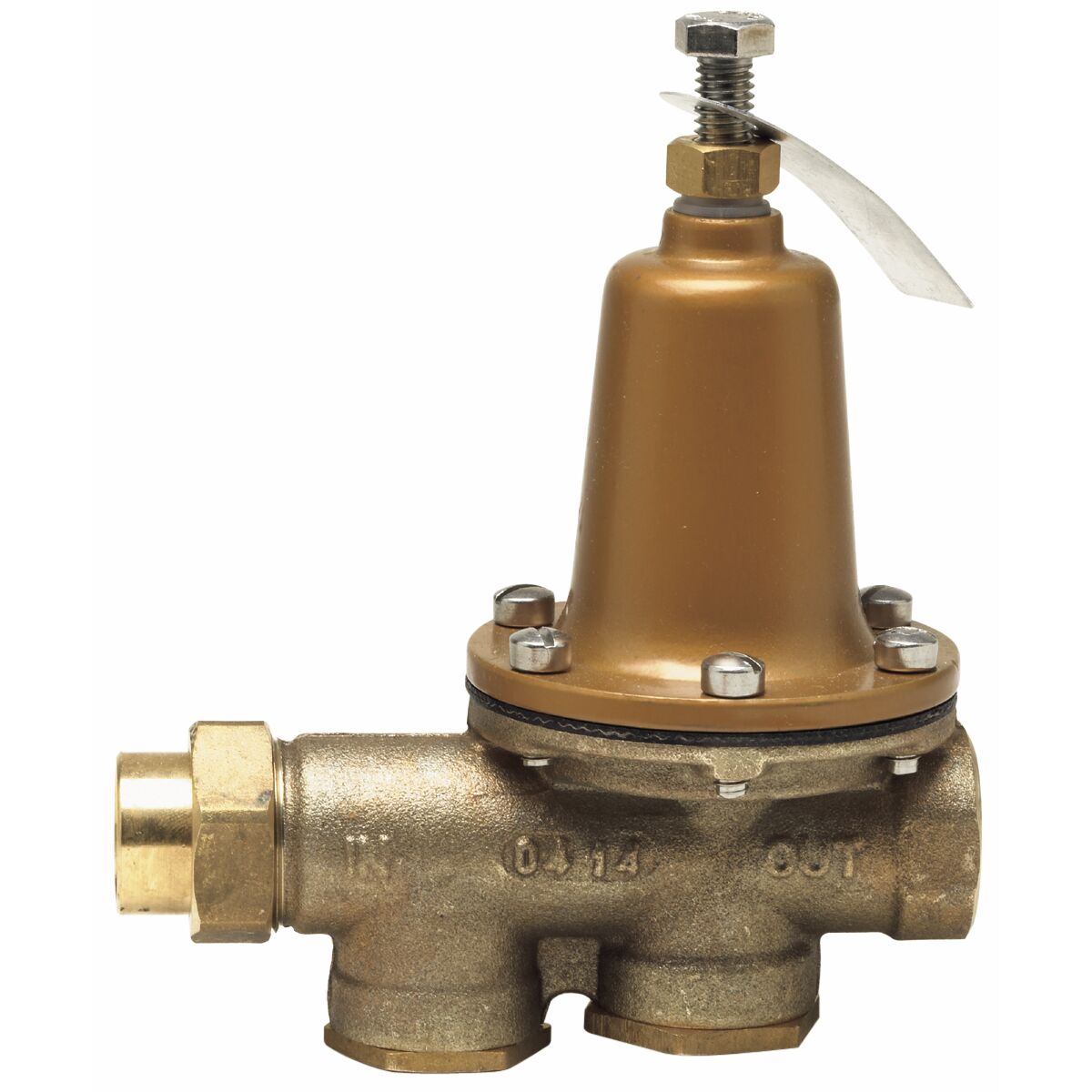

1/2 In Lead Free Water Pressure Reducing Valve, Npt Female Union X Npt Female, Polymer Seat, Low Range 10-35 Psi

This 1/2 inch lead free brass water pressure reducing valve for low pressure ranges is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, NPT threaded female union inlet by NPT female outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C). The low pressure range is 10 to 35 PSI (69 to 241 kPa) with the standard setting at 30 PSI (207 kPa).

Product Features

  • Sealed spring cage with stainless steel cage screws
  • Replaceable seat module
  • Low pressure applications
  • Integral stainless steel strainer removable for cleaning
Specifications
Adjustable Reduced Pressure Range 10 to 35
Adjustable Reduced Pressure Range-BAR 0.7 to 2.4
Body Material Lead Free Copper Silicon Alloy
BrandName Watts
Corrosion Resistant Coating Yes
Disc Material EPDM
Gauge Option No Gauge
High Pressure Reduced Pressure Range Does Not Apply To Product
High Pressure Reduced Pressure Setting Does Not Apply To Product
Inlet Connection Size 1/2 IN
Inlet Connection Type Female Threaded
Inlet Thread Type NPT
LeadFree YES
Maximum Operating Temperature-Fahrenheit 180
Maximum Working Pressure-BAR 20.70
Maximum Working Pressure-PSI 300
Minimum Temperature-Fahrenheit 33
ModelNumber LF25AUB-LP-Z3 1/2
Outlet Connection Size 1/2 IN
Outlet Connection Type Female Threaded
Outlet Thread Type NPT
Part Number 0009236
Series LF25AUB-Z3
Standard Reduced Pressure Setting-BAR 3.40
Standard Reduced Pressure Setting-PSI 50
Strainer Yes
Strainer Material Stainless Steel
Thermal Expansion Bypass Yes
Trim Material Bronze
Valve Style Standard
