LF25AUB-S-DU-G-Z3 1 Watts

Part of the LF25AUB-Z3 Series

Ordering Code: 0009334

UPC: 098268330755

Lead Free: YES

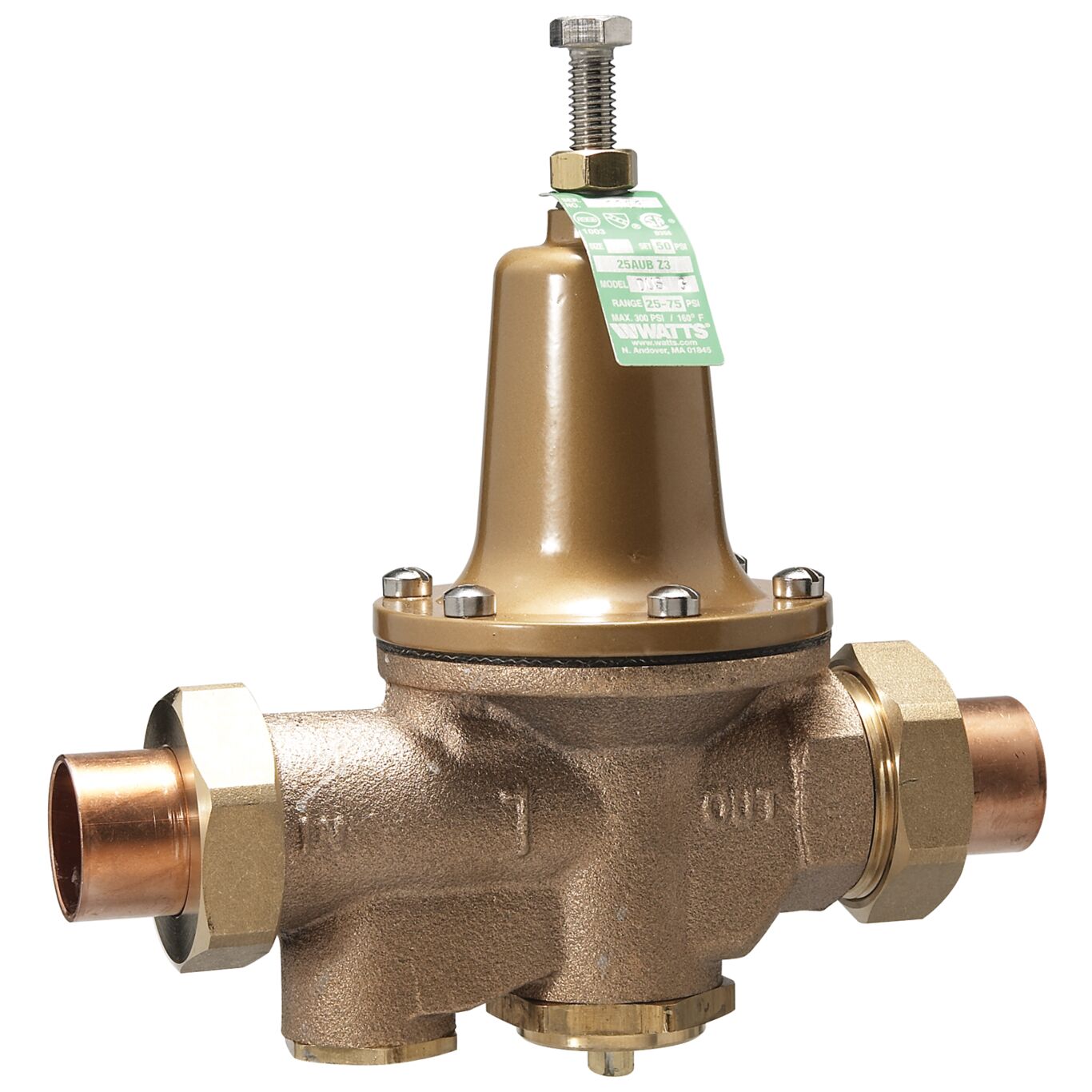

1 In Lead Free Water Pressure Reducing Valve, Double Union, Solder, Polymer Seat, Gauge Tapping, Adjustable 25-75 Psi

This 1 inch lead free brass water pressure reducing valve is equipped with gauge tapping. It is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, solder union inlet and outlet connections and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C). Suitable for up to 300 PSI (20.7 BAR), the pressure range can be adjusted from 25 to 75 PSI (172 to 517 kPa) with the standard setting at 50 PSI (345 kPa).

Product Features

  • Bypass feature controls thermal expansion pressure
  • Replaceable seat module
  • Sealed spring cage with stainless steel cage screws
  • Integral stainless steel strainer removable for cleaning
Specifications
Adjustable Reduced Pressure Range 25 to 75
Adjustable Reduced Pressure Range-BAR 1.8 to 5.2
Body Material Lead Free Copper Silicon Alloy
BrandName Watts
Corrosion Resistant Coating Yes
Disc Material EPDM
Gauge Option Gauge Tapping
High Pressure Reduced Pressure Range Does Not Apply To Product
High Pressure Reduced Pressure Setting Does Not Apply To Product
Inlet Connection Size 1 IN
Inlet Connection Type Socket
Inlet Thread Type Does Not Apply To Product
LeadFree YES
Maximum Operating Temperature-Fahrenheit 160
Maximum Working Pressure-BAR 20.70
Maximum Working Pressure-PSI 300
Minimum Temperature-Fahrenheit 33
ModelNumber LF25AUB-S-DU-G-Z3 1
Outlet Connection Size 1 IN
Outlet Connection Type Socket
Outlet Thread Type Does Not Apply To Product
Part Number 0009334
Series LF25AUB-Z3
Standard Reduced Pressure Setting-BAR 3.40
Standard Reduced Pressure Setting-PSI 50
Strainer Yes
Strainer Material Stainless Steel
Thermal Expansion Bypass Yes
Trim Material Bronze
Valve Style Standard
