LFN45BM1-DU-CEF 1/2

Part of the LFN45B Series

Ordering Code: 88009128

UPC: 098268288780

Lead Free: YES

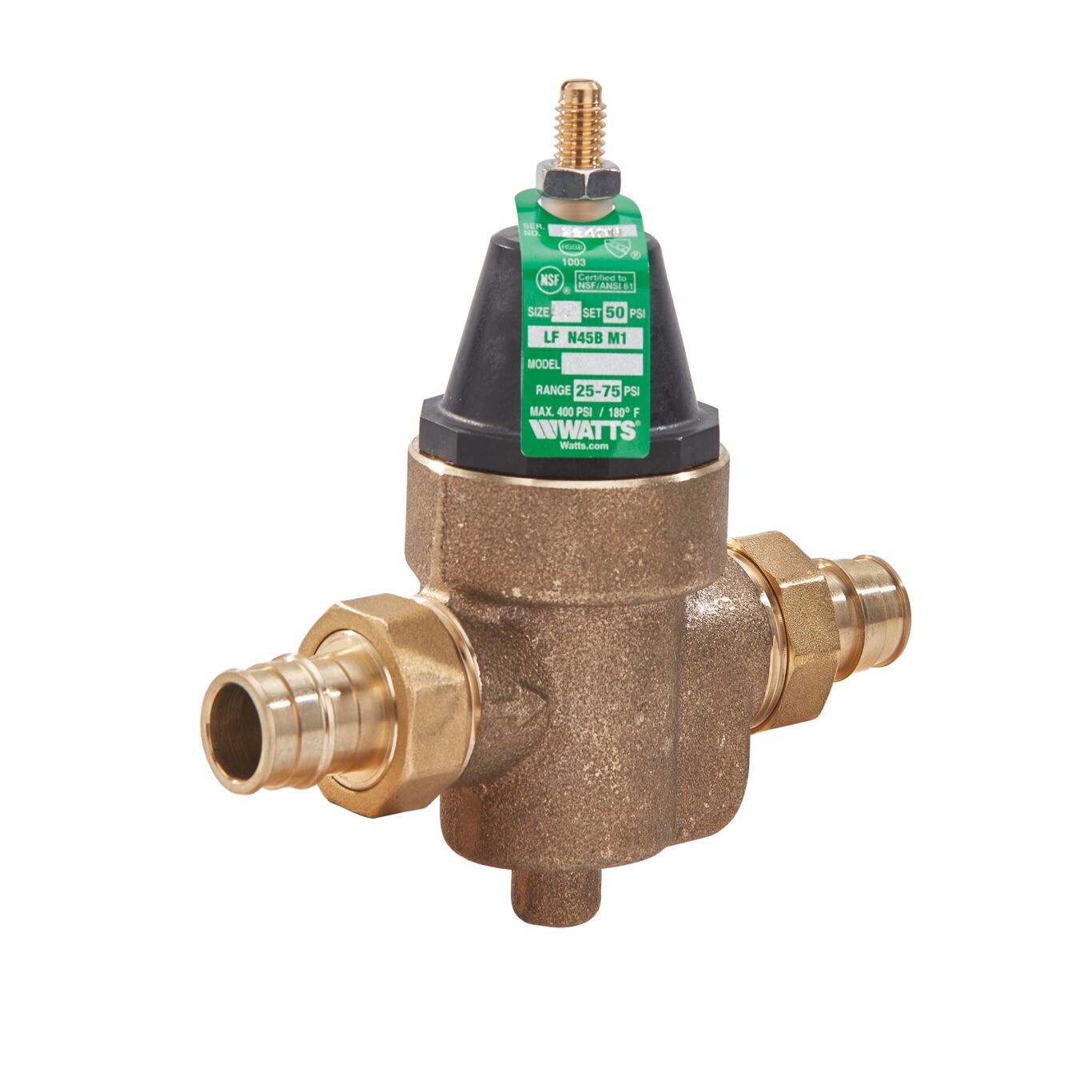

1/2 IN Lead Free Water Pressure Reducing Valve, Double Union, PEX CEF Fittings, Elastomer Disc, Max 400 psi, Adjust 25-75 psi

  • Double unions, PEX cold expansion fittings
  • Integral stainless steel strainer removable for cleaning
  • Thermoplastic seat and cage
  • Sealed spring cage for accessible outdoor or pit installations
Specifications
Adjustable Reduced Pressure Range 25 to 75
Adjustable Reduced Pressure Range-BAR 1.7 to 5.2
Body Material Lead Free Cast Copper Silicon Alloy
Brand Watts
Corrosion Resistant Coating No
Disc Material Elastomer
EAN 098268288780
Gauge Option No Gauge
High Pressure Reduced Pressure Range Does Not Apply To Product
High Pressure Reduced Pressure Setting Does Not Apply To Product
Inlet Connection Size 1/2 IN
Inlet Connection Type Union Pex Expansion
Inlet Thread Type Does Not Apply To Product
Lead Free YES
Maximum Operating Temperature-Fahrenheit 180
Maximum Working Pressure-BAR 27.60
Maximum Working Pressure-PSI 400
Minimum Temperature - Celsius 0.50
Minimum Temperature-Fahrenheit 33
Outlet Connection Size 1/2 IN
Outlet Connection Type Union Pex Expansion
Outlet Thread Type Does Not Apply To Product
Part Number 88009128
Series LFN45B
Standard Reduced Pressure Setting-BAR 3.40
Standard Reduced Pressure Setting-PSI 50
Strainer Yes
Strainer Material Stainless Steel
Thermal Expansion Bypass Yes
Trim Material Does Not Apply To Product
Valve Style Standard
