740 65 3/4

Part of the 740 Series

Ordering Code: 0382394

UPC: 098268018929

Lead Free: Not In Scope

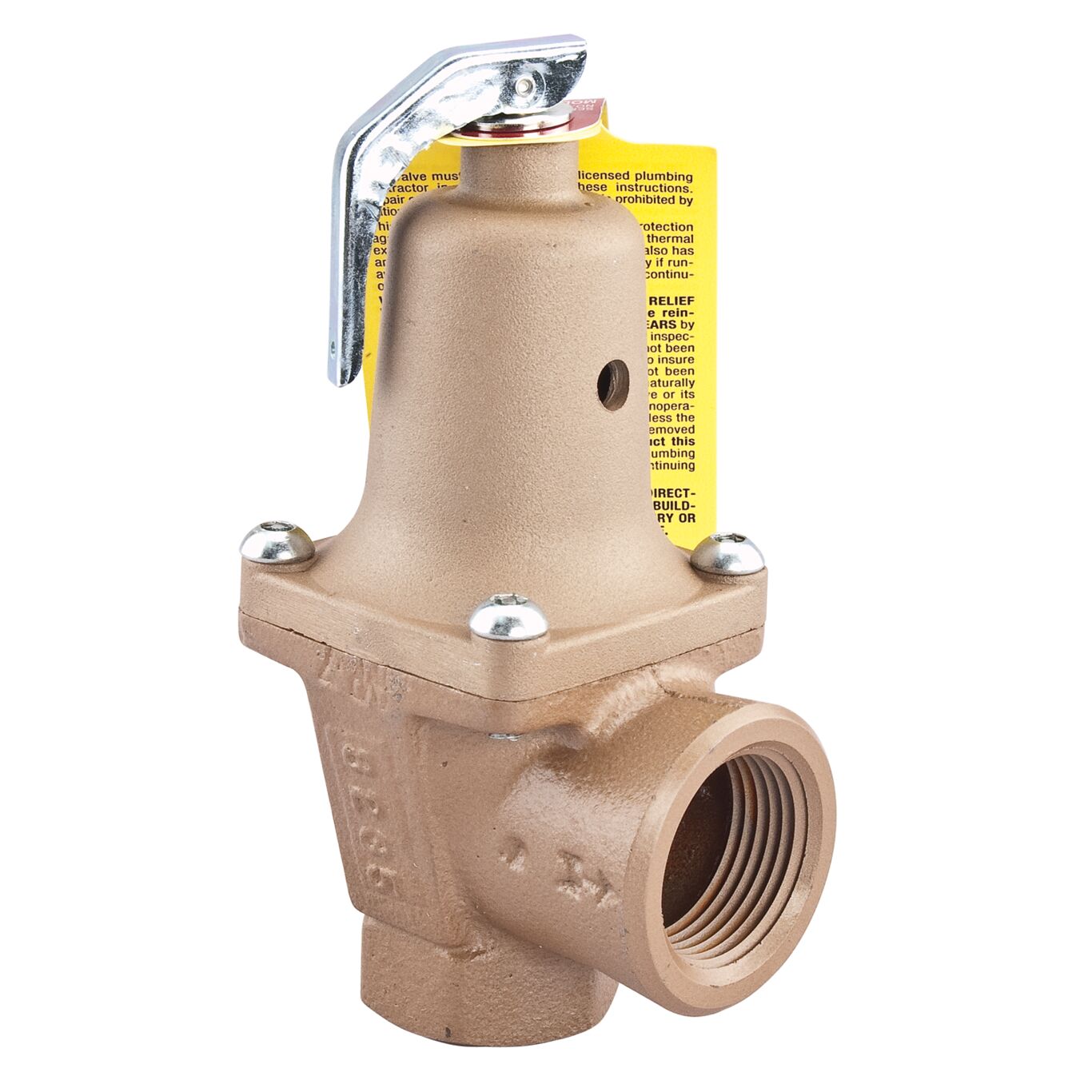

3/4 In Iron Boiler Pressure Relief Valve, 65 Psi, Expanded Outlets

This 3/4 inch boiler pressure relief valve is used in hot water space heating boiler applications to protect against excessive pressure on all types of hot water space heating boiler equipment. It consists of a iron body construction with expanded outlet drain connections for hot water space heating boilers, non-metallic disc-to-metal seating, stainless steel spring, and test lever. This valve offers large discharge capacity, resists corrosive water conditions, resists sticking and freezing, and prevents water and sediment from being trapped in the seat. It is designed for emergency safety relief and shall not be used as an operating control. Pressure is set at 65 PSI (4.58 BAR) with corresponding BTU/hr ratings of 1,672,000.

Product Features

  • Soft seated
  • Spring loaded
  • Automatic reseating
  • Iron body
Specifications
Body Material Iron
BrandName Watts
GPM-When Relieved Does Not Apply to Product
Inlet Connection Size 3/4 IN
Inlet Connection Type Female Threaded
Inlet Thread Type NPT
LeadFree Not In Scope
Maximum Temperature-Fahrenheit 250
Maximum Working Pressure-PSI 49
ModelNumber 740 65 3/4
Outlet Connection Size 1 IN
Outlet Connection Type Female Threaded
Outlet Thread Type NPT
Part Number 0382394
Pressure Range 30 to 75 PSI
Pressure Relief Setting-PSI 65
Pressure Steam Discharge Capacity 1672000 BTU per hour at 65 PSI
Protection Type Pressure
Series 740
Shank Length Does Not Apply to Product
Temperature Steam Discharge Capacity Does Not Apply to Product
Thermostat Material Does Not Apply To Product
Thermostat Probe Length Does Not Apply to Product
