100XL-8-175210
Part of the 100XL Series
Ordering Code: 0066113
UPC: 098268007244

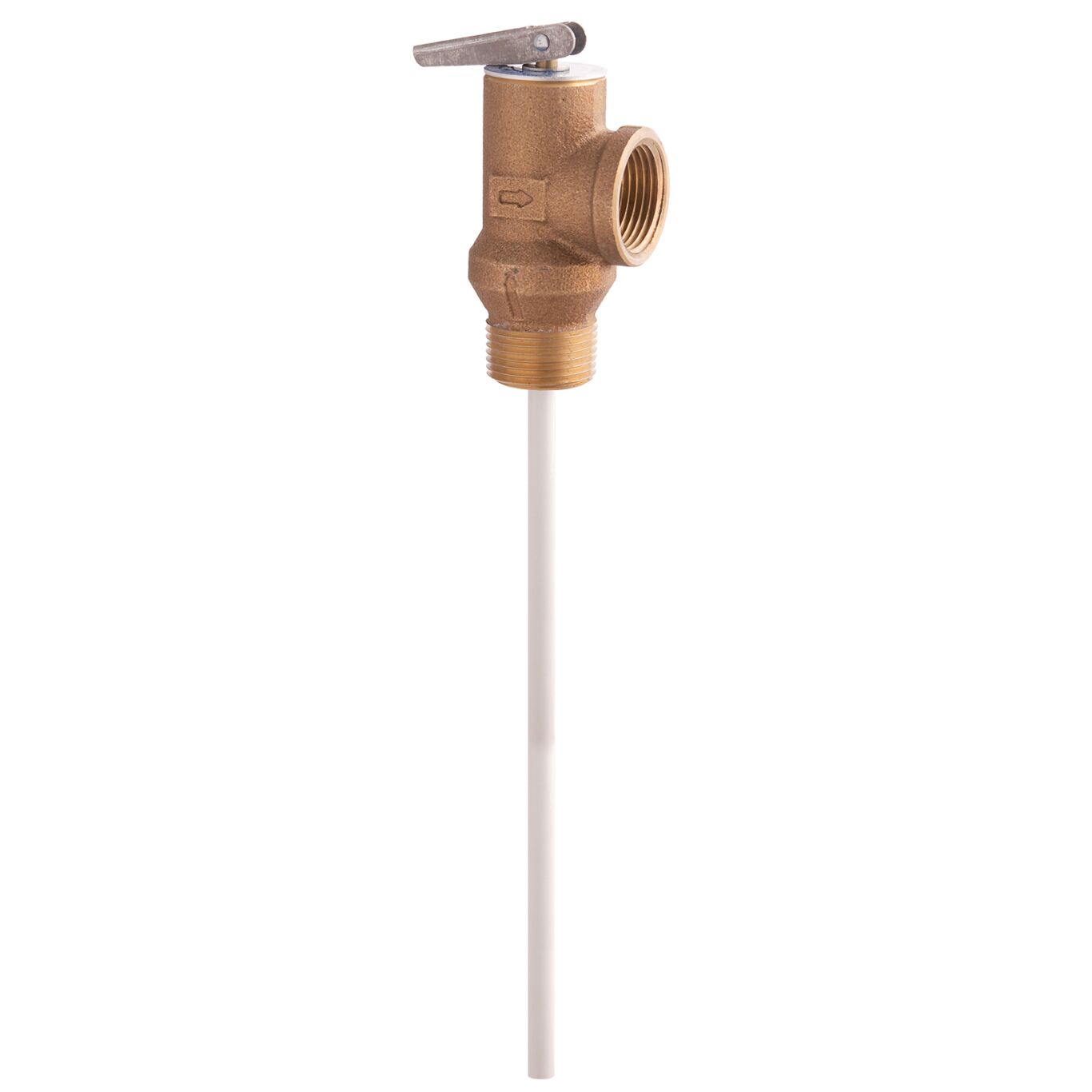

3/4 In Brass Self Closing Temperature And Pressure Relief Valve, 175 psi, 210 degree F, Test Lever, 8 In Extension Thermostat
Series 40L, 40XL Automatic Reseating Temperature and Pressure Relief Valves are used in commercial water heater applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters. They feature a brass body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating, tamper-resistant bonnet screws, automatic reseating feature, and test lever. Model 40L has a short thermostat for installation directly in available tank tapings. Model 40XL has an extension thermostat for installation in the hot water outlet within the allowable distance from the top of the tank. Series 40L, 40XL valves are ASME rated and CSA listed. Temperature Relief: 210?F (99?C), Pressure Range: 75 to 150psi (5.2 to 10.3 bar), Standard Pressure Settings: 75, 100, 125, or 150psi (5.27, 7.03, 8.79, or 10.55 bar).
Features
- Spring loaded
- Automatic reseating
- soft seated
- Bronze body
| Specifications | |
|---|---|
| Body Material | Brass |
| Brand | Watts |
| EAN | 098268007244 |
| Inlet Connection Size | 3/4 IN |
| Inlet Connection Type | Male Threaded |
| Inlet Thread Type | NPT |
| Lead Free | NO |
| Maximum Temperature-Fahrenheit | 210 |
| Maximum Working Pressure-PSI | 175 |
| Outlet Connection Size | 3/4 IN |
| Outlet Connection Type | Female Threaded |
| Outlet Thread Type | NPT |
| Part Number | 0066113 |
| Pressure Range | 75 to 150 PSI |
| Pressure Relief Setting-PSI | 175 |
| Pressure Steam Discharge Capacity | 105,000 BTU per hour |
| Protection Type | Temperature And Pressure |
| Series | 100XL |
| Shank Length | 1 1/8 IN |
| Temperature Relief-Fahrenheit | 210 |
| Temperature Steam Discharge Capacity | 105,000 BTU per hour |
| Thermostat Probe Length | 8 IN |
