140S3-150210 3/4

Part of the 140 Series

Ordering Code: 0254702

UPC: 098268012347

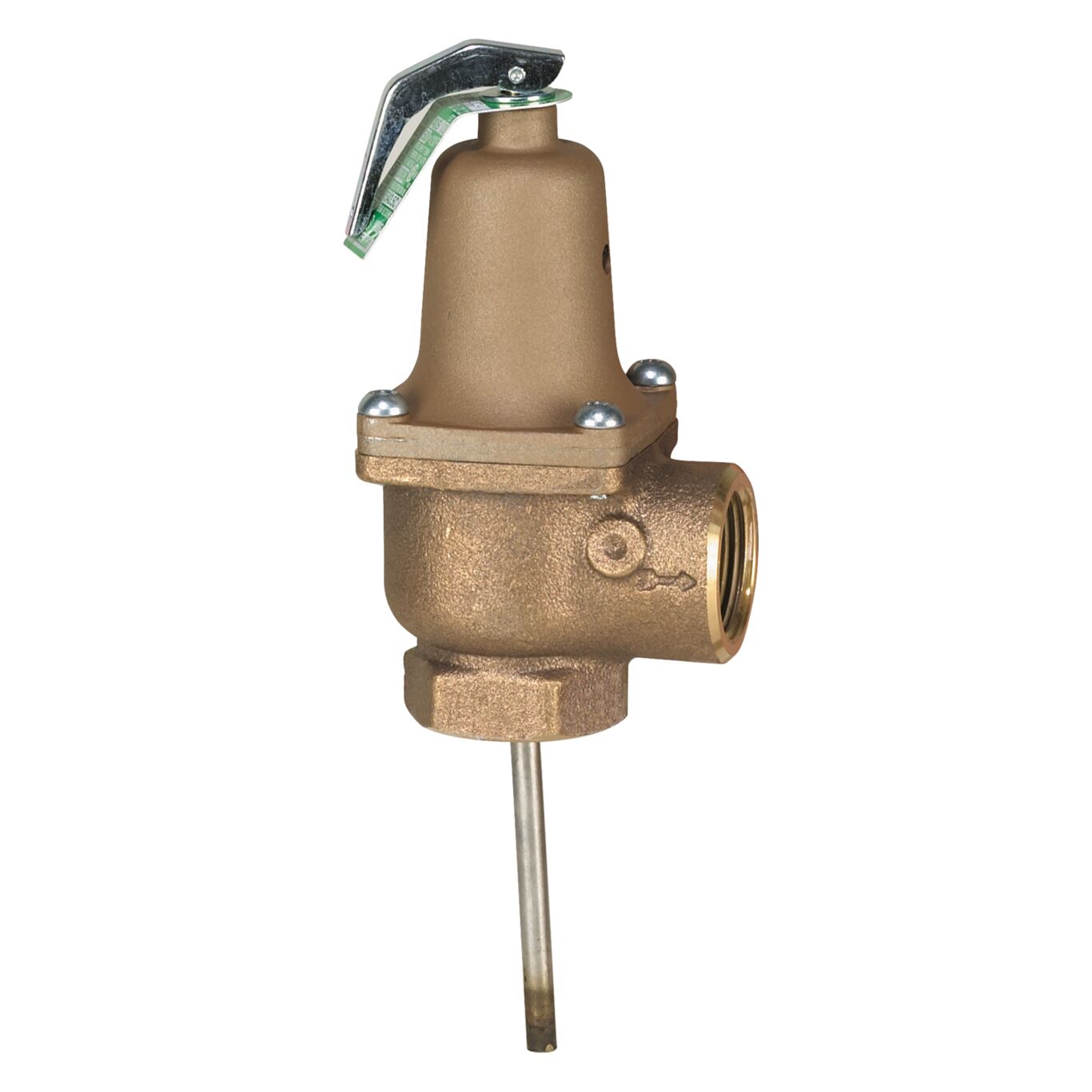

3/4 In Bronze Automatic Reseating Temp And Pressure Relief Valve, 150 psi, 210 degree F, 3 In Thermostat, Female Connections

This 3/4 inch bronze automatic reseating temperature and pressure relief valve with a 3 inch thermostat is installed directly in tank tapings and is used in commercial applications to provide automatic temperature and pressure protection for hot water supply tanks and hot water heaters. It features a bronze body with NPT female inlet and NPT female outlet connections, thermo-bonded coated thermostat, tamper resistant bonnet screws, automatic reseating feature, and test lever. The temperature relief is 210 degrees and the pressure relief is 150 psi.

Features

Thermo-bonded thermostat
Tamper resistant bonnet screws
3 Inch thermostat length
Non-mechanical seat to disc alignment

Specifications
Body Material	Bronze
Brand	Watts
Buy American Act Compliant	YES
EAN	098268012347
GPM-When Relieved	Does Not Apply to Product
Inlet Connection Size	3/4 IN
Inlet Connection Type	Female Threaded
Inlet Thread Type	NPT
Lead Free	NO
Maximum Temperature-Fahrenheit	210
Maximum Working Pressure-PSI	113
Outlet Connection Size	3/4 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	NPT
Part Number	0254702
Pressure Range	75 to 150 PSI
Pressure Relief Setting-PSI	150
Protection Type	Temperature And Pressure
Series	140
Shank Length	Does Not Apply To Product
Temperature Relief-Fahrenheit	210
Thermostat Material	Copper
Thermostat Probe Length	3 IN
