140X6-075210 1

Part of the 140 Series

Ordering Code: 0259670

UPC: 098268012439

Lead Free: NO

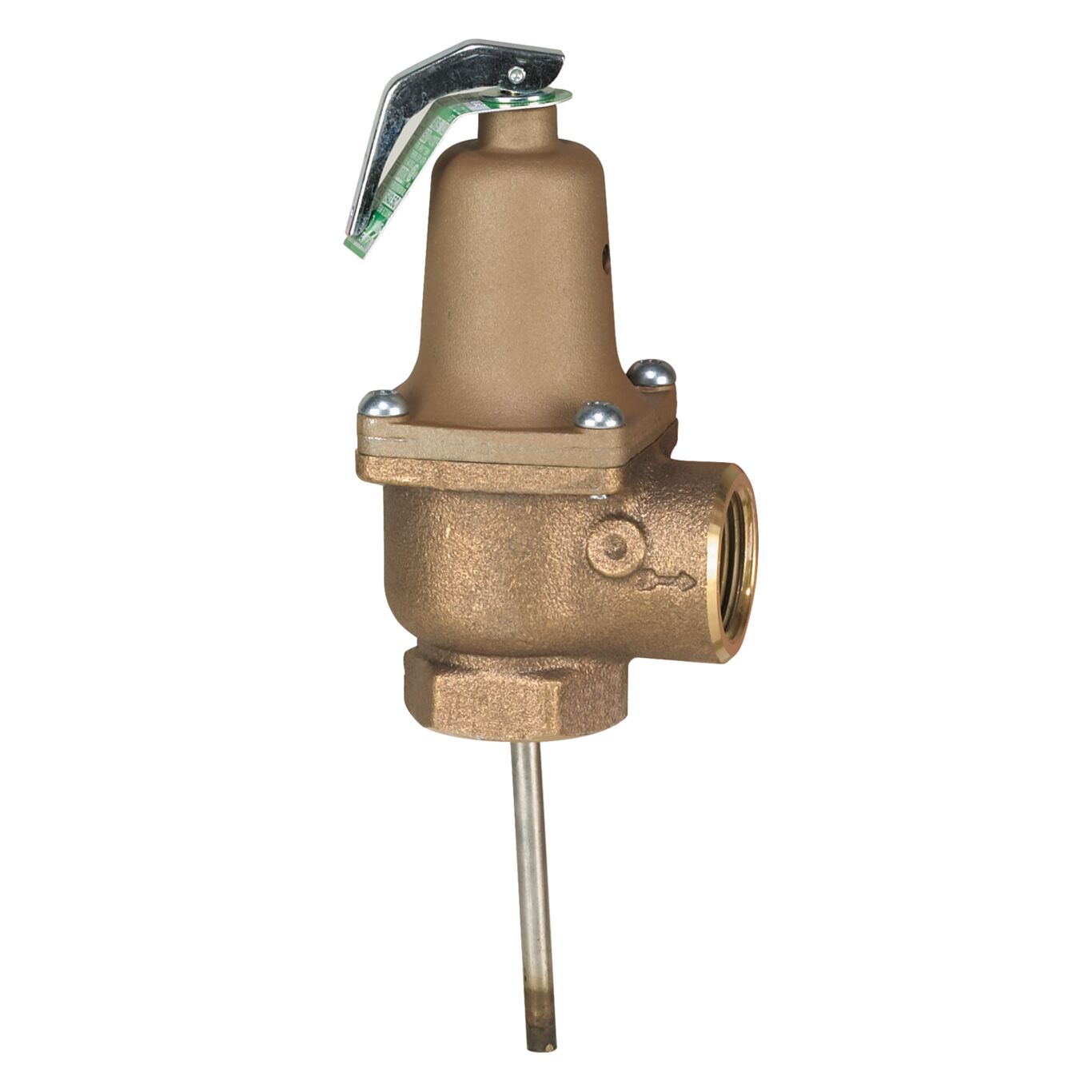

1 In Bronze Automatic Reseating Temperature And Pressure Relief Valve, 75 psi, 150 degree F, 6 In Thermostat, Female Connections

This 1 inch bronze automatic reseating temperature and pressure relief valve with a 6 inch thermostat is installed directly in tank tapings and is used in commercial applications to provide automatic temperature and pressure protection for hot water supply tanks and hot water heaters. It features a bronze body with NPT female inlet and NPT female outlet connections, thermo-bonded coated thermostat, tamper resistant bonnet screws, automatic reseating feature, and test lever. The temperature relief is 210 degrees and the pressure relief is 75 psi.

Product Features

  • Tamper resistant bonnet screws
  • Thermo-bonded thermostat
  • Non-mechanical seat to disc alignment
  • 6 Inch thermostat length
Body Material Bronze
Brand Name Watts
EANUCCCode 098268012439
Inlet Connection Size 1 IN
Inlet Connection Type Female Threaded
Inlet Thread Type NPT
Lead Free NO
Maximum Temperature-Fahrenheit 210
Outlet Connection Size 1 IN
Outlet Connection Type Female Threaded
Outlet Thread Type NPT
Part Number 0259670
Pressure Range 75 to 150 PSI
Pressure Relief Setting-PSI 75
Pressure Steam Discharge Capacity 1670000 BTU/HR
Protection Type Temperature And Pressure
Series 140
Temperature Relief-Fahrenheit 210
Temperature Steam Discharge Capacity 670000 BTU/HR
Thermostat Material Stainless Steel
