40L-2 100/210 FS 1

Part of the 40L Series

Ordering Code: F154800

UPC: 098268564693

Lead Free: NO

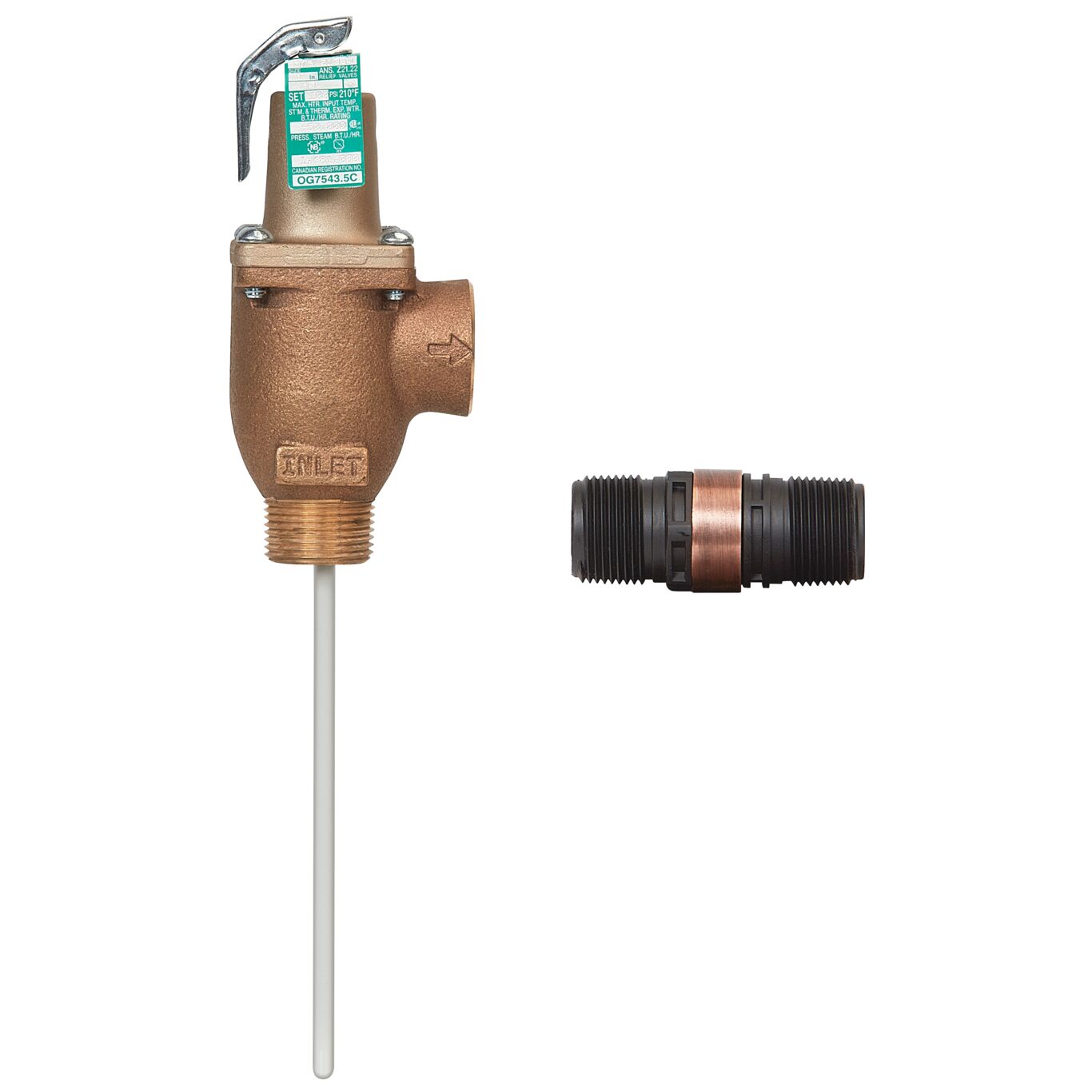

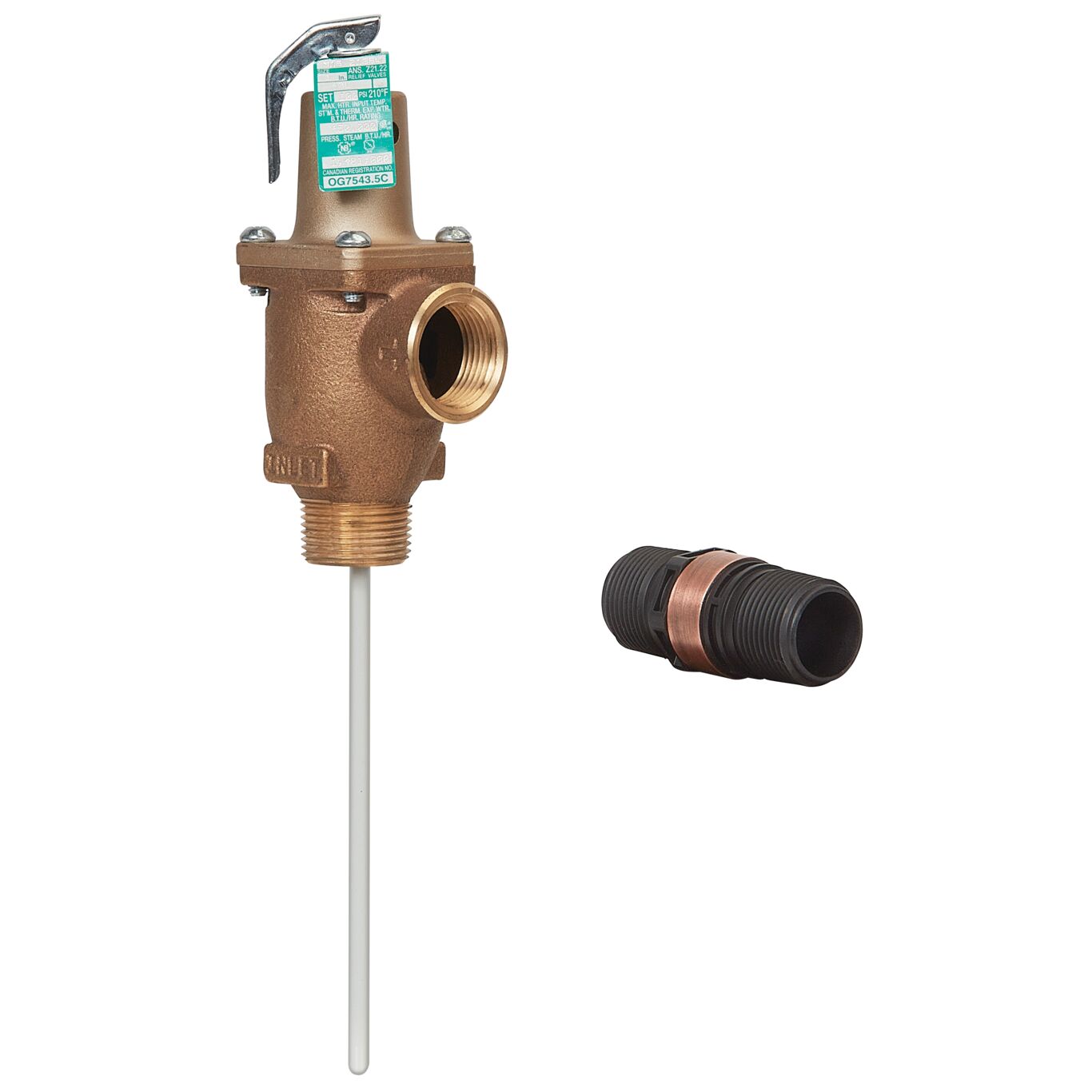

1 IN 40L-2 Bronze Automatic Reseating Temperature and Pressure Relief Valve, 100 psi, 210 degree F, 2 IN Coated Thermostat, Discharge Line Flood Sensor Included

  • Features a flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve
  • Requires purchase of activation kit to activate sensor
  • Bronze body
  • Tamper resistant bonnet screws
  • 2 Inch coated thermostat length
  • Non-mechanical seat to disc alignment
  • Set pressure 100 psi
Specifications
Body Material Bronze
Brand Watts
EAN 098268564693
GPM-When Relieved Does Not Apply to Product
Inlet Connection Size 1 IN
Inlet Connection Type Male Threaded
Inlet Thread Type NPTF
Lead Free NO
Maximum Temperature-Fahrenheit 210
Maximum Working Pressure-PSI 75
Outlet Connection Size 1 IN
Outlet Connection Type Female Threaded
Outlet Thread Type NPTF
Part Number F154800
Pressure Range Does not apply to product
Pressure Relief Setting-PSI 100
Protection Type Temperature And Pressure
Series 40L
Shank Length Does Not Apply To Product
Temperature Relief-Fahrenheit 210
Thermostat Material Nylon Coated Copper
Thermostat Probe Length 2 IN
