LF40L-2 100/210 FS 1

Part of the LF40L Series

Ordering Code: F121407

UPC: 098268566987

Lead Free: YES

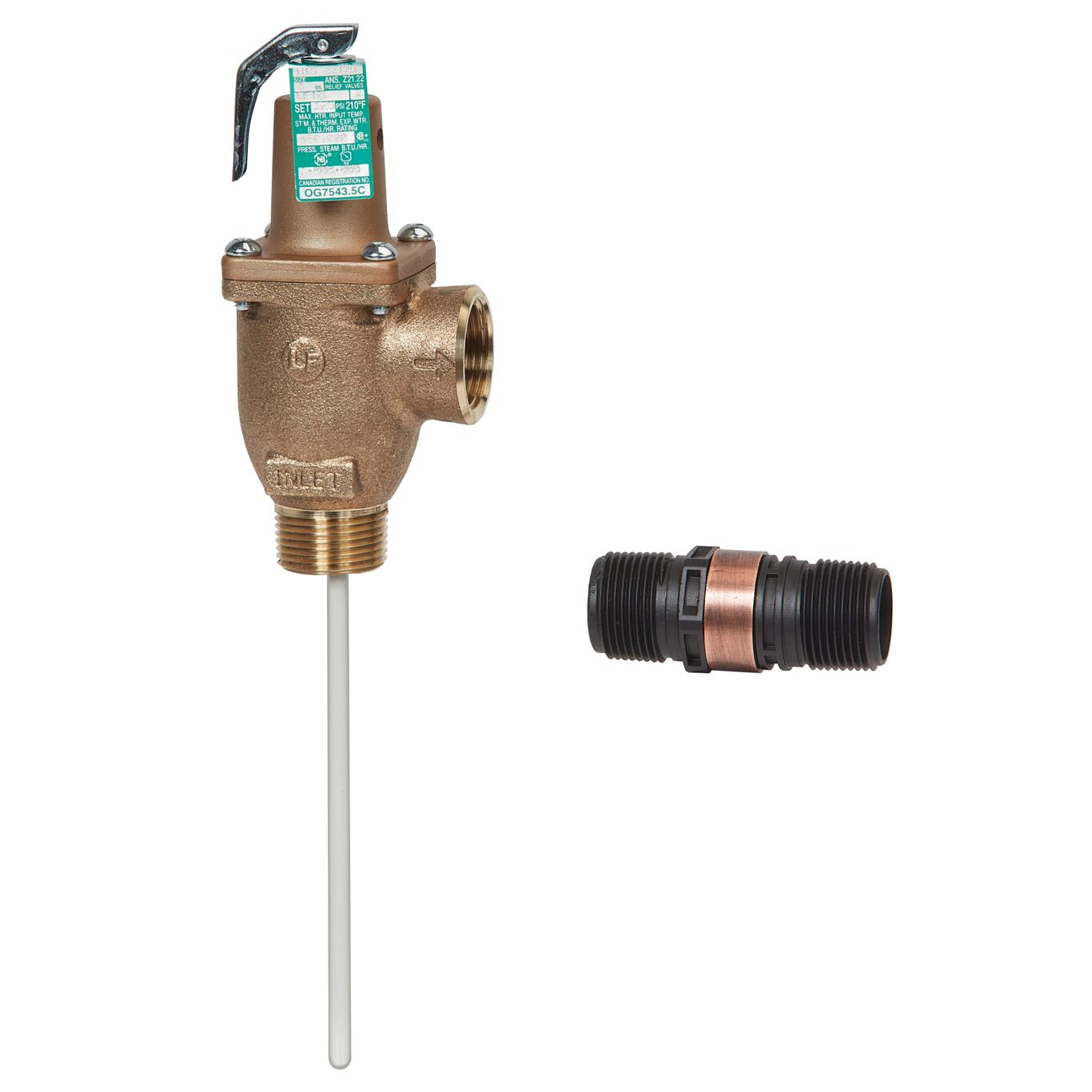

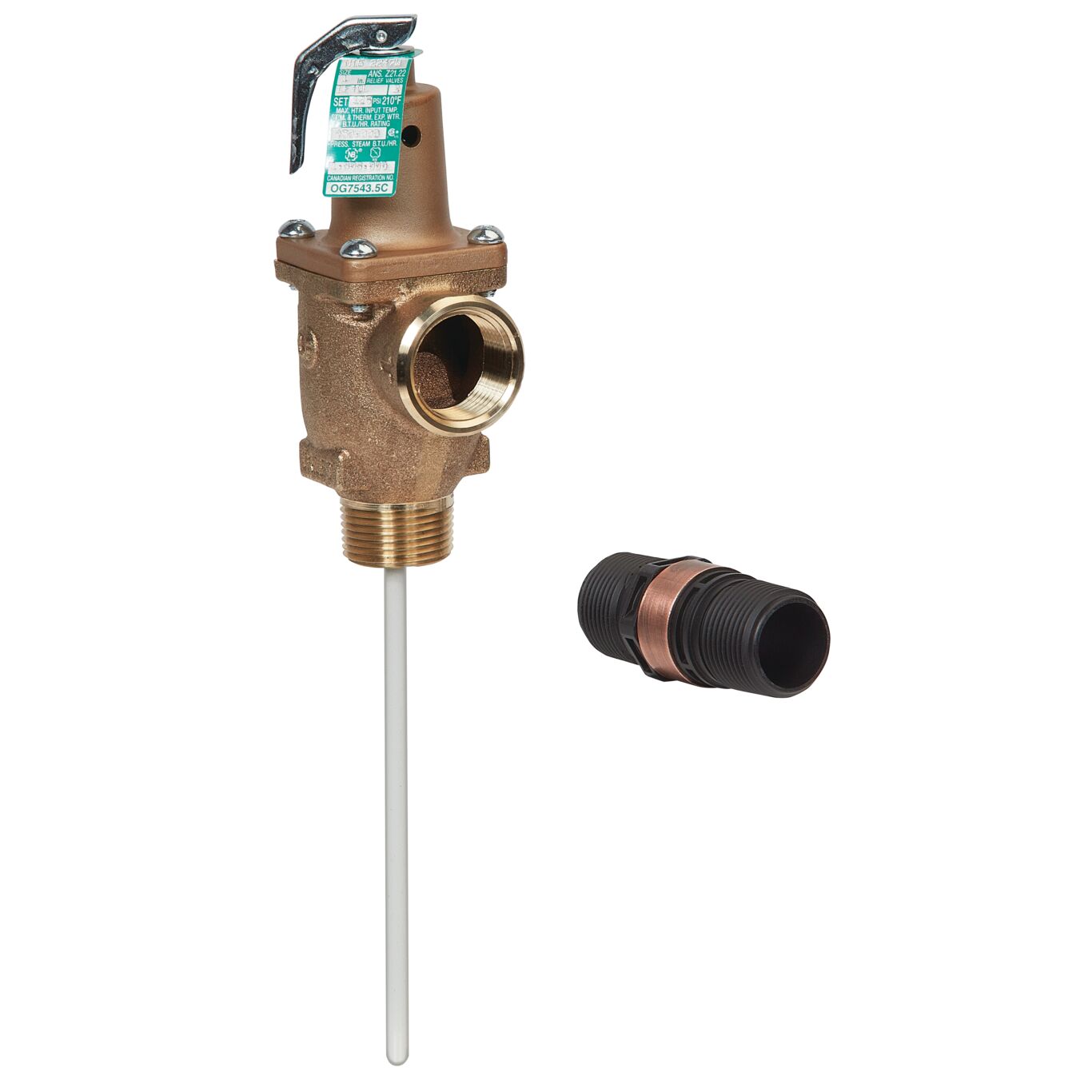

1 IN LF40L-2 Lead Free Automatic Reseating Temperature and Pressure Relief Valve, 100 psi, 210 degree F, 2 IN Coated Thermostat, Discharge Line Flood Sensor Included

  • Features a flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve
  • Requires purchase of activation kit to activate sensor
  • Lead free copper silicon alloy body
  • Tamper resistant bonnet screws
  • 2 Inch coated thermostat length
  • Non-mechanical seat to disc alignment
  • Set pressure 100 psi
Specifications
Body Material Lead Free Copper Silicon Alloy
Brand Watts
EAN 098268566987
GPM-When Relieved Does Not Apply to Product
Inlet Connection Size 1 IN
Inlet Connection Type Male Threaded
Inlet Thread Type NPTF
Lead Free YES
Maximum Temperature-Fahrenheit 210
Maximum Working Pressure-PSI 75
Outlet Connection Size 1 IN
Outlet Connection Type Female Threaded
Outlet Thread Type NPTF
Part Number F121407
Pressure Range Does not apply to product
Pressure Relief Setting-PSI 100
Protection Type Temperature And Pressure
Series LF40L
Shank Length Does Not Apply To Product
Temperature Relief-Fahrenheit 210
Thermostat Material Nylon Coated Copper
Thermostat Probe Length 2 IN
