FBV-3C 1/2

Part of the FBV-3C Series

Ordering Code: 0547102

UPC: 098268335958

Lead Free Model Available

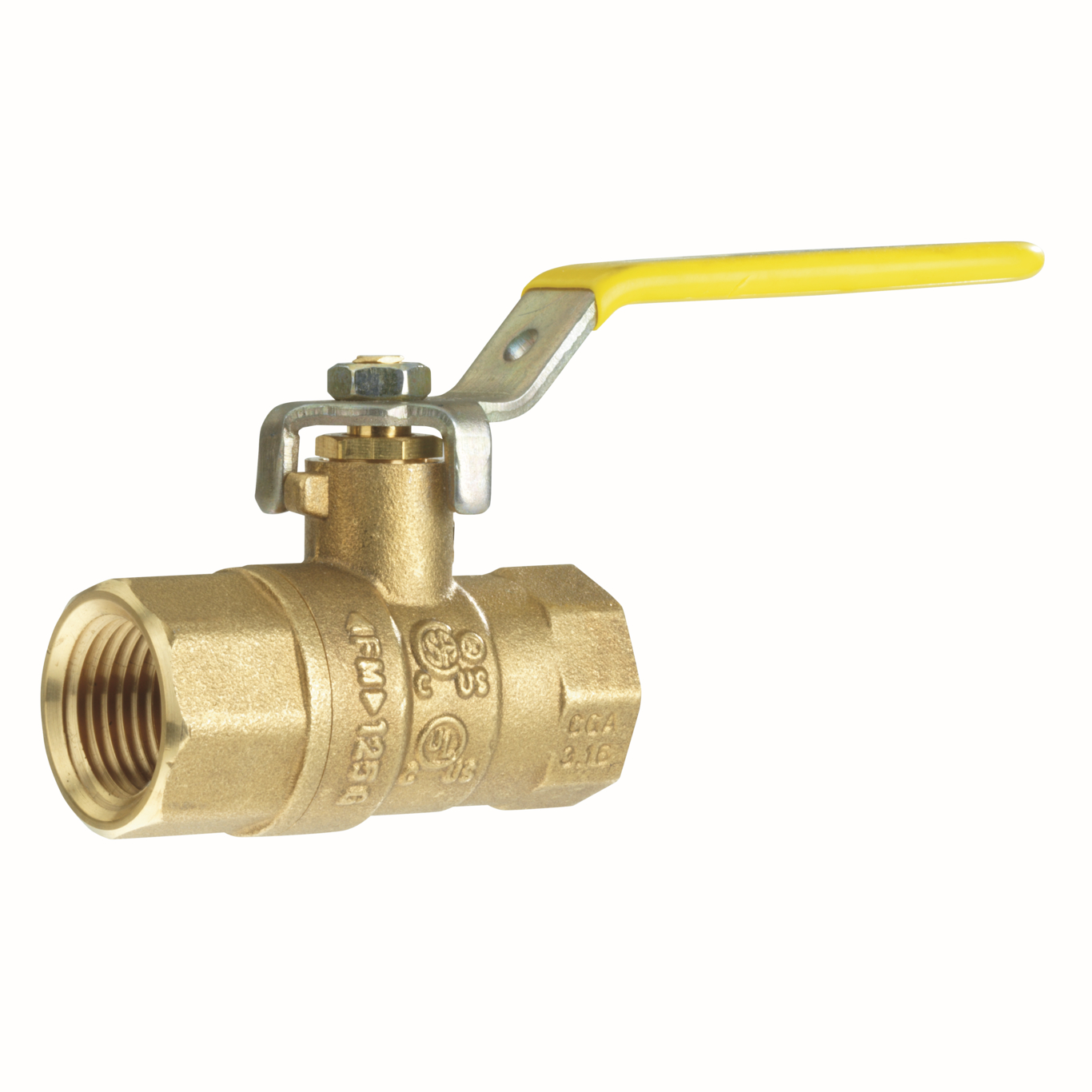

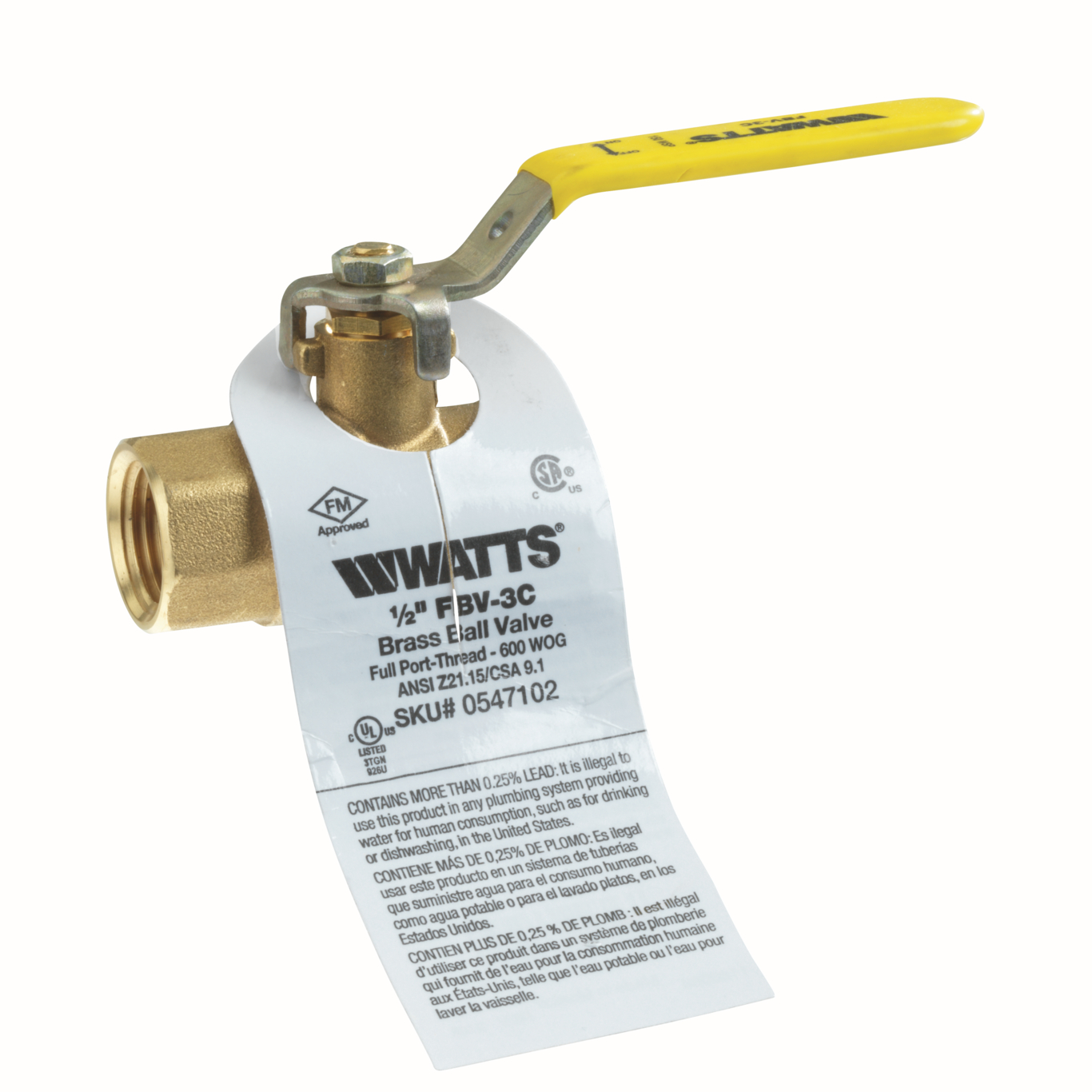

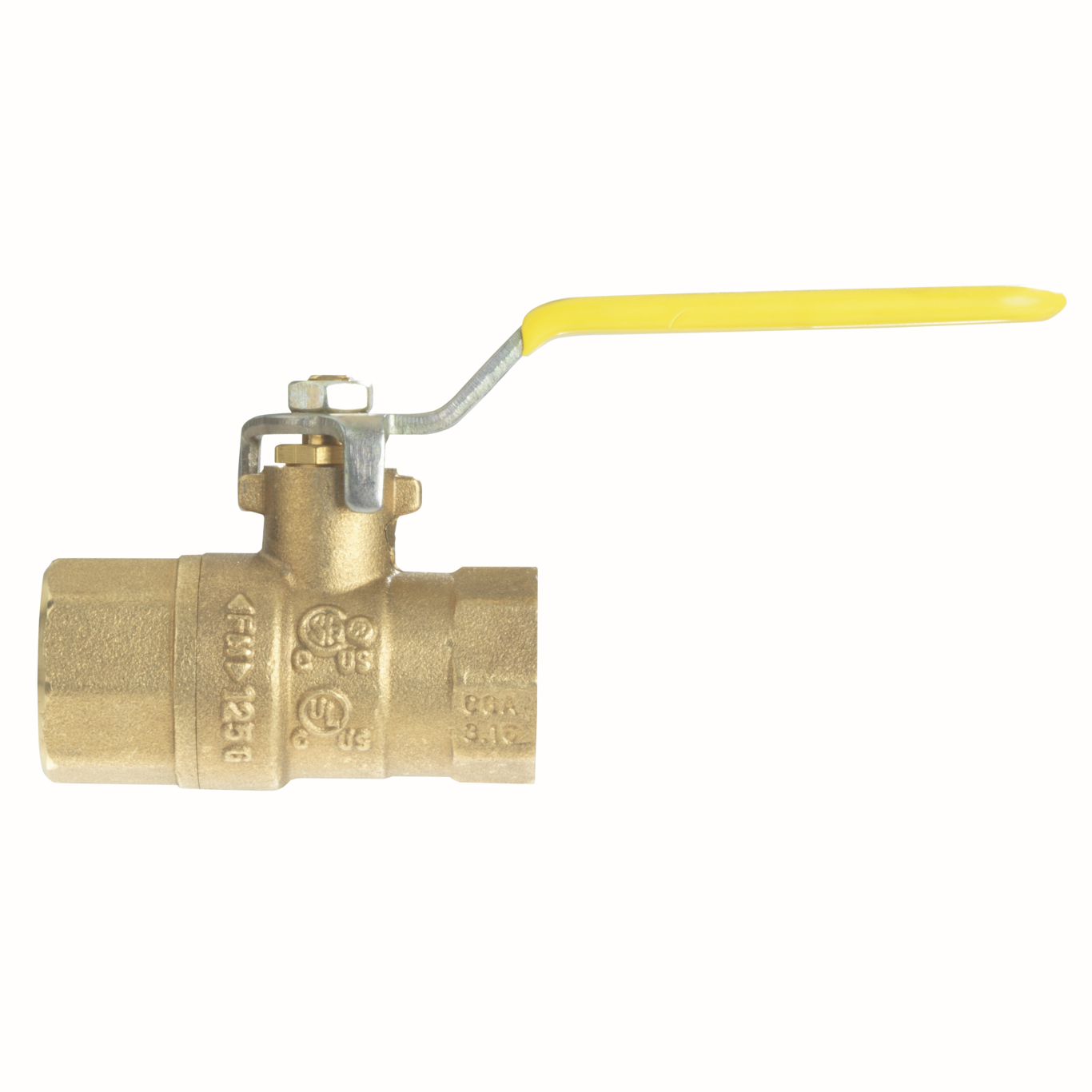

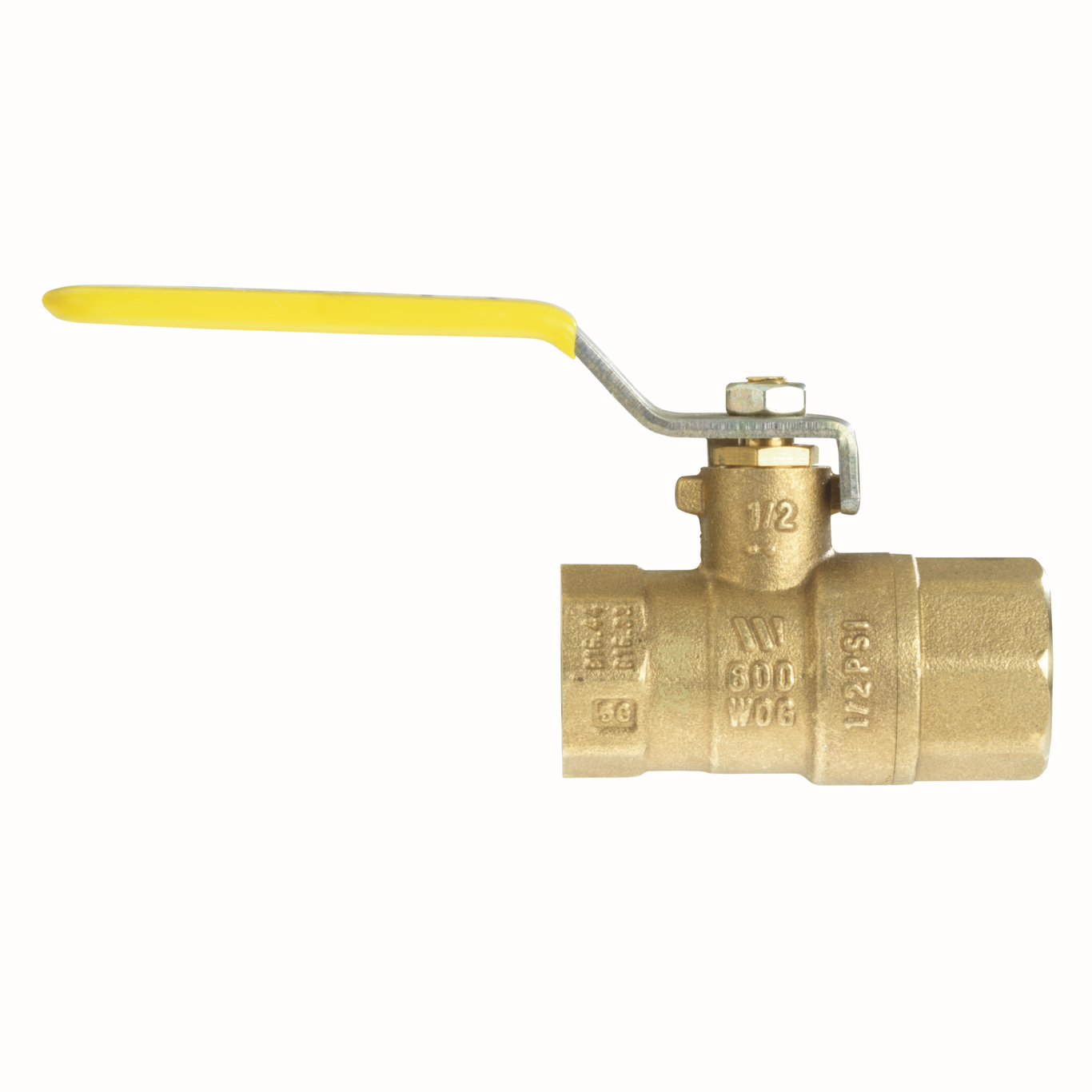

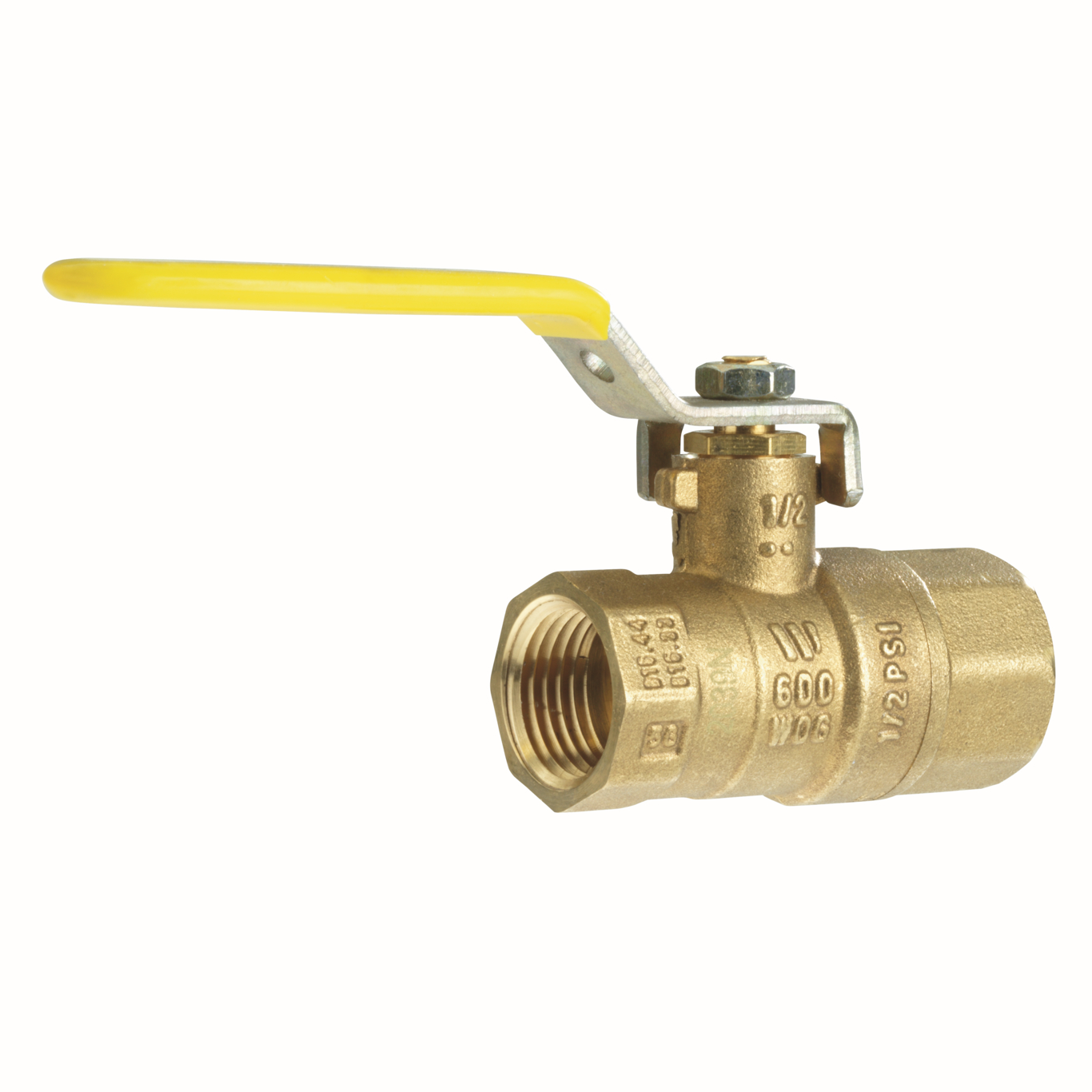

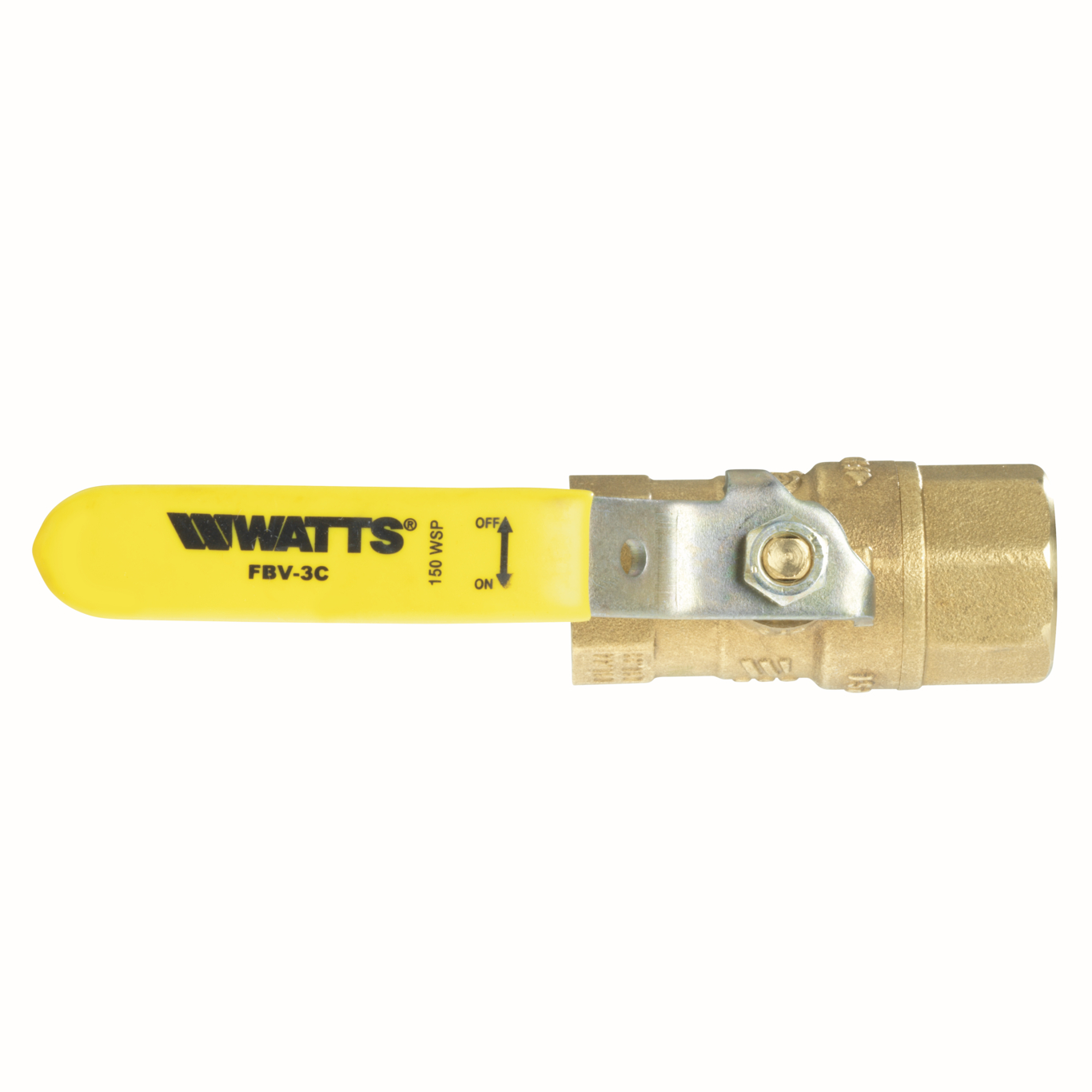

1/2 In Brass Ball Valve, Threaded, 600 Psi Wog, 150 Psi Wsp

This 1/2 IN 2-piece threaded full port brass ball valve, model FBV-3C, is used in commercial and industrial applications for a full range of liquids and gases. It features a bottom-loaded blowout-proof stem, virgin PTFE seat, thrust washer, and adjustable stem packing gland, stem packing nut, chrome plated brass ball, brass adapter and steel handle.

Product Features

  • Made of durable brass
  • NSF approved
  • Full port
  • Bottom loaded blowout proof stem
Actuation No
Assembled Dry No
Balance Stop Plate No
Ball Material Chrome Plated Brass
Body Finish Brass
Body Material Brass
BrandName Watts
Control Type Lever Handle
Electrical Rating Does Not Apply To Product
Inlet Connection Size 1/2 IN
Inlet Connection Type Female Threaded
Inlet Thread Type NPT
LeadFree NO
Maximum Temperature-Fahrenheit 400
Minimum Temperature-Fahrenheit -40
ModelNumber FBV-3C 1/2
Outlet Connection Size 1/2 IN
Outlet Connection Type Female Threaded
Outlet Thread Type NPT
Part Number 0547102
Port Type Full
Seat Material Virgin PTFE
Series FBV-3C
Stem Packing Material Virgin PTFE
Stem Shaft Material Brass
Stem Type Bottom Loaded Blowout Proof
Thrust Washer Material Virgin PTFE
Valve Style 2-piece
WOG Rating 600 PSI
