1 1/4 LFFBV-PEX-F1960

Part of the LFFBV-PEX-F1960 Series

Ordering Code: 88009052

UPC: 098268177800

Lead Free: YES

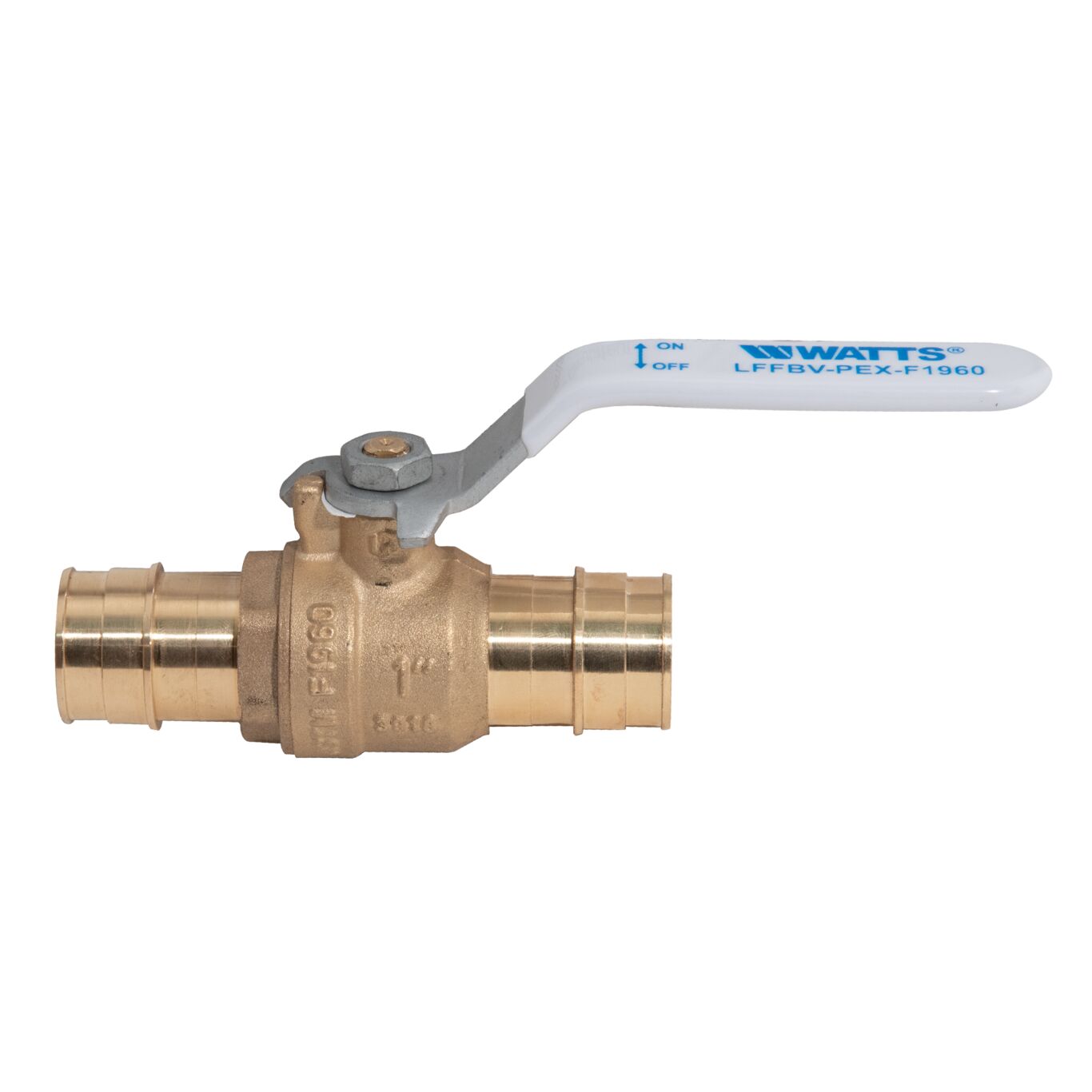

1 1/4 In Lead Free 2- Piece Brass Ball Valve CEF with PEX F1960 Ends

  • Forged lead free brass body
  • ASTM F1960 PEX expansion fittings for installation into PEX tubing
  • Blowout proof stem and O-ring seal
  • 400 psi non-shock WOG
Specifications
Actuation No
Assembled Dry No
Balance Stop Plate No
Ball Material Chrome Plated
Body Finish Brass
Body Material Brass
Brand Watts
Buy American Act Compliant NO
Class Rating Does Not Apply To Product
Control Type Lever Handle
CV Rating Does Not Apply To Product
EAN 098268177800
Electrical Rating Does Not Apply To Product
Inlet Connection Size 1 1/4 IN
Inlet Connection Size-Metric 25 MM
Inlet Connection Type Pex Compression
Inlet Thread Type Does Not Apply To Product
Lead Free YES
Maximum Temperature-Fahrenheit 73
Minimum Temperature - Celsius -18.00
Minimum Temperature-Fahrenheit 0
Operating Torque Does Not Apply To Product
Outlet Connection Size 1 1/4 IN
Outlet Connection Type Pex Expansion
Outlet Thread Type Does Not Apply To Product
Part Number 88009052
Port Type Does Not Apply To Product
Seat Material PTFE
Series LFFBV-PEX-F1960
Stem Packing Material Does Not Apply To Product
Stem Shaft Material Brass
Stem Type Bottom Loaded Blowout Proof
Thrust Washer Material Does Not Apply To Product
Type Kit
Valve Style 2-piece
WOG Rating 400 PSI
