DBF-04-121-2G-M2 10 Watts

Part of the DBF-04 Series

Ordering Code: 0525466

UPC: 098268596793

Lead Free: YES

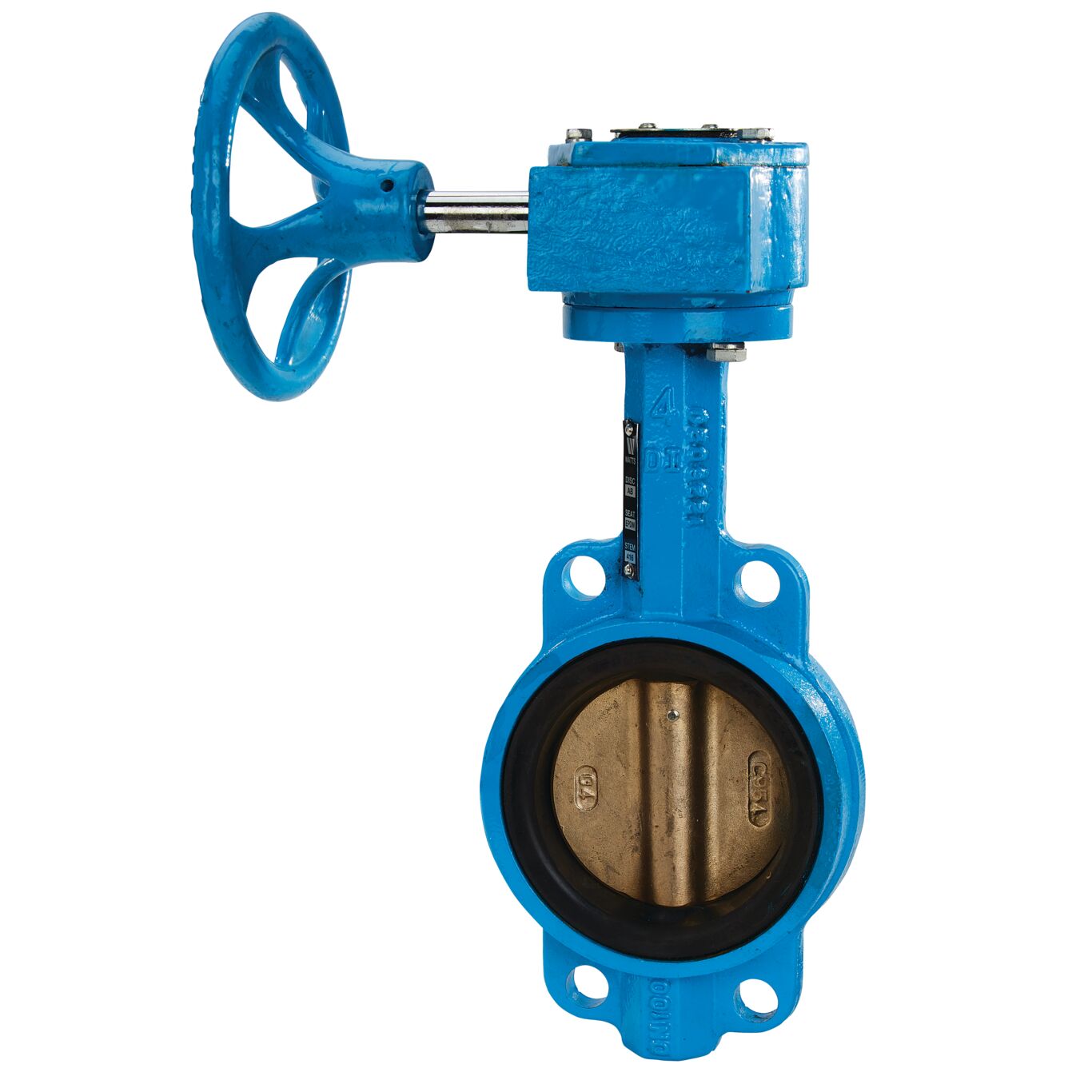

10 In Domestic Butterfly Valve, Wafer, Ductile Iron Body, Aluminum Bronze Disc, 416 Ss Shaft, Buna-N Seat, Gear Operator

This 10 IN domestic wafer style butterfly valve, model DBF-04-121-2G-M2, is used in HVAC, irrigation, OEM, commercial, and institutional applications and wherever positive shutoff is required to control the flow of liquids, gases, and slurries. It features cast iron body construction, aluminum bronze disc, Buna-N seat, a stainless steel shaft, mounting pad for gear operator.

Product Features

  • Buna-N seat
  • Aluminum bronze disc
  • Ductile iron body
  • Gear operator
Specifications
Body Material Iron
BrandName Watts
Class Rating 125 or 150
Control Type Gear Operator
CV Rating 5340 GPM
Disc Material Aluminum Bronze
Inlet Connection Size 10 IN
Inlet Connection Type Wafer
LeadFree YES
Maximum Operating Temperature-Fahrenheit 176
Maximum Working Pressure-PSI 200
Minimum Temperature-Fahrenheit 33
ModelNumber DBF-04-121-2G-M2 10
Operating Torque-Dry 4857 in-lbs
Operating Torque-Wet 2500 in-lbs
Outlet Connection Size 10 IN
Outlet Connection Type Wafer
Part Number 0525466
Seat Material Buna-N
Series DBF-04
Silicone Free Yes
Stem Shaft Material Stainless Steel
Valve Style Wafer
