DBF-04-131-1G-M2 8

Part of the DBF-04 Series

Ordering Code: 0525449

UPC: 098268596625

Lead Free: YES

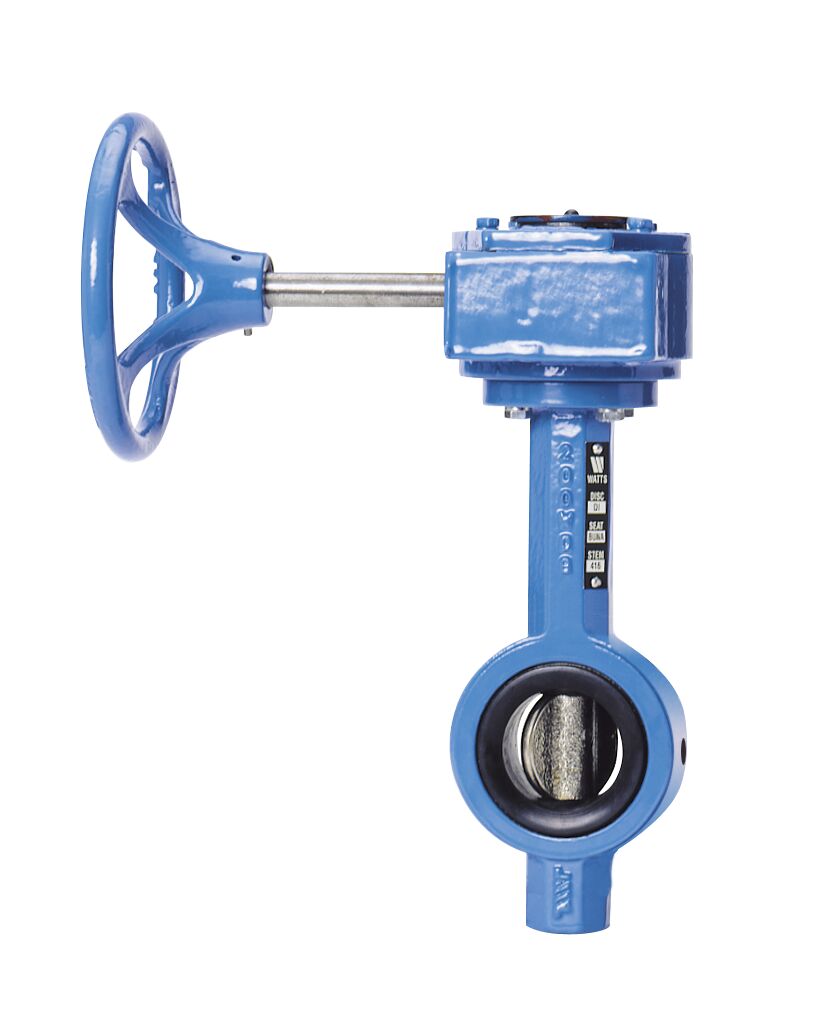

8 In Domestic Butterfly Valve, Wafer, Ductile Iron Body, 316 Ss Disc, 316 Ss Shaft, Epdm Seat, Gear Operator

This 8 IN domestic wafer style butterfly valve, model DBF-04-131-1G-M2, is used in HVAC, irrigation, OEM, commercial, and institutional applications and wherever positive shutoff is required to control the flow of liquids, gases, and slurries. It features cast iron body construction, stainles steel disc, EPDM seat, a stainless steel shaft, mounting pad for gear operator.

Product Features

  • EPDM seat
  • Gear operator
  • 316 stainless steel disc
  • Ductile iron body
Body Material Iron
Brand Name Watts
Class Rating 125 or 150
Control Type Gear Operator
CV Rating 3136 GPM
Disc Material Stainless Steel
EANUCCCode 098268596625
Inlet Connection Size 8 IN
Inlet Connection Type Wafer
Lead Free YES
Maximum Operating Temperature-Fahrenheit 248
Maximum Working Pressure-PSI 200
Minimum Temperature-Fahrenheit 33
Operating Torque-Dry 2919 in-lbs
Operating Torque-Wet 1697 in-lbs
Outlet Connection Size 8 IN
Outlet Connection Type Wafer
Part Number 0525449
Seat Material EPDM
Series DBF-04
Silicone Free Yes
Stem Shaft Material Stainless Steel
Valve Style Wafer
