WGV-1 1/2

Discontinued - Replaced By: LFWGV 1/2

Part of the WGV-1 Series

Ordering Code: 0770011

UPC: 098268090611

Lead Free: Not In Scope

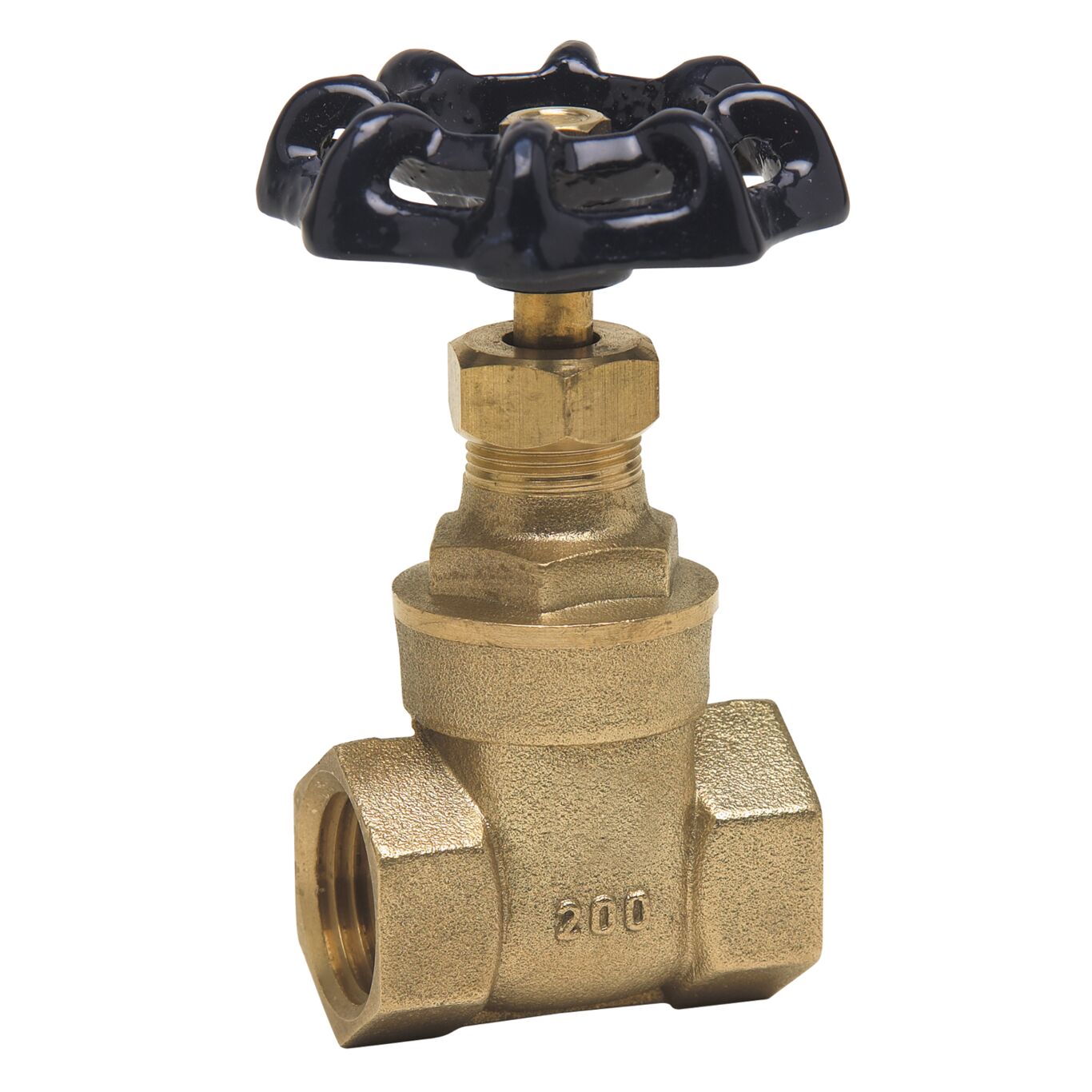

1/2 In Brass Gate Valve, Thread, Nrs

This brass gate valve, 1/2 IN Watts model WGV-1, is used in commercial and residential general service applications. It features a brass body construction, brass non-rising stem and gland, PTFE packing, brass threaded bonnet, brass wedge disc, and cast iron handwheel and comes with NPT female threaded end connections. The maximum pressure is 200 PSI (13.8 bar) WOG.

Product Features

  • NPT female threaded connection
  • Non-rising stem
  • Brass body construction
  • Brass wedge disc and cast iron hand wheel
Specifications
Body Material Brass
Bonnet Type Threaded
BrandName Watts
Control Type Handwheel
Disc Material Brass
Inlet Connection Size 1/2 IN
Inlet Connection Type Female Threaded
Inlet Thread Type FPT
LeadFree Not In Scope
Maximum Pressure-PSI 200
Maximum Temperature-Fahrenheit 180
ModelNumber WGV-1 1/2
Outlet Connection Size 1/2 IN
Outlet Connection Type Female Threaded
Outlet Thread Type FPT
Part Number 0770011
Series WGV-1
Stem Shaft Material Brass
Stem Type Non Rising
Valve Style NRS
WOG Rating 200 PSI
