LF777SI 3

Part of the LF777SI Series

Ordering Code: 0379118

UPC: 098268285666

Lead Free: YES

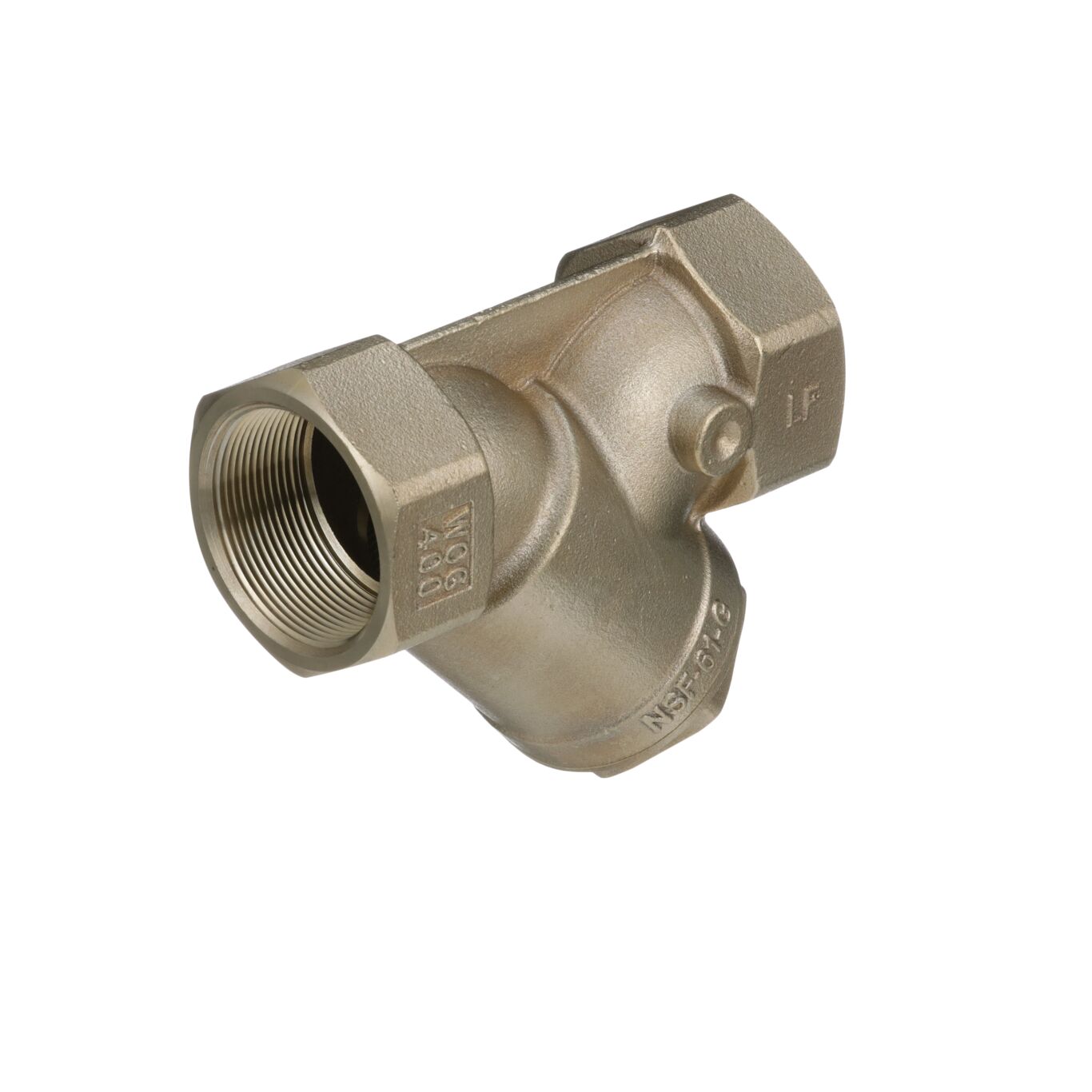

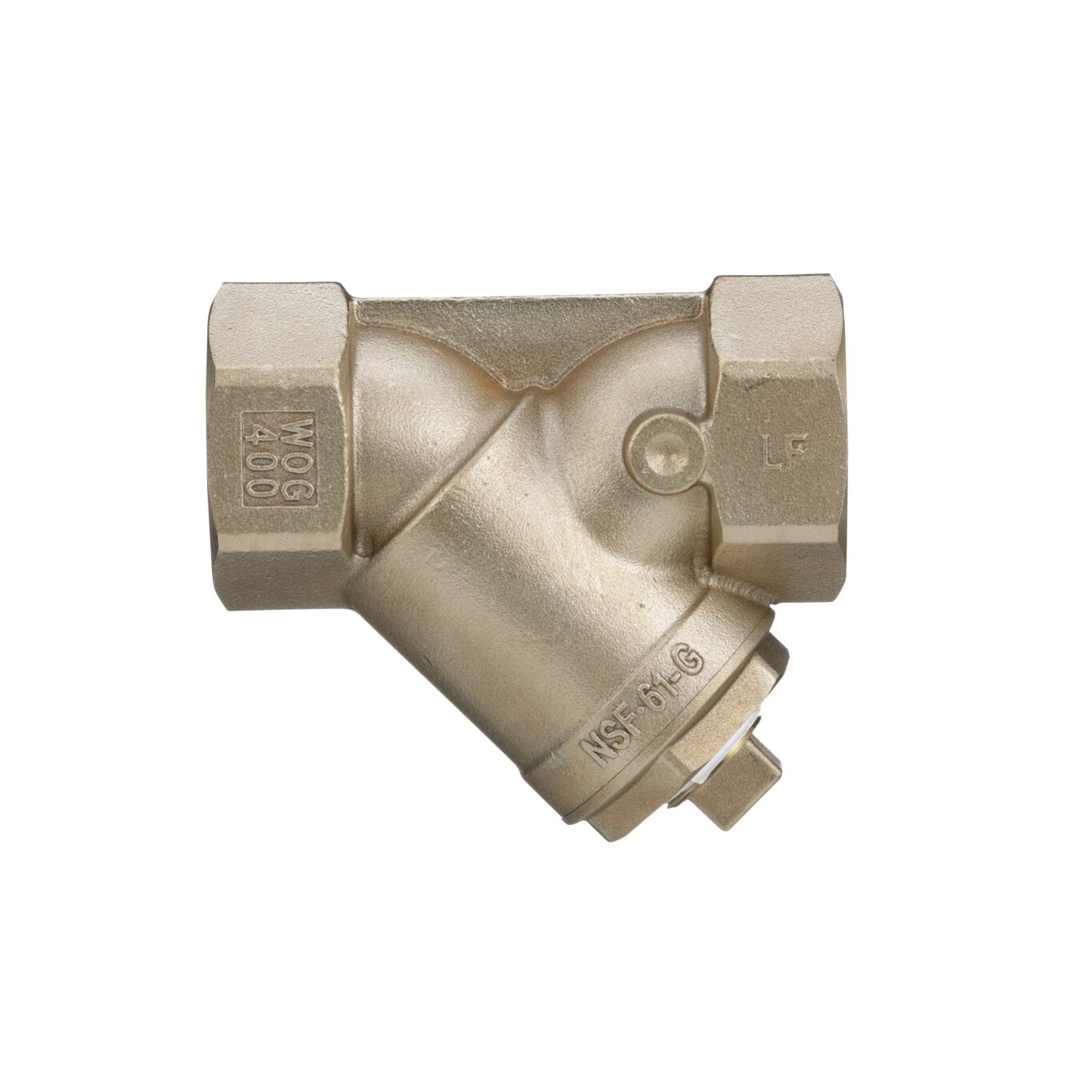

3 In Bronze Wye Pattern Strainer, Thread, 20 Mesh Screen, Tapped Retainer Cap, Closure Plug

This 3 inch lead free wye pattern strainer is designed to protect system components from dirt, rust, and other damaging debris in the piping system. It has a retainer cap tapped for closure plug, threaded end connections, and a 20 mesh stainless steel screen.

Product Features

  • Wye pattern
  • Retainer cap tapped for closure plug
  • Threaded end connections
  • Lead free construction
Blowdown Outlet Connection Female Threaded
Blowdown Outlet Size 1/2 IN
Body Material Brass
Body Pattern Wye
Bolt Material Does Not Apply To Product
Brand Name Watts
Epoxy Coating Type None
Flange Material Does Not Apply To Product
Gasket Material NBR
Grooved Coupling Material Does Not Apply To Product
Inlet Connection Size 3 IN
Inlet Connection Size-Metric 80 MM
Inlet Connection Type Female Threaded
Inlet Thread Type NPT
Lead Free YES
Maximum Operating Temperature-Celsius 178.00
Maximum Operating Temperature-Fahrenheit 210
Maximum Pressure And Temperature 400 PSI at 210 degree F; 125 PSI at 353 degree F
Maximum Pressure-BAR 27.60
Maximum Pressure-PSI 400
Maximum Working Pressure And Temperature 400 PSI at 210 degrees F
Mesh Screen Size 20 MESH
Model Number LF777SI 3
Outlet Connection Size 3 IN
Outlet Connection Type Female Threaded
Outlet Thread Type NPT
Part Number 0379118
Perforated Screen Size Does Not Apply To Product
Plug Material Brass
Pressure-Temperature Rating 400 PSI at 210 degree F
Pressure-Temperature Rating-BAR 27.6 BAR at 99 degree C
Retainer Cover Material Lead Free Cast Copper Silicon Alloy
Retainer Cover Type Tapped with Closure Plug
Screen Material Stainless Steel
Screen Size 20 MESH
Series LF777SI
Strainer Type Wye
WOG Rating 400 PSI at 210 degrees F
