PWM10111A10

Part of the PWM Series

Sales Channel: Wholesale

Ordering Code: 7100000

UPC: 098268558463

Lead Free: YES

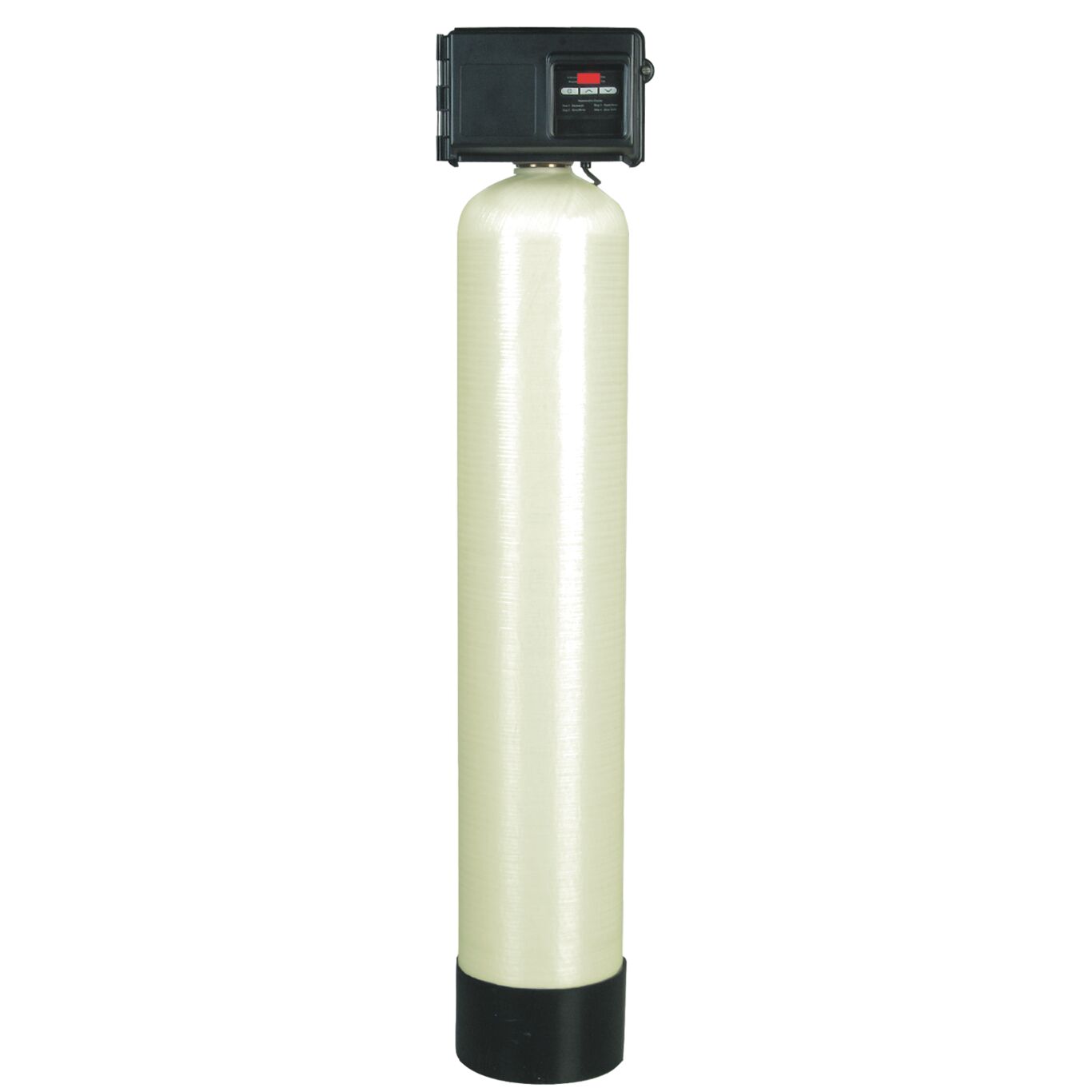

9 In Almond Sediment Removal Filtration System

This is a highly effective, automatic backwashing, media filtration system for the removal of sediment and suspended solids from the water. It is suitable for commercial applications with peak flow rates up to 9 gallons per minute and has a media bed size of 1 cubic foot. The mineral tank is constructed of corrosion resistant fiberglass reinforced plastic and has a 9 inch diameter. This system has a 1 IN MNPT inlet and outlet and a 1/2 IN FNPT drain connection. The workhorse of this system is its specialized sediment filtration media, which has a nominal particle size removal of 3-5 micron. This media along with the tank and system control valve are NSF and ANSI certified. The digital control valve stores key operational history and is constructed of durable brass. This system is designed for point of use or point of entry applications where filtered water is required.

Product Features

  • Corrosion resistant fiberglass mineral tank
  • Specialized filtration media with three micron nominal particle size removal
  • Durable brass body control valve
  • Digital valve controller stores key operational history
Specifications
Backwash Flow Rate-GPM 7.00
Brand Name Watts
By-Pass Type Does Not Apply To Product
Control Valve Location Top Mount
Control Valve Style Digital
Control Valve Type Time Clock
EANUCCCode 098268558463
Electrical Requirements 120 Volt AC 60 Hertz
First Media Type MicroZ
Inlet Connection Size 1 IN
Inlet Connection Thread Type NPT
Inlet Connection Type Male Threaded
Lead Free YES
Media Filtration Application Commercial
Outlet Connection Size 1 IN
Outlet Connection Thread Type NPT
Outlet Connection Type Male Threaded
Part Number 7100000
Series PWM
Tank Color Almond
Tank Type Fiberglass
Valve Body Material Brass
