SentryPlus Alert Technology
SentryPlus Alert® Technology Connection and Upgrade Kits for Backflow Preventer Flood Detection
SentryPlus Alert® technology provides automatic flood detection and pressure monitoring on backflow preventer assemblies to signal excessive relief valve discharge which could be worsened by a blocked or undersized drain and cause costly damage. SentryPlus Alert comes with multiple solutions for flood protection, detection, and notification.

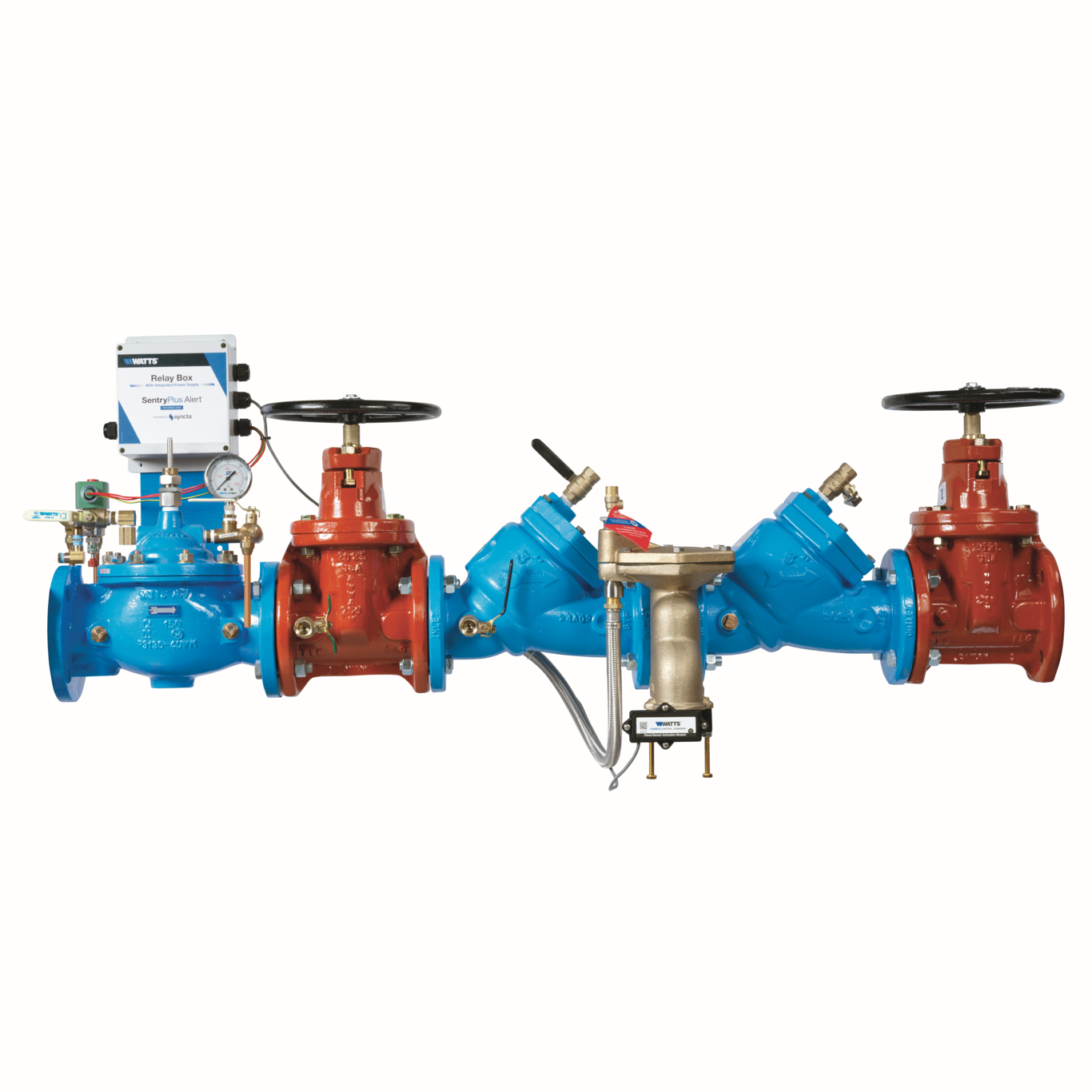

Series LFF113FP Flood Protection Shutdown Control Valves help guard against property damage by continuously monitoring for excessive RPZ backflow relief valve discharge and closing the water supply automatically during potential flood conditions.
Implementing the SentryPlus Alert system on reduced pressure zone and reduced pressure detector assemblies equipped with an integrated flood sensor adds a multichannel alert function triggering one or more notification methods (email message, SMS text message, voice call) to help facility personnel prevent discharges that could reach ruinous levels. To enable flood detection capabilities, activate the integrated flood sensor with the add-on Sensor Connection Kit. For use with BMS or cellular communication network.

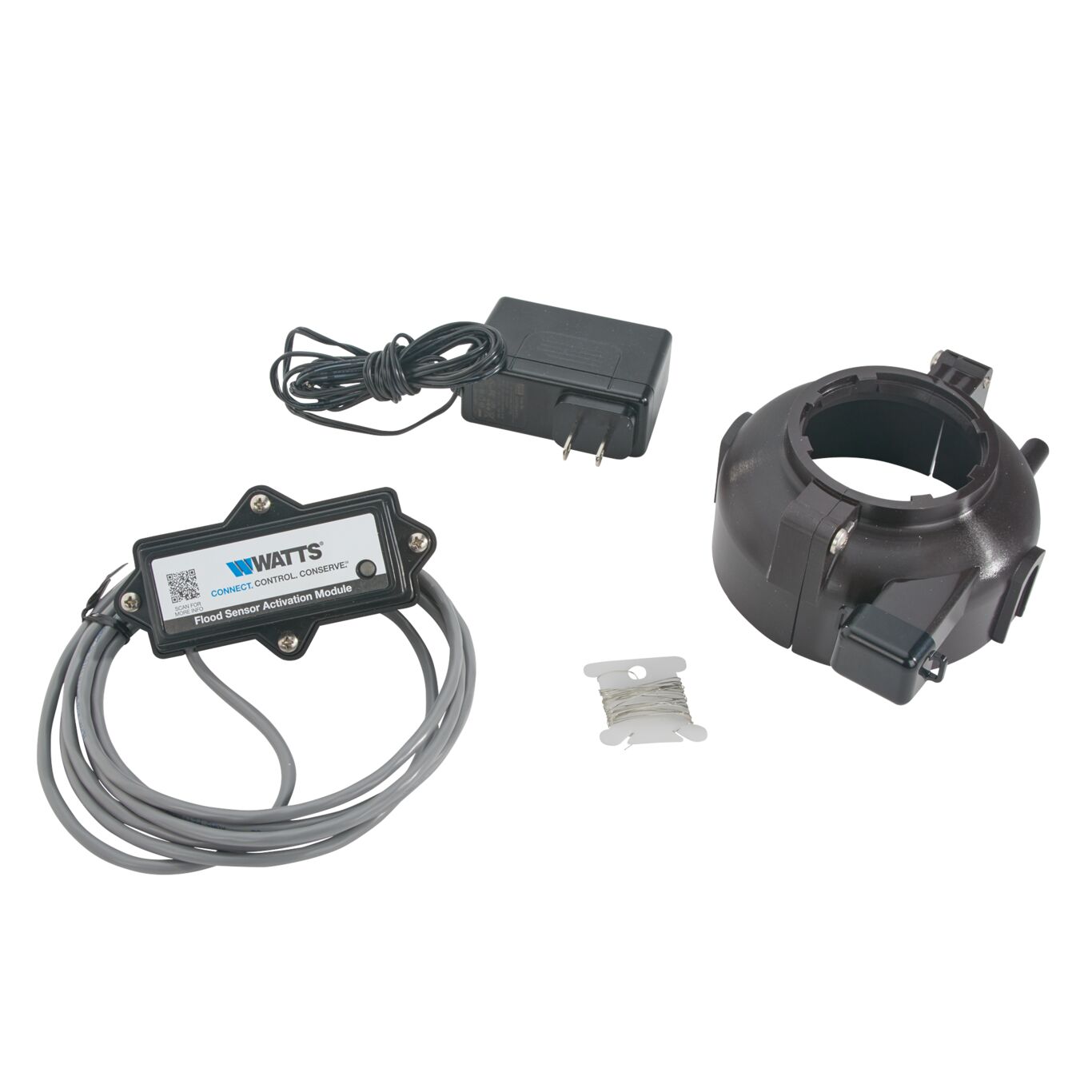

An upgrade option for flood detection, the Air Gap Flood Sensor Connection Kit works on any RPZ assembly system including a metal air gap with a female 2 inch NPT connection. The sensor is attached to the base of the air gap and is triggered when relief valve discharges exceed 3 gpm. This kit includes both sensor and activation components. Available for BMS and cellular communication.
Assess the performance of select backflow preventer assemblies including sensor technology integrated on test cocks to measure pressure fluctuations at three points. On Series LF007 and LF709 Model IOT with NRS gates only. Suitable for non-fire application. An add-on monitoring connection kit is required to collect, convert, and transmit data values. Available for BMS.
Flood Detection for Reduced Pressure Zone Assemblies
Watts Series 009-FS, LF009-FS, LF909-FS Small/Large, 957-FS, 994-FS
Ames Series C400-FS, 4000SS-FS
Any RPZ assembly system including a metal air gap with 2 IN female NPT connection
Flood Detection for Reduced Pressure Detector Assemblies
Watts Series 909RPDA-FS, 957RPDA-FS, LF957RPDA-FS, 994RPDA-FS
Ames Series C500-FS, LFC500-FS, 5000SS-FS
Pressure Monitoring for Double Check Valve Assemblies
Watts Series LF007 Model IOT, 2½ IN and 3 IN
Watts Series LF709 Model IOT
Literature
-
Literature
- Brochure - Automated Flood Protection
- Flyer - Pressure Monitoring with SentryPlus Alert Technology
- Installation Instructions - BMS Sensor Connection Kit - Air Gap Flood Sensor
- Installation Instructions - Cellular Sensor Connection Kit - Air Gap Flood Sensor
- Installation Instructions - Custom Flood Sensor Settings
- Installation Instructions - Flood Sensor BMS Connection Kits - 009, 009-FS, LF009-FS, LFU009-FS, SS009-FS, U009-FS, LF909-FS Small
- Installation Instructions - Flood Sensor BMS Connection Kits - 909, LF909-FS Large, 909RPDA-FS
- Installation Instructions - Flood Sensor BMS Connection Kits - 994-FS, 957-FS, 957RPDA-FS, LF957RPDA-FS, Ames C400-FS, C500-FS, LFC500-FS, 4000SS-FS, 5000SS-FS
- Installation Instructions - Flood Sensor Cellular Connection Kits - 009, 009-FS, LF009-FS, LFU009-FS, SS009-FS, U009-FS, LF909-FS Small
- Installation Instructions - Flood Sensor Cellular Connection Kits - 909, LF909-FS Large, 909RPDA-FS
- Installation Instructions - Flood Sensor Cellular Connection Kits - 994-FS, 957-FS, 957RPDA-FS, LF957RPDA-FS, Ames C400-FS, C500-FS, LFC500-FS, 4000SS-FS, 5000SS-FS
- Installation Instructions - Pressure Sensing BMS Monitoring Connection Kit - LF007 and LF709
- Installation Instructions - Pressure Sensor Module Replacement Kit - LF007 and LF709
- Installation Instructions - SentryPlus Alert Technology (June 2020 - Present)
- Manual - SentryPlus Alert User Guide For Cellular Gateway
- Price List - Watts ACV Controls and Accessories
- Price List - Watts Flood Protection and Backflow Systems
- Product Flyer - SentryPlus Alert Technology For Fire Protection
- Specification Sheet - Pressure Sensor
- Specification Sheet - SentryPlus Alert Upgrade Kit
