LFC300-BFG-CFM 2 1/2

Part of the LFC300 Series

Ordering Code: 0124579

UPC: 098268838145

Lead Free: YES

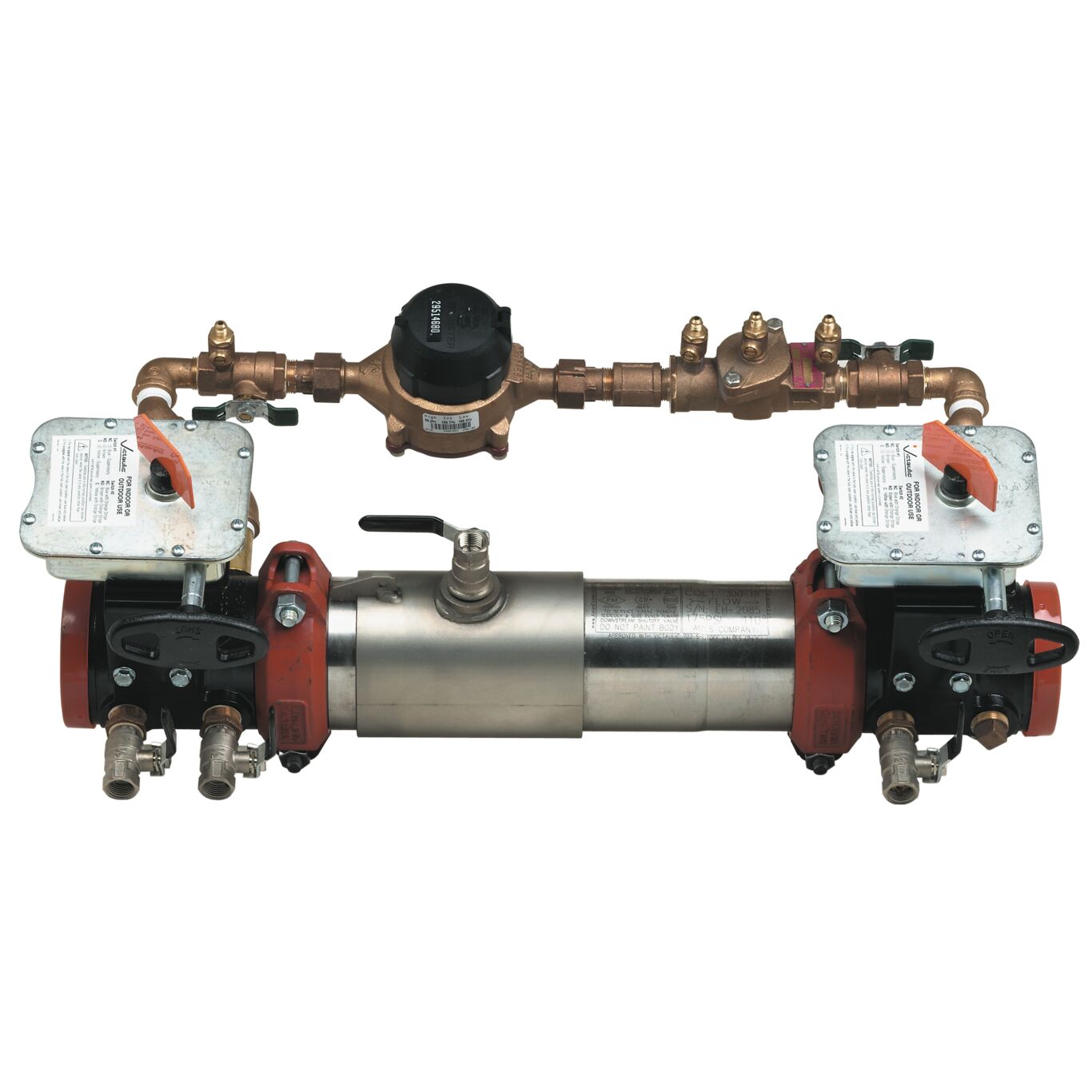

2 1/2 IN Lead Free Double Check Detector Backflow Preventer Assembly, Colt, Grooved Gear Butterfly Valves, Tri-Link Checks, Cubic Feet Meter

  • Stainless steel single housing with access sleeve
  • Furnished with a cubic feet per minute meter
  • Replaceable check disc rubber
  • Compact construction allows for smaller vaults and enclosures
Specifications
ArmorTek Technology No
Backflow Preventer Type Double Check Detector Assembly
Body Finish Does Not Apply To Product
Body Material Stainless Steel
Body Pattern Straight
Brand Ames Fire & Waterworks
Buy American Act Compliant NO
Bypass Yes
Bypass Size 3/4 IN
Cap And Tether No
Disc Material Rubber
EAN 098268838145
Elbow Fitting Yes
Hazard Protection Level Non Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 2 1/2 IN
Inlet Connection Size-Metric 65 MM
Inlet Connection Type Grooved Joint
Inlet Shutoff Valve Type Gear Operated Butterfly Valve
Inlet Thread Type Does Not Apply To Product
Lead Free YES
Maximum Temperature-Fahrenheit 110
Maximum Working Pressure-BAR 12.06
Maximum Working Pressure-PSI 175
Meter Type CFM
Minimum Temperature - Celsius 0.50
Minimum Temperature-Fahrenheit 33
Outlet Connection Size 2 1/2 IN
Outlet Connection Type Grooved Joint
Outlet Shutoff Valve Type Gear Operated Butterfly Valve
Outlet Thread Type Does Not Apply To Product
Part Number 0124579
Polymer Coating No
Pressure Operation Continuous
Protection Type Backpressure and Backsiphonage
Seat Material Rubber
Series LFC300
Strainer No
Technologies Does Not Apply To Product
Tradename Colt
