U007M2-QT 1 1/2

Part of the 007 Series

Ordering Code: 0062141

UPC: 098268350531

Lead Free Model Available

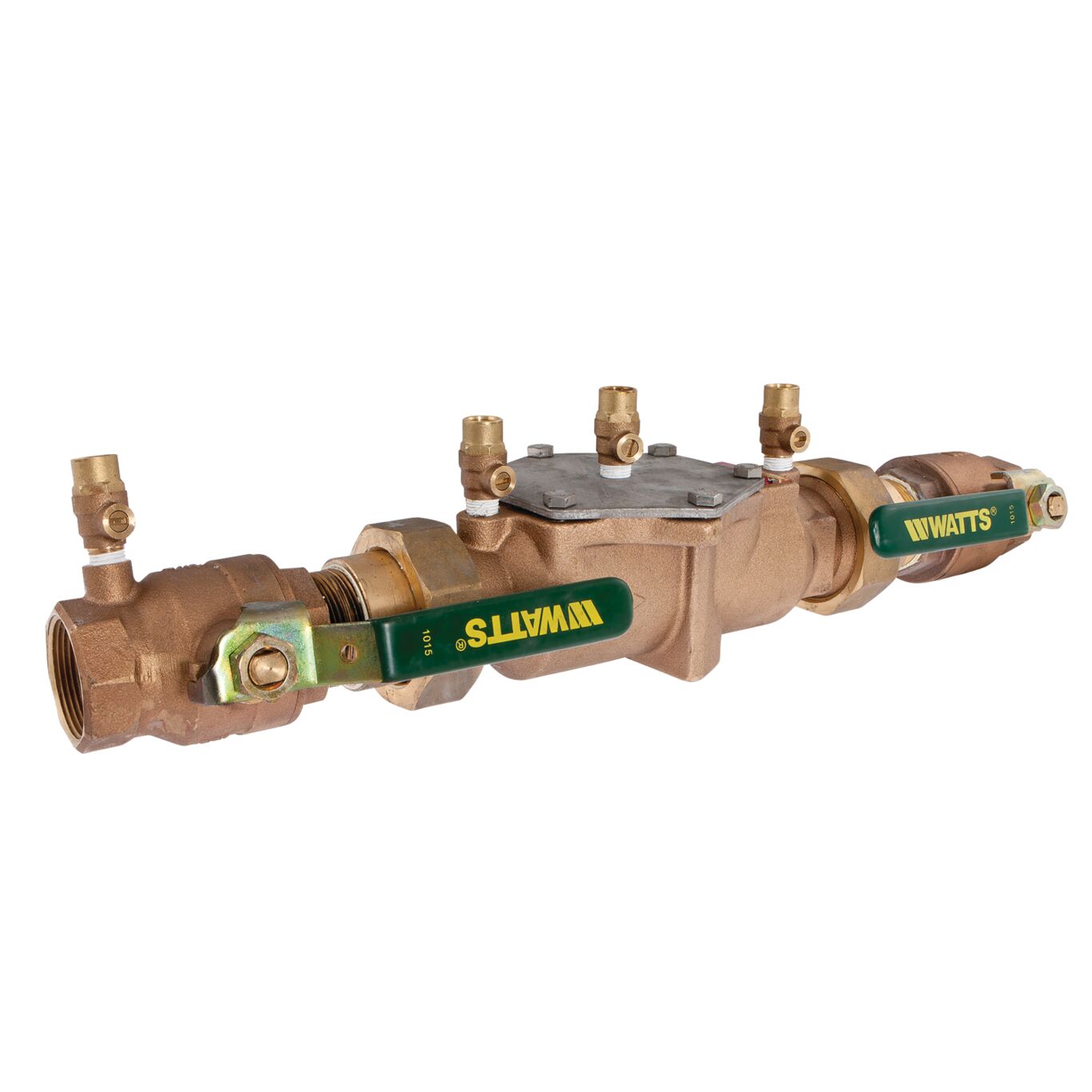

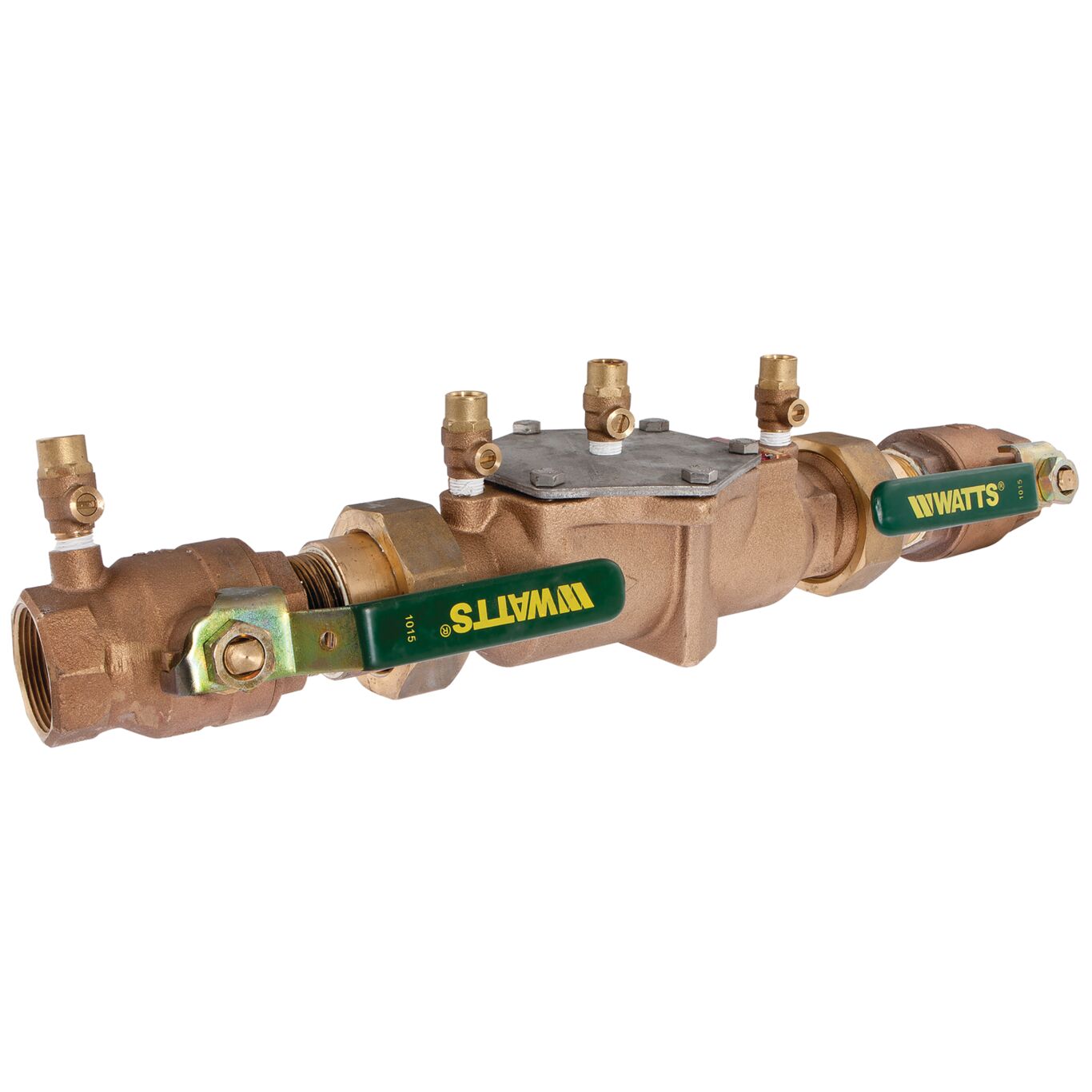

1 1/2 In Bronze Double Check Valve Assembly, Quarter Turn Shutoff, Union, Single Top Entry

This 1 1/2 inch double check valve assembly is designed to prevent the backflow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as non-health hazards and for contaminants at the service line entrance. This assembly consists of a bronze body construction, union end connections, quarter turn ball valve shutoffs, top mounted test cocks, two in-line independent positive seating check modules, captured springs, and replaceable check discs and seats.

Product Features

  • Bronze body for durability
  • Top entry
  • Replaceable seats and seat discs
  • Modular compact design
Backflow Preventer Type Double Check Valve Assembly
Body Finish Cast Bronze
Body Material Bronze
Body Pattern Does Not Apply To Product
Brand Name Watts
Bypass No
Cap And Tether No
Disc Material Rubber
EANUCCCode 098268350531
Elbow Fitting No
Hazard Protection Level Non Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 1 1/2 IN
Inlet Connection Type Female Threaded
Inlet Shutoff Valve Type Quarter Turn Ball Valve
Inlet Thread Type NPT
Lead Free NO
Maximum Temperature-Fahrenheit 180
Maximum Working Pressure-BAR 12.10
Maximum Working Pressure-PSI 175
Meter Type No Meter
Minimum Temperature - Celsius 0.50
Minimum Temperature-Fahrenheit 33
Outlet Connection Size 1 1/2 IN
Outlet Connection Type Female Threaded
Outlet Shutoff Valve Type Quarter Turn Ball Valve
Outlet Thread Type NPT
Part Number 0062141
Polymer Coating No
Protection Type Backpressure and Backsiphonage
Series 007
Strainer No
Type Kit
