LFU007M1-QT 2

Part of the LF007 Series

Ordering Code: 0122618

UPC: 098268639728

Lead Free: YES

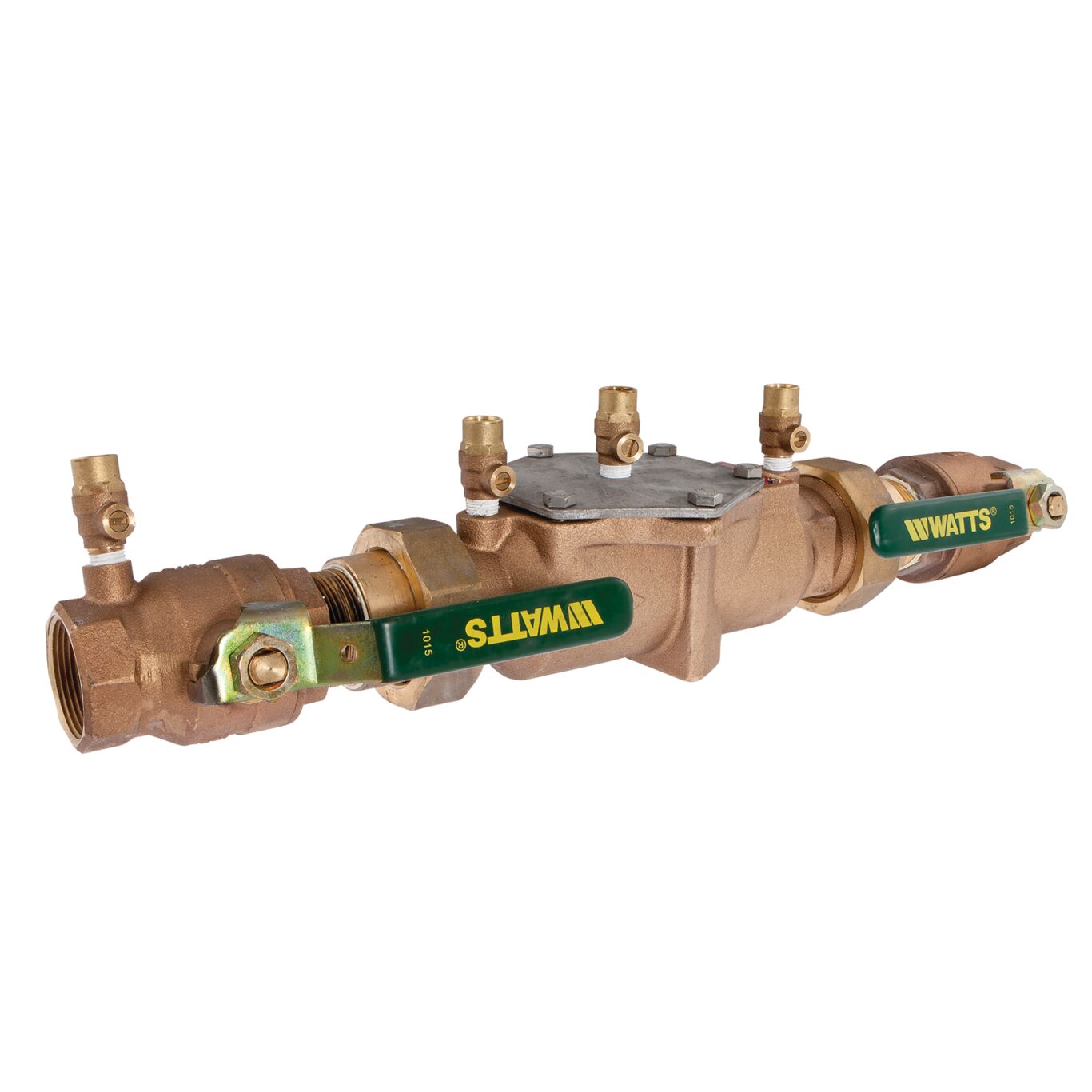

2 In Lead Free Double Check Valve Assembly, Quarter Turn Shutoff, Union, Single Top Entry

This 2 inch lead free double check valve assembly is designed to prevent the backflow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as non-health hazards and for contaminants at the service line entrance. This assembly consists of a lead free body construction, union end connections, quarter turn ball valve shutoffs, top mounted test cocks, two in-line independent positive seating check modules, captured springs, and replaceable check discs and seats.

Product Features

  • Top entry
  • Replaceable seats and seat discs
  • Lead free construction
  • Modular compact design
Specifications
Backflow Preventer Type Double Check Valve Assembly
Body Finish Cast Copper Silicon Alloy
Body Material Lead Free Bronze
Body Pattern Straight
BrandName Watts
Bypass No
Cap And Tether No
Disc Material Rubber
Elbow Fitting No
Hazard Protection Level Non Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 2 IN
Inlet Connection Type Union Joint
Inlet Shutoff Valve Type Quarter Turn Ball Valve
Inlet Thread Type FPT
LeadFree YES
Maximum Temperature-Fahrenheit 180
Maximum Working Pressure-BAR 12.10
Maximum Working Pressure-PSI 175
Meter Type No Meter
Minimum Temperature-Fahrenheit 33
ModelNumber LFU007M1-QT 2
Outlet Connection Size 2 IN
Outlet Connection Type Union Joint
Outlet Shutoff Valve Type Quarter Turn Ball Valve
Outlet Thread Type FPT
Part Number 0122618
Polymer Coating No
Protection Type Backpressure
Seat Material Rubber
Series LF007
Strainer No
