SS007M3-QT 1/2

Part of the SS007 Series

Ordering Code: 0062695

UPC: 098268817119

Lead Free: YES

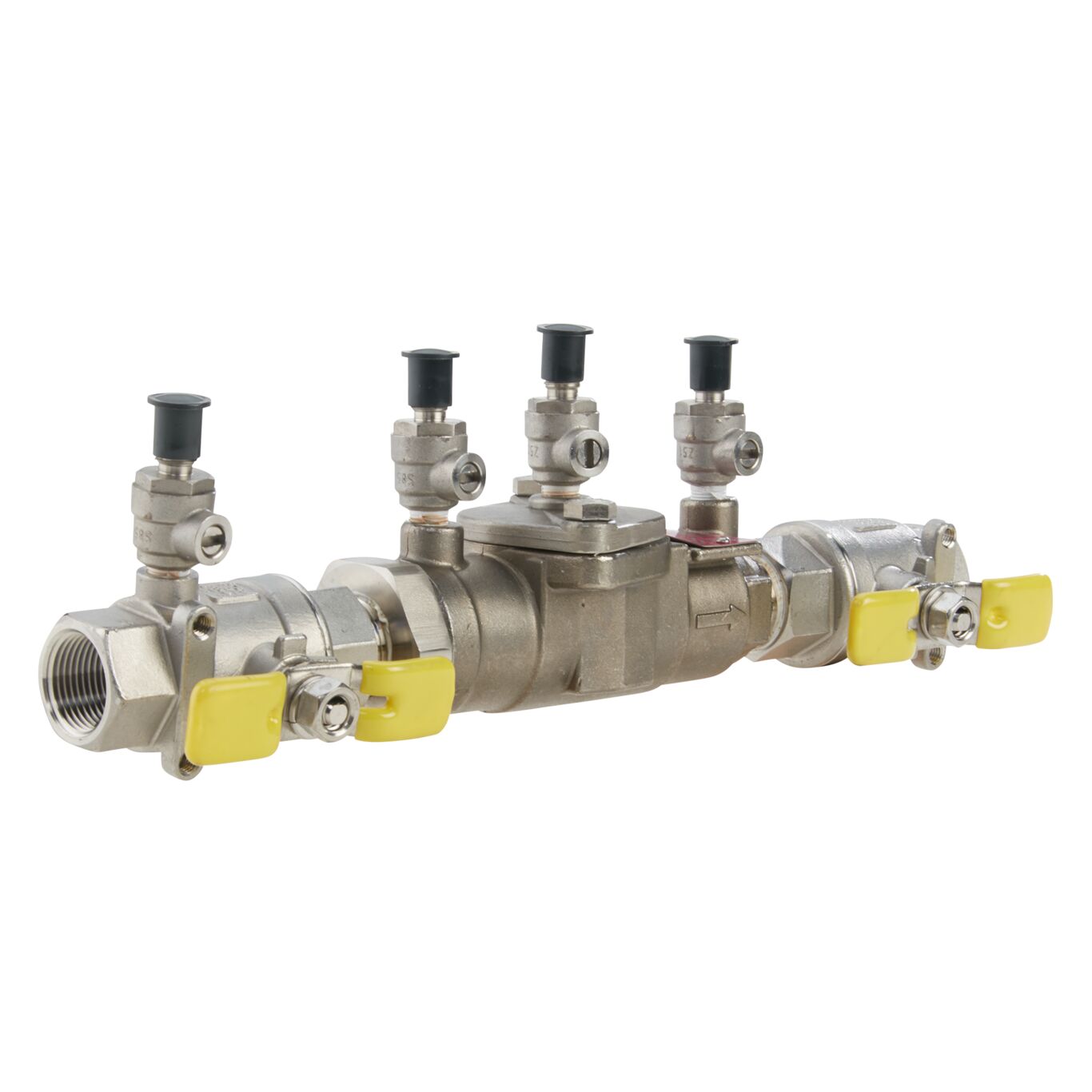

1/2 In Stainless Steel Double Check Valve Assembly, Quarter Turn Shutoff, Single Top Entry

This 1/2 inch double check valve assembly is designed to prevent the backflow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as non-health hazards and for contaminants at the service line entrance. This assembly consists of a stainless steel body construction, NPT end connections, quarter turn ball valve shutoffs, top mounted test cocks, two in-line independent positive seating check modules, captured springs, and replaceable check discs and seats.

Product Features

  • Stainless steel body
  • Modular compact design
  • Replaceable seats and seat discs
  • Top entry
Specifications
Backflow Preventer Type Double Check Valve Assembly
Body Finish Stainless Steel
Body Material Stainless Steel
Body Pattern Does Not Apply To Product
BrandName Watts
Bypass No
Bypass Size Does Not Apply To Product
Cap And Tether No
Disc Material Silicone
Elbow Fitting No
Hazard Protection Level Non Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 1/2 IN
Inlet Connection Type Female Threaded
Inlet Shutoff Valve Type Quarter Turn Ball Valve
Inlet Thread Type Does Not Apply To Product
LeadFree YES
Maximum Temperature-Fahrenheit 180
Maximum Working Pressure-BAR 12.10
Maximum Working Pressure-PSI 175
Meter Type No Meter
Minimum Temperature-Fahrenheit 33
ModelNumber SS007M3-QT 1/2
Outlet Connection Size 1/2 IN
Outlet Connection Type Female Threaded
Outlet Shutoff Valve Type Quarter Turn Ball Valve
Outlet Thread Type Does Not Apply To Product
Part Number 0062695
Polymer Coating No
Pressure Operation Continuous
Protection Type Backpressure and Backsiphonage
Seat Material PTFE
Series SS007
Strainer No
