SS007

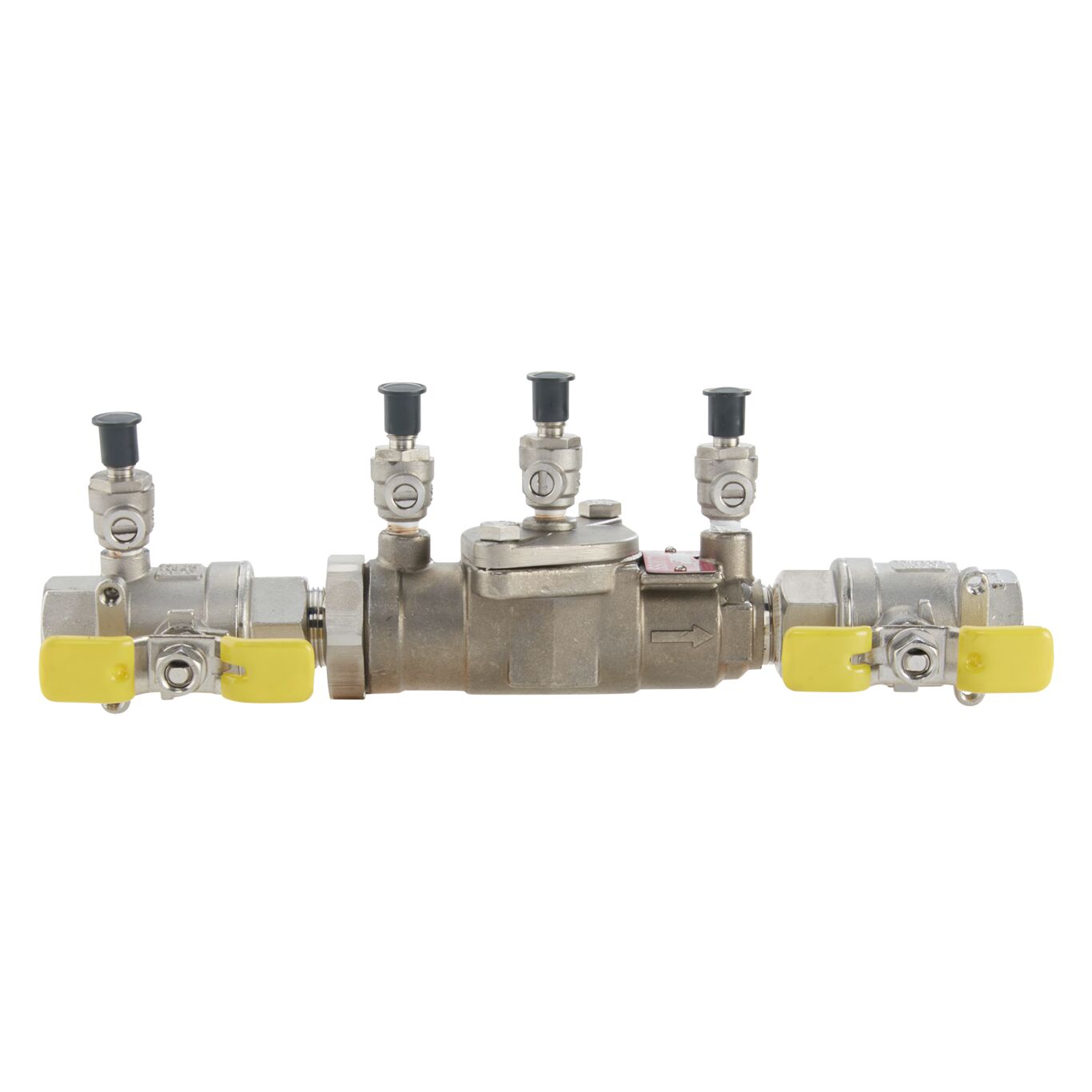

Stainless Steel Double Check Valve Assembly Backflow Preventers with Freeze Sensor
SS007
Stainless Steel Double Check Valve Assembly Backflow Preventers with Freeze Sensor
Features
- Available freeze sensor connection kit to activate a monitoring system that trigger alerts for low and freezing temperatures
- Corrosion-resistant stainless steel
- Bolted-on, top-entry, single access cover for easier maintenance
- Top-mounted, vandal-resistant test cocks
- Test cocks include dust covers to protect threads
- Freeze alerts feature available with add-on connection kit for Wi-Fi networks, building management systems (BMS), and irrigation management systems (IMS)

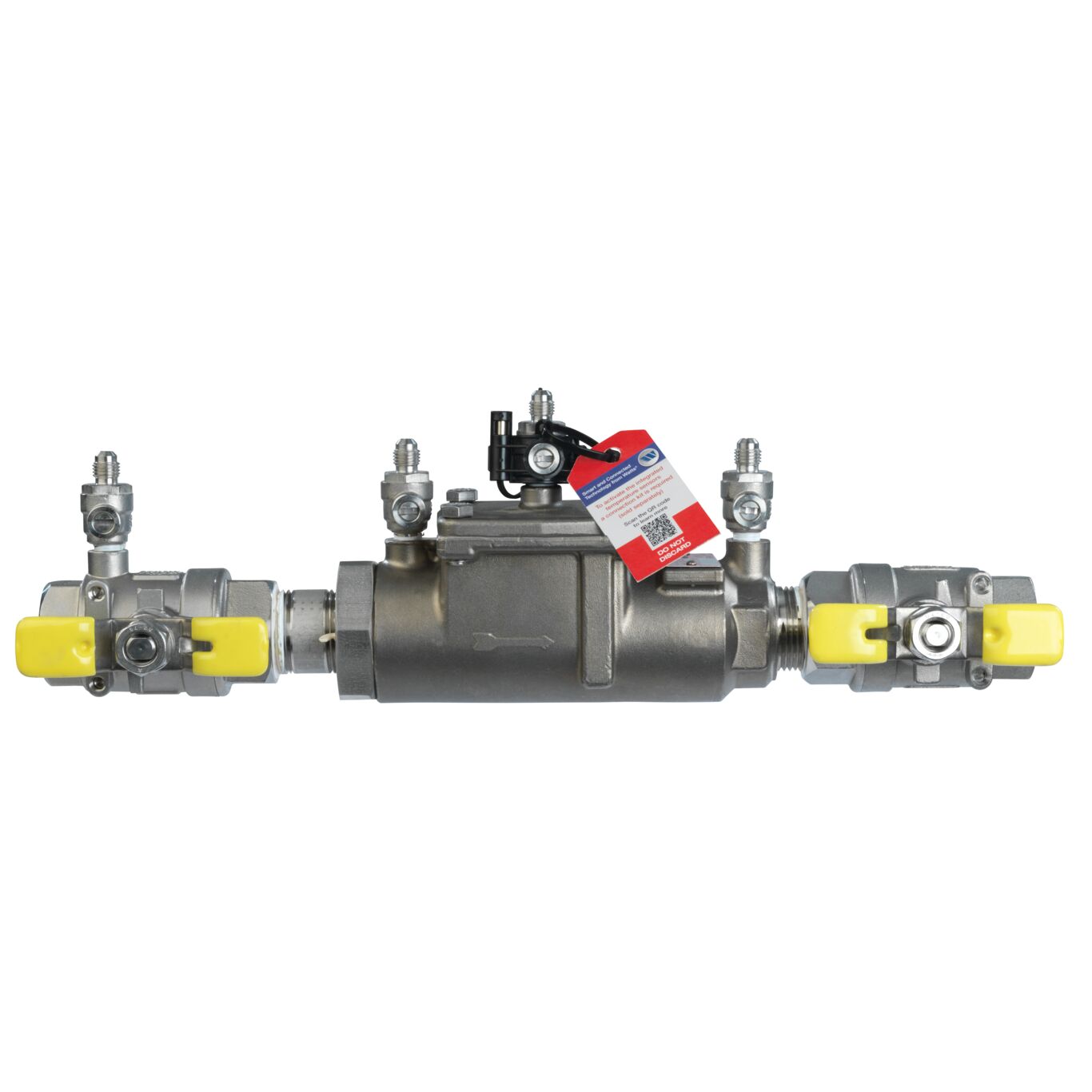

Series SS007 double check valve assembly backflow preventers include a freeze sensor for use with SentryPlus Alert® technology to signal facility personnel when temperature nears and reaches the freezing point. Freeze alerts feature available with add-on connection kit for Wi-Fi networks, building management systems (BMS), and irrigation management systems (IMS).

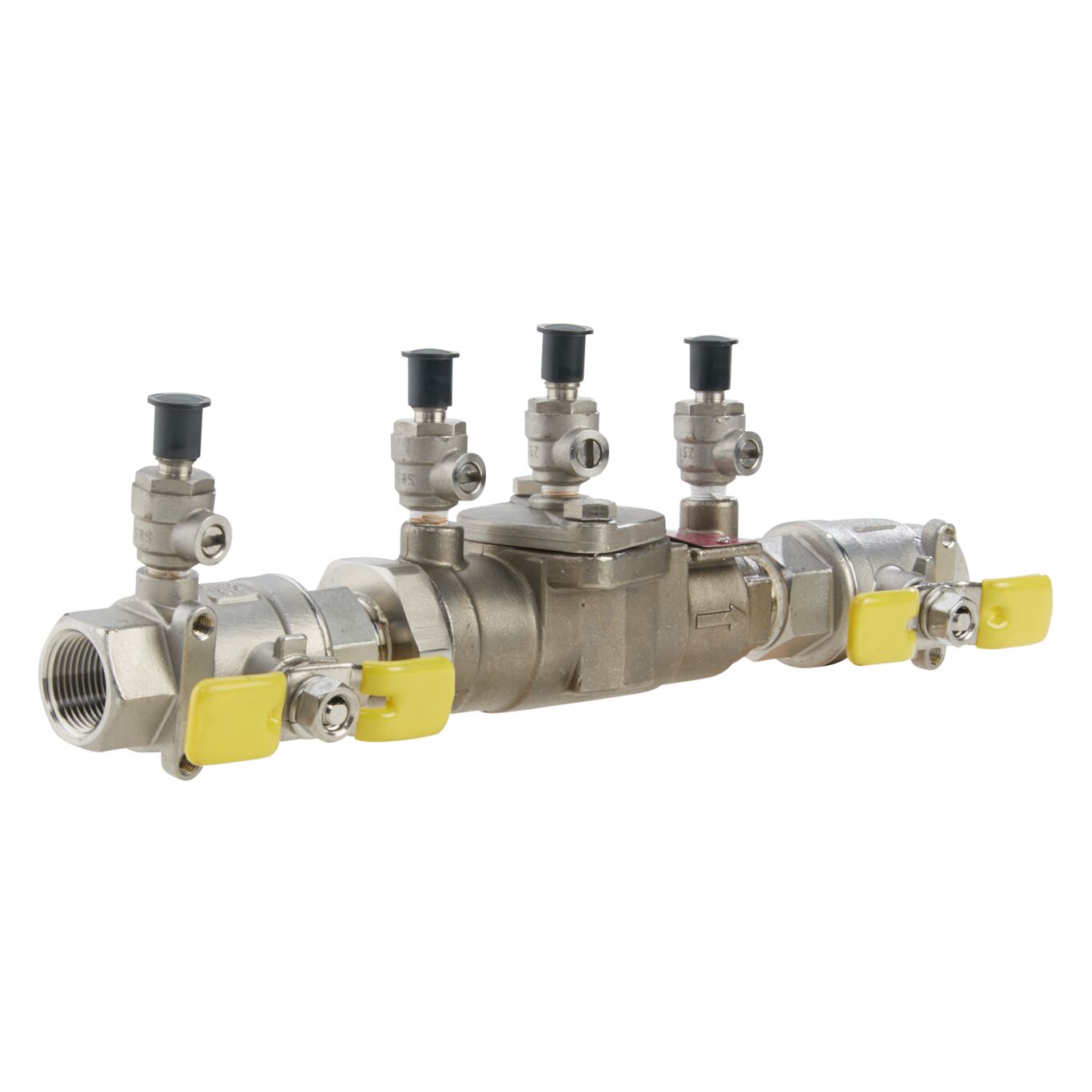

Series SS007 stainless steel double check valve assemblies provide protection to the potable water supply at non-health hazard cross-connections. Ideal in applications where the downstream liquid forms a composition that would damage bronze material or if eliminating trace elements of lead and copper is desired. Suitable for low-hazard installations found in industrial or chemical plants, pulp and paper industries, hospitals, and corrosive atmospheres. Maximum Working Pressure: 175 psi (12.06 bar).
To learn more visit: https://www.watts.com/freeze-detection
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. Some certification agencies allow you to search by product name and brand.
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific SS007
No results found
| Model | Product Used On - Series or Model | Kit Contents |
|---|---|---|
|
FP-BF-WiFi/BMS/IMS-FZ
Activation Kit |
</br>800M4FR, LF800M4FR, 800M4QT, LF800M4QT, 007, 007M1DCDA, LF007, SS007</br> |
Freeze Sensor in Mounting Clip, Standalone Sensor, Activation Module, 2 Wire Nuts, Mounting Hardware, Power Adapter, Quick Start Guide</br> |
|

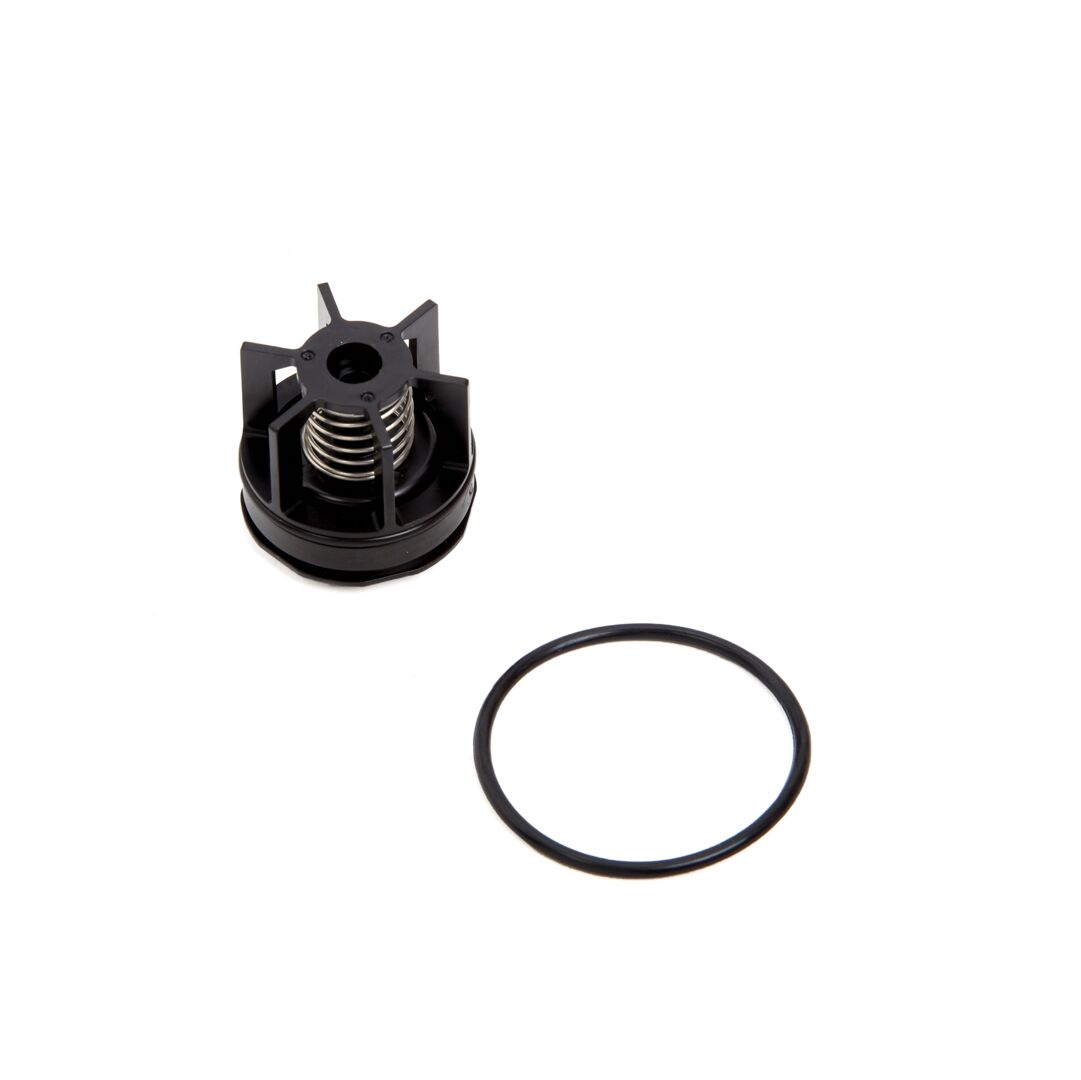

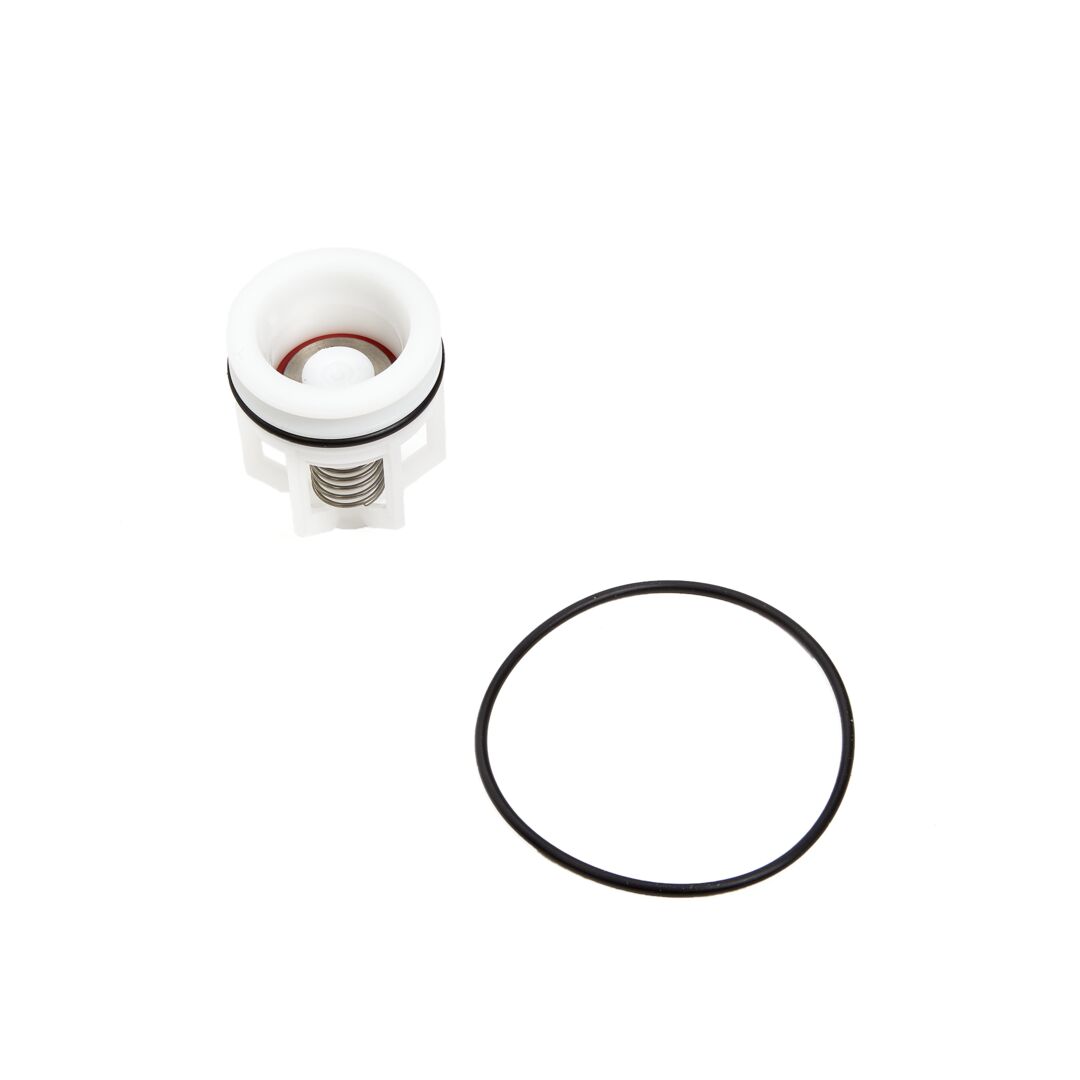

RK 007M1-CK4-SS
First or Second Check Kit |
</br>007M1</br> |
Seat, Seat O-ring, Disc Assembly, Spring, Check Cage, Cover O-ring</br> |
|

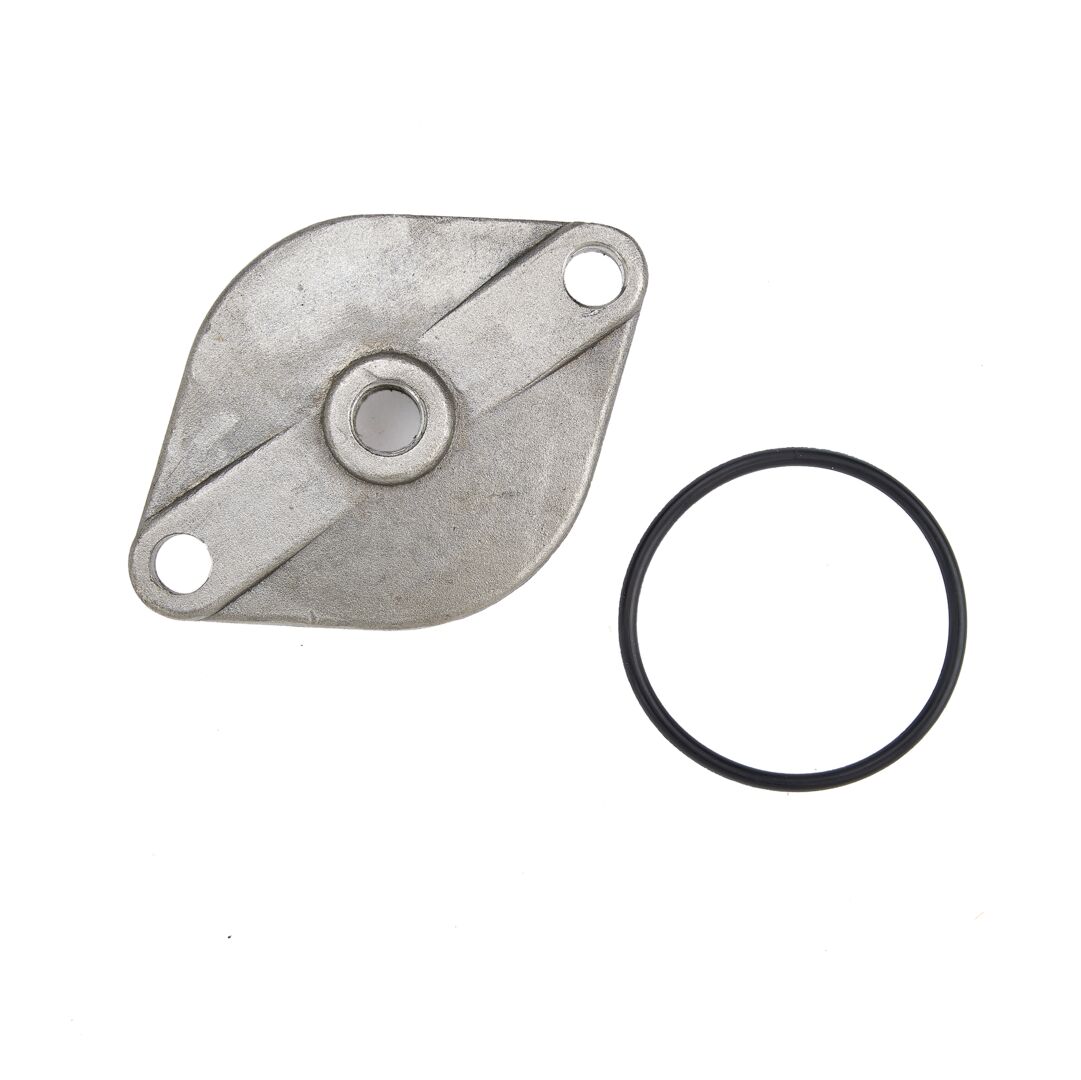

RK SS007M1-C
Cover Kit |
</br>007M1</br> |
Cover, Cover O-ring</br> |
|

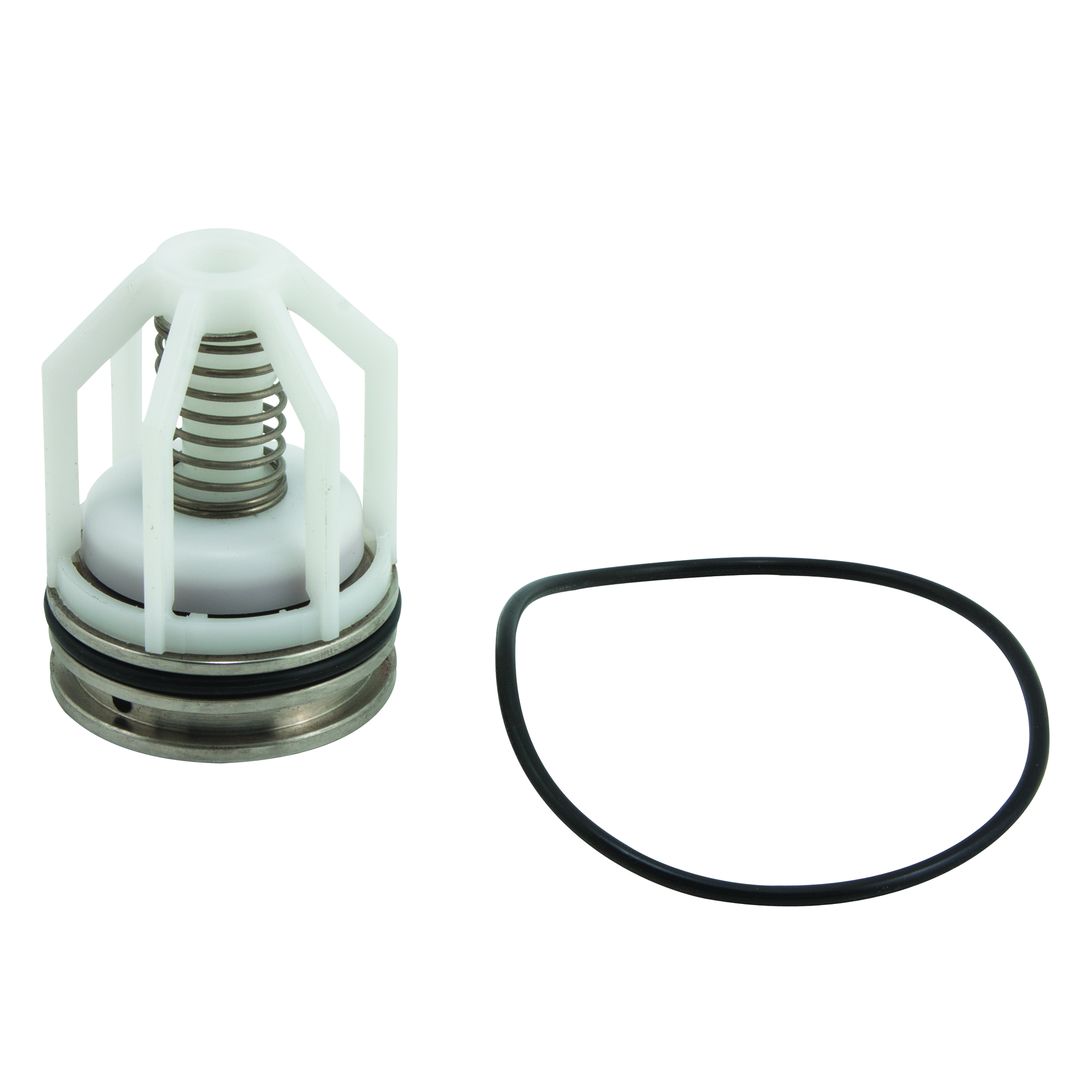

RK SS007M1-CK4
First or Second Check Kit |
</br>007M1</br> |
Seat, Seat O-ring, Disc Assembly, Spring, Check Cage, Cover O-ring</br> |
|

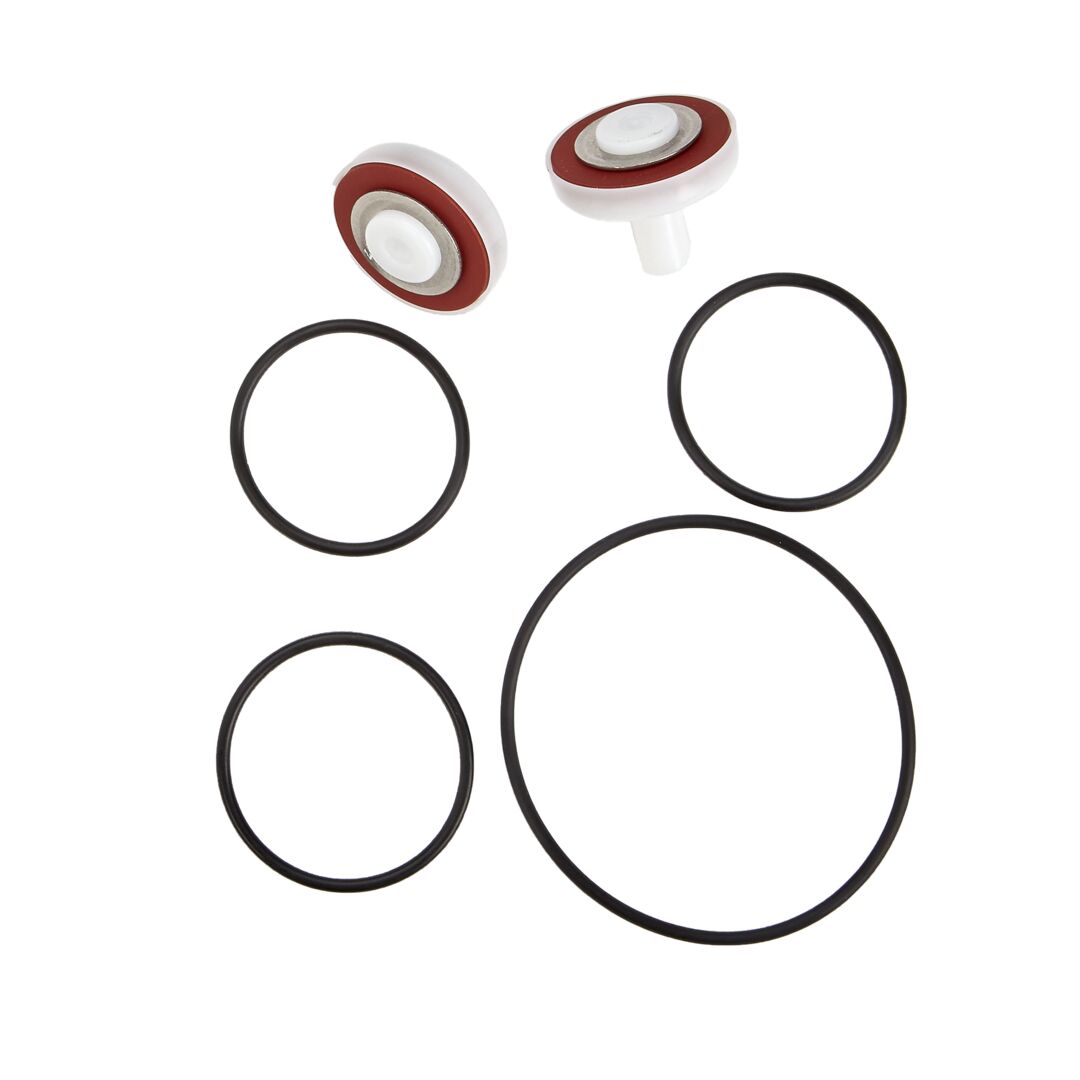

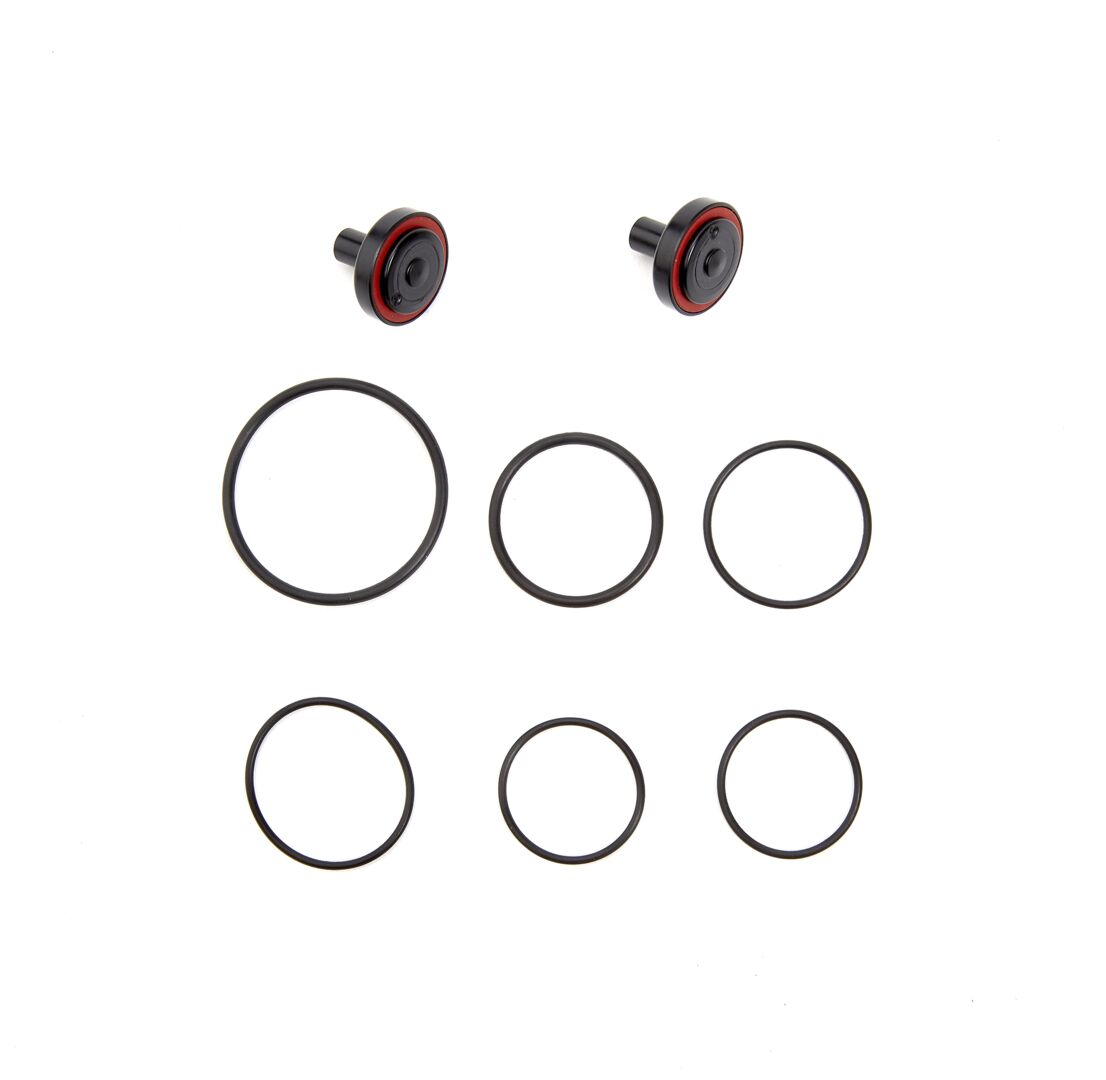

RK SS007M1-RT
Complete Rubber Parts Kit |
</br>SS007M1</br> |
Cover O-ring, 2 Disc Assemblies, 2 Seat O-rings</br> |
|

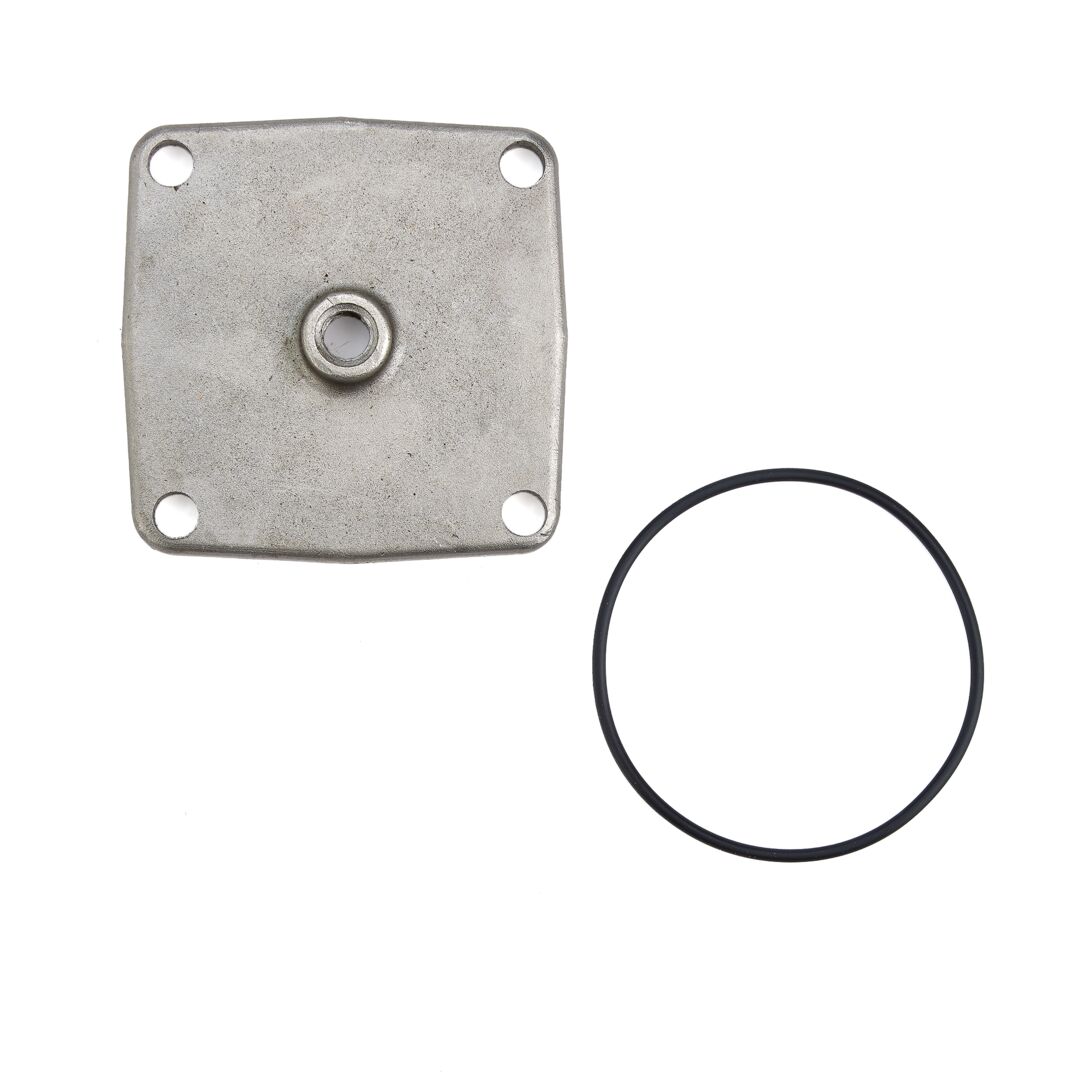

RK SS007M3-C
Cover Kit |
</br>007M3</br> |
Cover, Cover O-ring</br> |
|

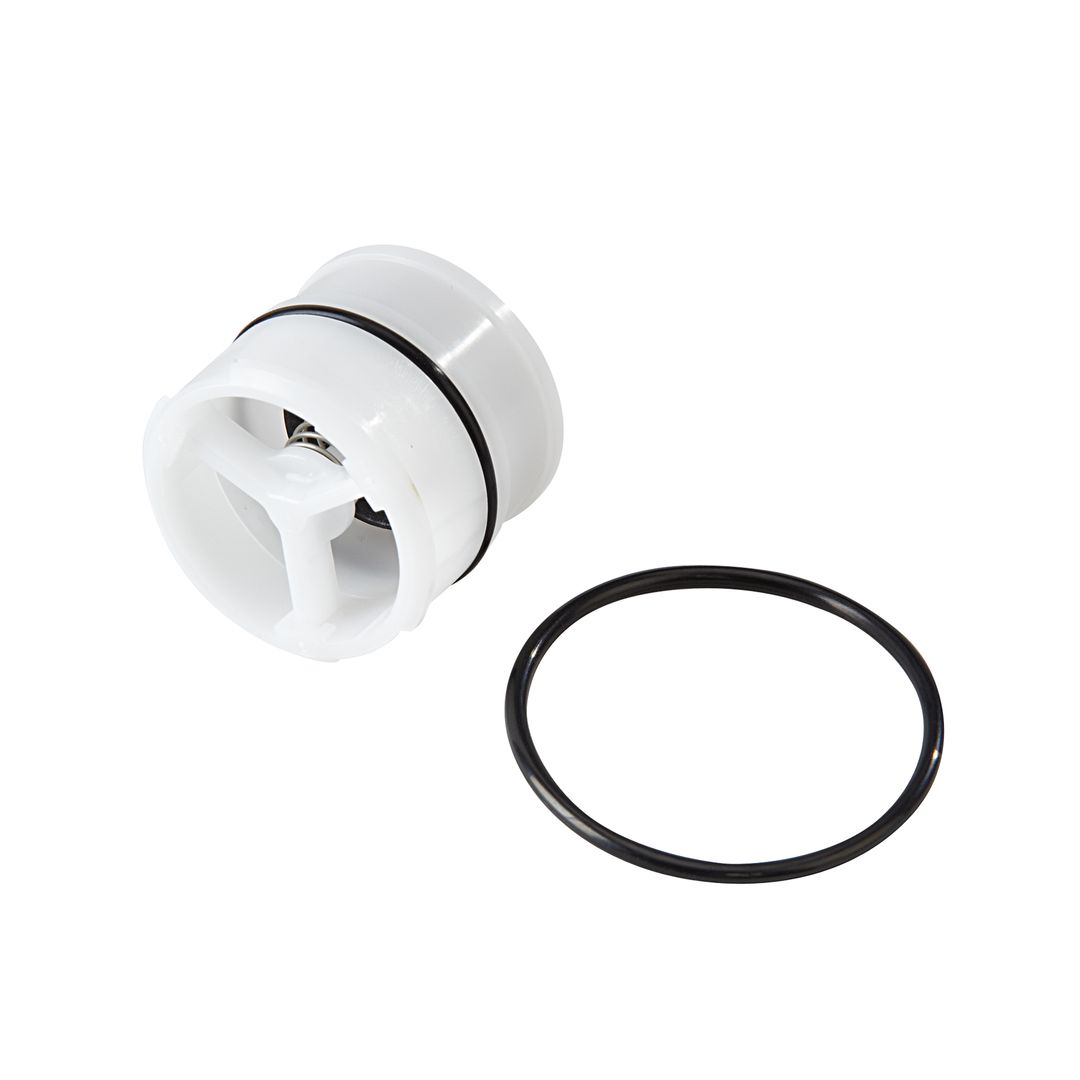

RK SS007M3-CK1
First Check Kit |
</br>007M3</br> |
Seat, Seat O-ring, Disc Assembly, Spring, Check Cage, Cover O-ring</br> |
|
RK SS007M3-CK2
Second Check Kit |
</br>007M3</br> |
Seat, Seat O-ring, Disc Assembly, Spring, Check Cage, Cover O-ring</br> |
|
RK SS007M3-RT
Complete Rubber Parts Kit |
</br>SS007M3</br> |
Cover O-ring, 2 Disc Assemblies, 2 Seat O-rings</br> |
|
FP-BF-BMS-IMS-FZ
Activation Kit |
</br>007, 007M1DCDA, LF007, SS007, 800M4FR, LF800M4FR, 800M4QT, LF800M4QT</br> |
Freeze Sensor in Mounting Clip, Activation Module with Mounting Hardware, 2 Wire Nuts, Power Adapter</br> |
