957-OSY-GXG 6

Part of the 957 Series

Ordering Code: 0112065

UPC: 098268568301

Lead Free: YES

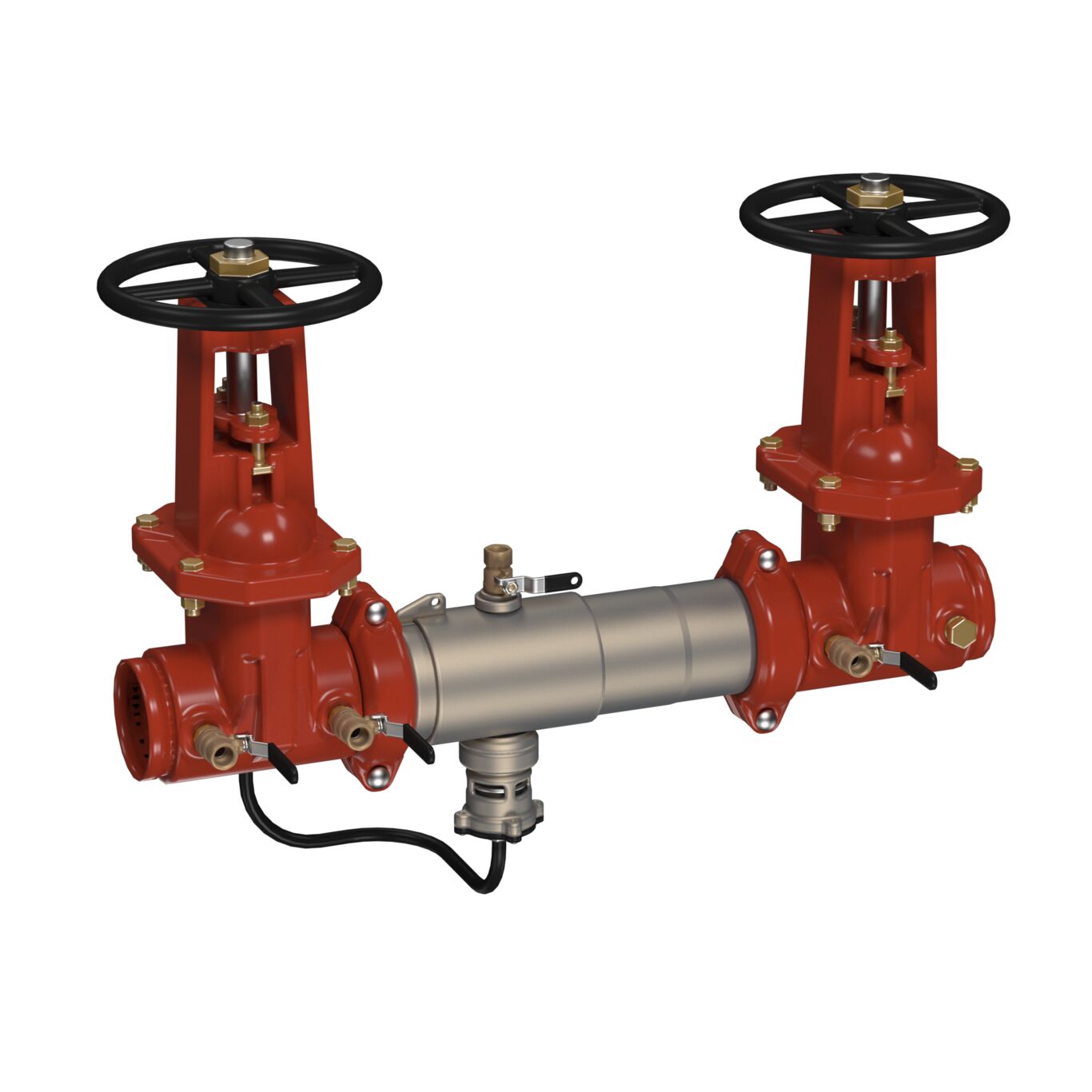

6 In Ss Reduced Pressure Zone Assembly, Osy Shutoff Valves, Grooved Inlet X Grooved Outlet

This 6 IN lead free stainless steel reduced pressure zone assembly has OSY groove by groove gate valves that show if the valve is open or closed and prevent stem corrosion. Ideally suited for referenced cross-connections identified as health hazard continuous pressure applications, it prevents the backflow of contaminated water into the potable water supply and protects against backsiphonage and backpressure. The easy maintenance assembly consists of positive seated torsion spring check modules, bottom mounted differential pressure relief valve, FM/UL outside stem and yoke resilient seated gate valves and top mounted test cocks. The temperature range is 33 to 140 degrees F (0.5 to 60 degrees C). The maximum working pressure is 175 psi (12.1 bar).

Product Features

  • Groove by groove gate valves
  • Light weight lead free stainless steel body for long term corrosion protection
  • Patented torsion spring design
  • Short lay length for retrofits
Backflow Preventer Type Reduced Pressure Zone Assembly
Body Finish Stainless Steel
Body Material Stainless Steel
Body Pattern Inline
Brand Name Watts
EANUCCCode 098268568301
Hazard Protection Level Health Hazard
Inlet Connection Size 6 IN
Inlet Connection Size-Metric 152.4 MM
Inlet Connection Type Grooved Joint
Inlet Shutoff Valve Type Outside Stem And Yoke Gate Valve
Inlet Thread Type Does Not Apply To Product
Lead Free YES
Maximum Temperature-Fahrenheit 140
Maximum Working Pressure-BAR 12.10
Maximum Working Pressure-PSI 175
Meter Type No Meter
Minimum Temperature - Celsius 1.00
Minimum Temperature-Fahrenheit 33
Outlet Connection Size 6 IN
Outlet Connection Type Grooved Joint
Outlet Shutoff Valve Type Outside Stem And Yoke Gate Valve
Outlet Thread Type Does Not Apply To Product
Part Number 0112065
Pressure Operation Continuous
Protection Type Backpressure and Backsiphonage
Seat Material Engineered Plastic
Series 957
Strainer No
Type Valve to Accessory
