957N-QT 4 Watts

Part of the 957 Series

Ordering Code: 0111670

UPC: 098268124774

Lead Free: Not In Scope

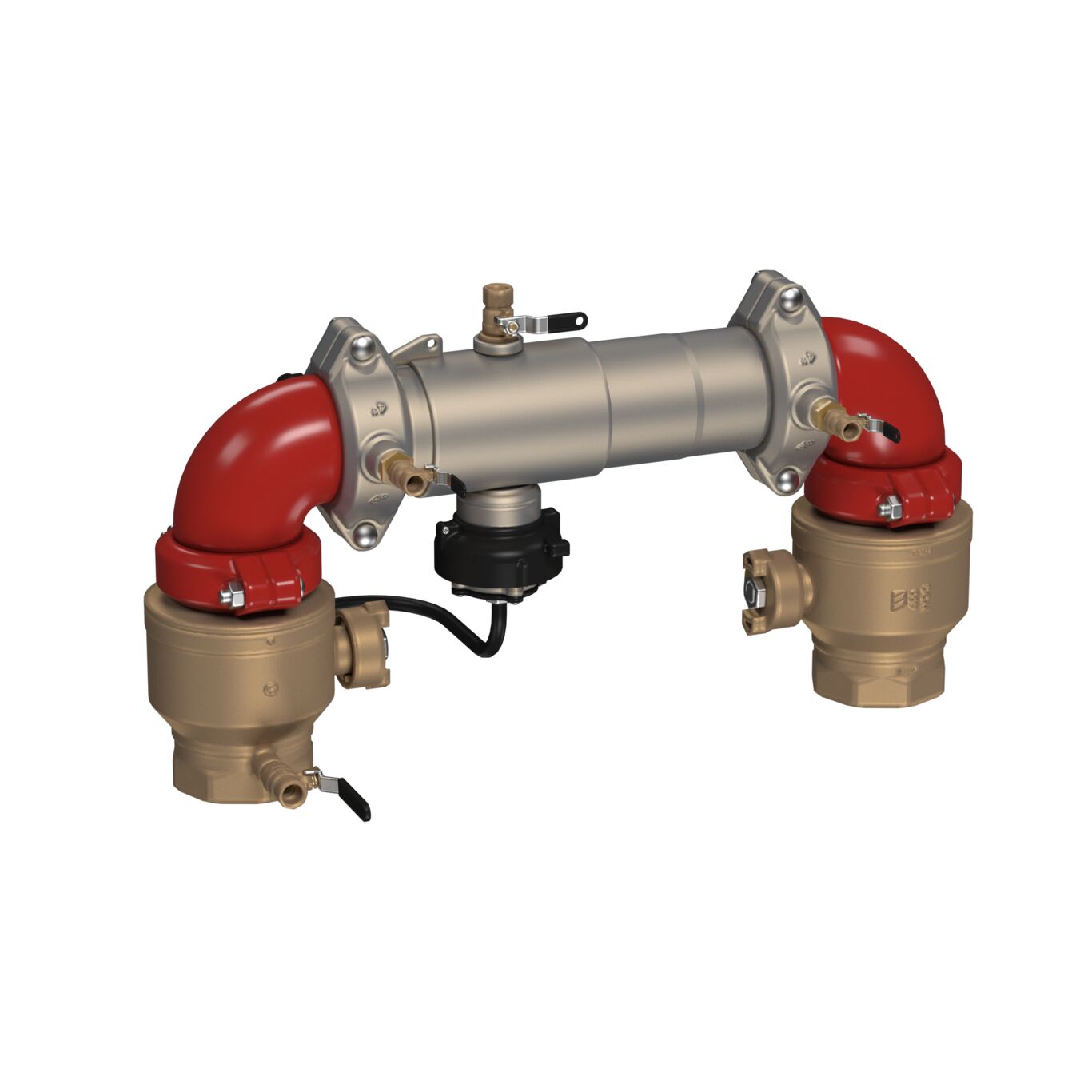

4 In Ss Reduced Pressure Zone Assembly, Quarter Turn Ball Valve Shutoffs, N Pattern

This 4 inch reduced pressure zone assembly is designed to prevent the reverse flow of fire protection substances and water of non-potable quality from being pumped or siphoned into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. This extremely compact and lighter than a traditional designed assembly is approved for horizontal N pattern installation as long as the backflow assembly is installed in accordance with the direction of the flow arrow. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards and from other contaminants found at the service line entrance. This assembly consists of a stainless steel body with a quick access sleeve, torsion spring check valves, quarter turn ball valves, test cocks, and a corrosive resistant stainless steel bottom mounted pressure relief valve.

Product Features

  • 304 (Schedule 40) stainless steel housing and sleeve
  • The maximum working pressure is 175 PSI (12.06 BAR)
  • Patented torsion spring check modules for ease of serviceability
  • Replaceable check disc rubber
  • Compact design allows small enclosures to be used
  • Approved for horizontal N pattern installation
  • Quarter turn ball valves
  • Bottom mounted cast stainless steel relief valve
  • Groove couplings for ease of installation and pipe alignment
Specifications
Backflow Preventer Type Reduced Pressure Zone Assembly
Body Finish Stainless Steel
Body Material Stainless Steel
Body Pattern N-Pattern
BrandName Watts
Bypass No
Cap And Tether No
Elbow Fitting No
Hazard Protection Level Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 4 IN
Inlet Connection Type Female Threaded
Inlet Shutoff Valve Type Quarter Turn Ball Valve
Inlet Thread Type Does Not Apply To Product
LeadFree Not In Scope
Maximum Temperature-Fahrenheit 110
Maximum Working Pressure-BAR 12.10
Maximum Working Pressure-PSI 175
Meter Type No Meter
Minimum Temperature-Fahrenheit 33
ModelNumber 957N-QT 4
Outlet Connection Size 4 IN
Outlet Connection Type Does Not Apply To Product
Outlet Shutoff Valve Type Quarter Turn Ball Valve
Outlet Thread Type Does Not Apply To Product
Part Number 0111670
Polymer Coating No
Pressure Operation Continuous
Protection Type Backpressure and Backsiphonage
Series 957
Strainer No
