994-DOSY 4 Watts

Part of the 994 Series

Ordering Code: 0439414

UPC: 098268345247

Lead Free: YES

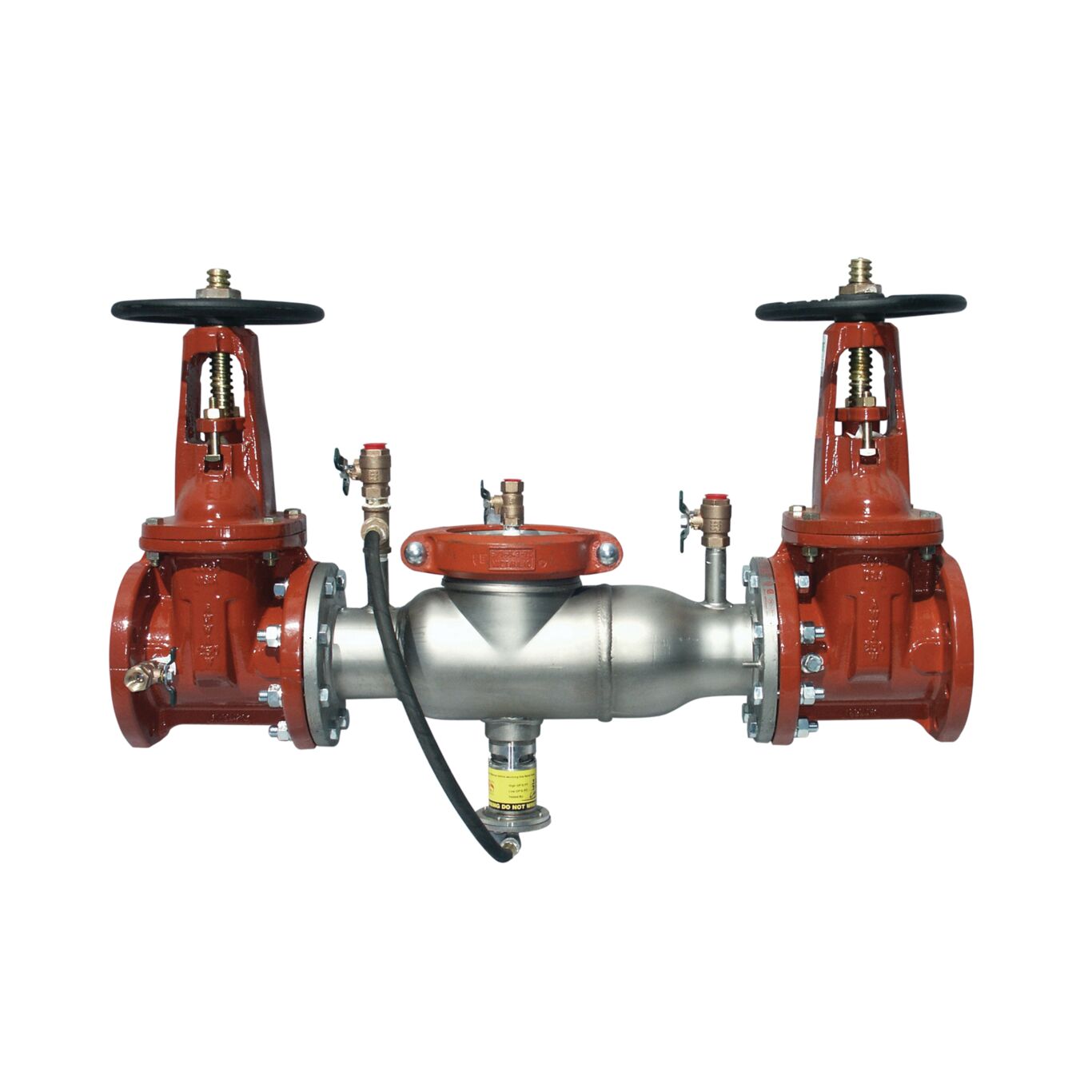

4 In Ss Reduced Pressure Zone Assembly, Domestic Osy Shutoffs, Short Lay Length

This 4 inch reduced pressure zone assembly is designed to prevent the reverse flow of fire protection substances and water of non-potable quality from being pumped or siphoned into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards and from other contaminants found at the service line entrance. This assembly consists of a short lay length lead free stainless steel body, test cocks, corrosive resistant stainless steel bottom mounted relief valve, torsion spring check valves, and domestic outside stem and yoke resilient seated gate valves.

Product Features

  • Thermoplastic check valves with stainless steel hinge pins for trouble-free operation
  • Torsion spring check valves provides maximum flow at low pressure drop
  • Compact construction for smaller enclosures
  • Short end to end dimensions makes retrofit easy
  • Stainless steel body
  • Health hazard application
  • Bottom mounted relief valve reduces clearance requirements when installed against an outside wall
  • Domestic outside stem and yoke gate valves
  • No special tools required for servicing
Specifications
Backflow Preventer Type Reduced Pressure Zone Assembly
Body Finish Stainless Steel
Body Material Stainless Steel
Body Pattern Does Not Apply To Product
BrandName Watts
Bypass No
Bypass Size Does Not Apply To Product
Cap And Tether No
Disc Material Rubber
Elbow Fitting No
Hazard Protection Level Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 4 IN
Inlet Connection Type Flanged Joint
Inlet Shutoff Valve Type Outside Stem And Yoke Gate Valve
Inlet Thread Type Does Not Apply To Product
LeadFree YES
Maximum Temperature-Fahrenheit 110
Maximum Working Pressure-BAR 12.10
Maximum Working Pressure-PSI 175
Meter Type No Meter
Minimum Temperature-Fahrenheit 33
ModelNumber 994-DOSY 4
Outlet Connection Size 4 IN
Outlet Connection Type Flanged Joint
Outlet Shutoff Valve Type Outside Stem And Yoke Gate Valve
Outlet Thread Type Does Not Apply To Product
Part Number 0439414
Polymer Coating No
Pressure Operation Continuous
Protection Type Backpressure and Backsiphonage
Seat Material Engineered Plastic
Series 994
Strainer No
