SS009M3-QT 1/2

Discontinued - Replaced By: SS009M3-QT-FS 1/2

Part of the SS009 Series

Ordering Code: 0062967

UPC: 098268817096

Lead Free: YES

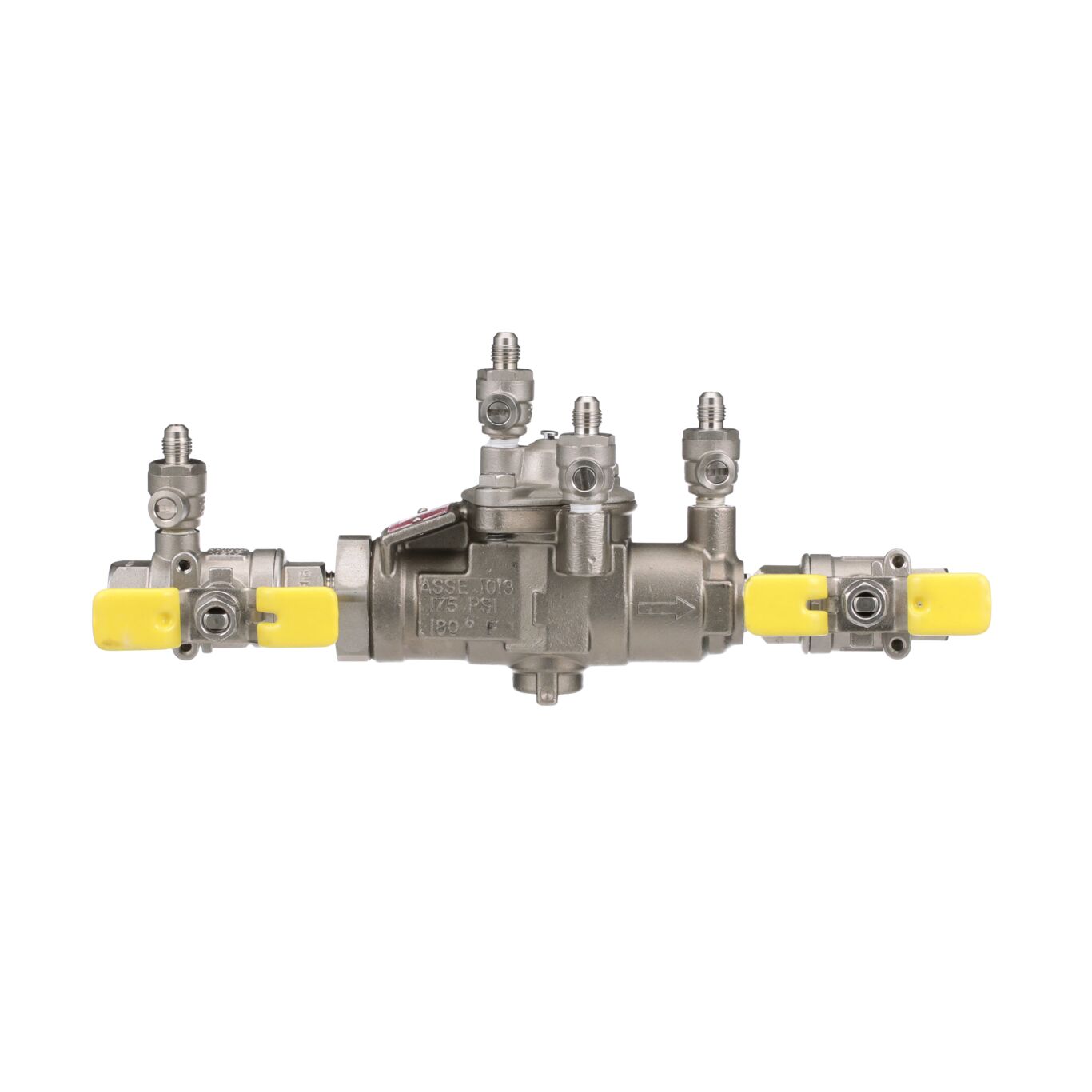

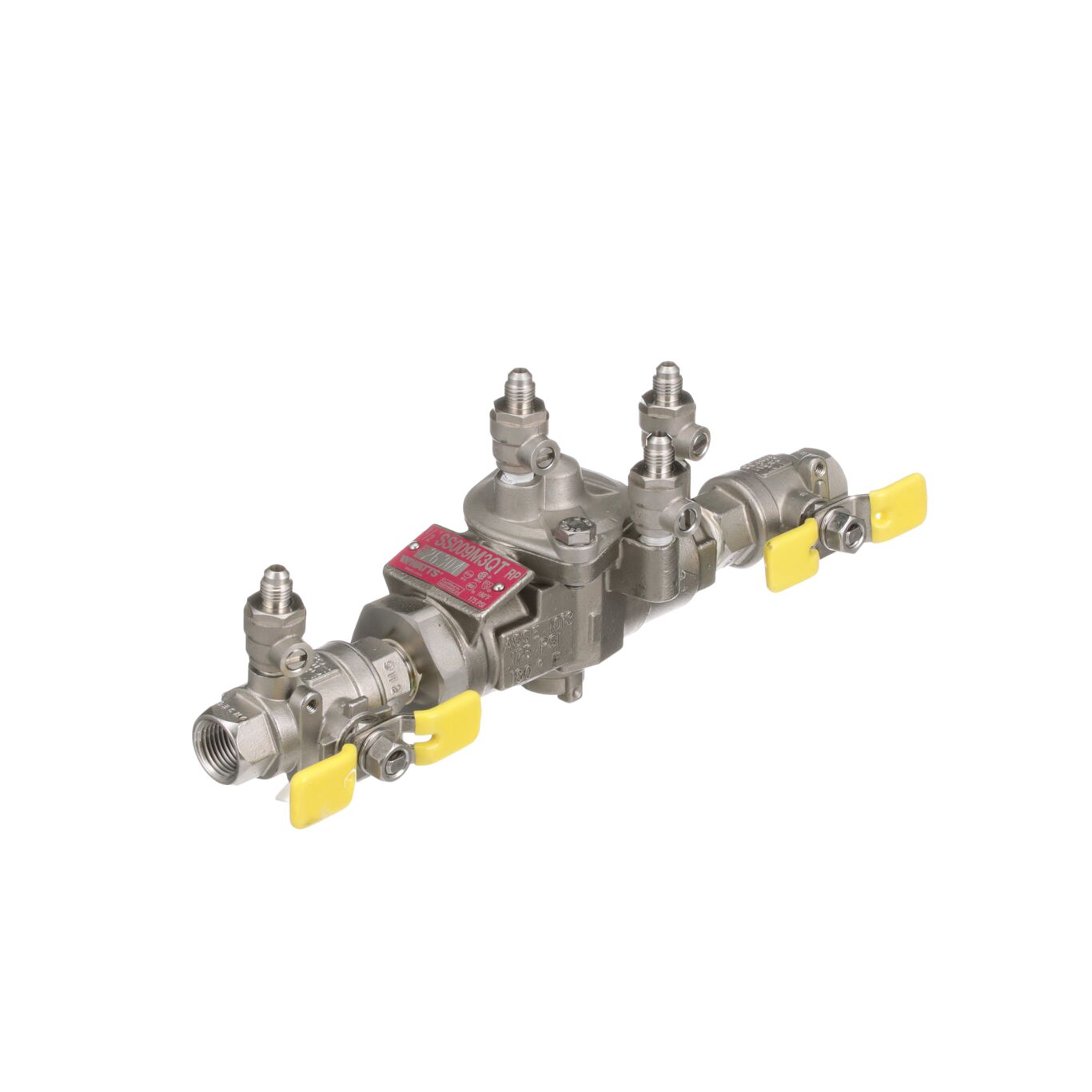

1/2 IN Stainless Steel Reduced Pressure Zone Backflow Preventer Assembly, Quarter Turn Shutoff Valves, Tee Handles

  • Investment cast 316 stainless steel assembly for corrosion resistance
  • NPT inlet and outlet connections
  • Quarter turn full port resilient seated ball valve shutoffs
  • Top mounted vandal resistant EZ-TC test cocks provide easy access for testing
  • Modular check construction featuring nonreversible checks with captured springs for simplified servicing
  • Internal relief valve for right and left hand installations
  • True line sized check modules open further allowing dirt and debris to pass freely through the valve reducing fouling problems
  • Replaceable seats for an economical repair
  • Bolted on, top entry single access cover for ease of maintenance
Specifications
Backflow Preventer Type Reduced Pressure Zone Assembly
Body Finish Stainless Steel
Body Material Stainless Steel
Body Pattern Inline
Brand Watts
Buy American Act Compliant NO
Bypass No
Bypass Size Does Not Apply To Product
Cap And Tether No
Disc Material Silicone
EAN 098268817096
Elbow Fitting No
GDS Status Registered
Hazard Protection Level Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 1/2 IN
Inlet Connection Size-Metric 15 MM
Inlet Connection Type Female Threaded
Inlet Shutoff Valve Type Quarter Turn Ball Valve
Inlet Thread Type NPT
Lead Free YES
Maximum Temperature-Fahrenheit 180
Maximum Working Pressure-BAR 12.10
Maximum Working Pressure-PSI 175
Meter Type No Meter
Minimum Temperature - Celsius 0.50
Minimum Temperature-Fahrenheit 33
Outlet Connection Size 1/2 IN
Outlet Connection Type Female Threaded
Outlet Shutoff Valve Type Quarter Turn Ball Valve
Outlet Thread Type NPT
Part Number 0062967
Polymer Coating No
Pressure Operation Continuous
Protection Type Backpressure and Backsiphonage
Seat Material Engineered Plastic
Series SS009
Strainer No
Tradename None
