U009M2-A-PC-QT 1 1/2

Part of the U009 Series

Ordering Code: 0063007

UPC: 098268566970

Lead Free: NO

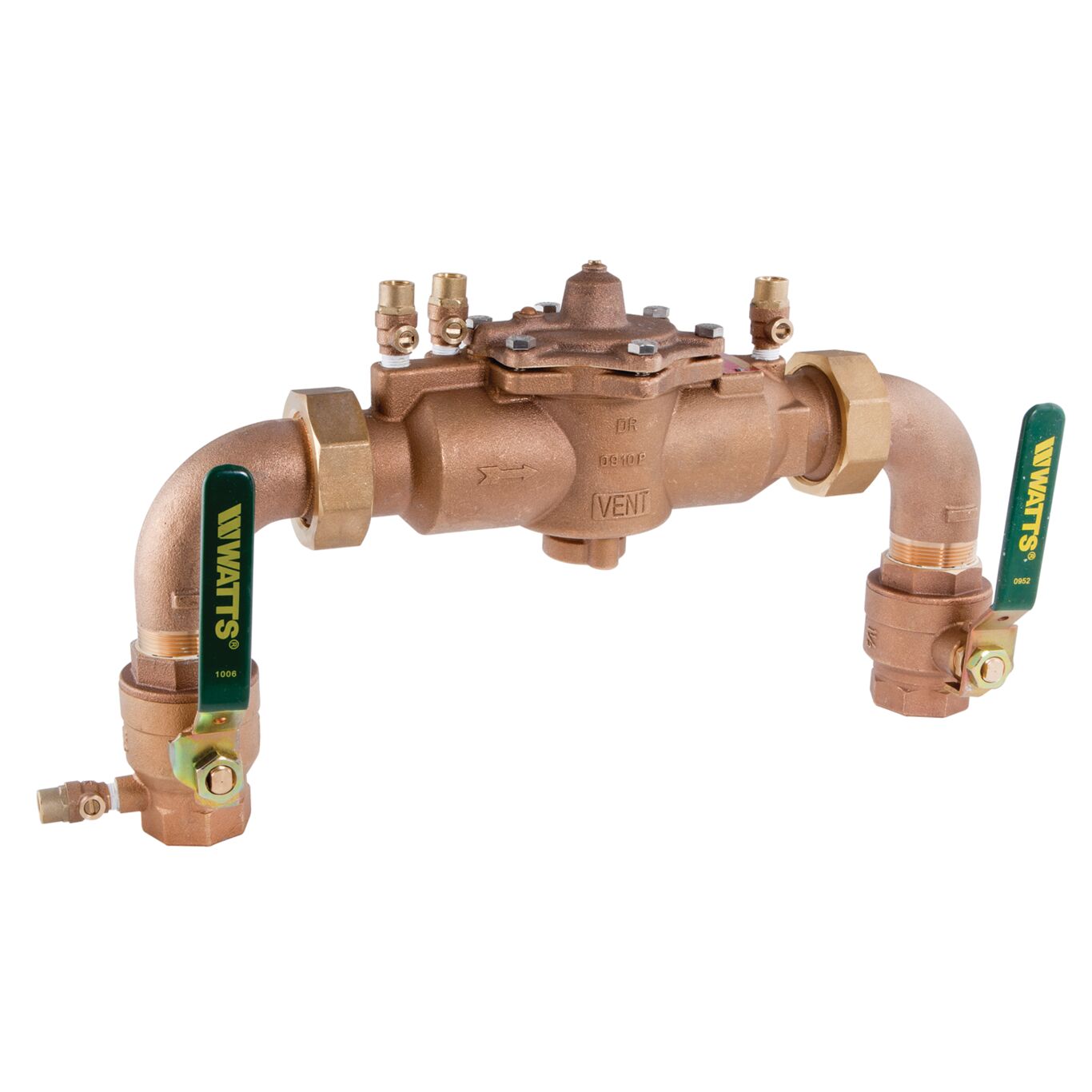

1 1/2 In Bronze Reduced Pressure Zone Assembly, Quarter Turn Shutoff Valves, Union Connections, Elbows, Internal Polymer Coating

This 1 1/2 inch reduced pressure zone assembly is designed to prevent the flow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards and for contaminants at the service line entrance. This assembly consists of a bronze body, union connections, internal polymer coating, quarter turn ball valve shutoffs with tee handles, top mounted test cocks, two in-line independent check valves, captured springs, and replaceable check seats with an internal relief valve for reduced space requirements.

Product Features

  • Replaceable seats for an economical repair
  • Test cocks are screwdriver slotted
  • Quarter turn full port resilient seated ball valve shutoffs
  • Bronze body construction for durability
  • Elbow fittings for 360 degree rotation
  • Unique swivel union inlet and outlet connections
  • Internal relief valve for reduced installation clearances
  • Captured springs for safe maintenance
  • Internal polymer coating provides extended corrosion protection
Backflow Preventer Type Reduced Pressure Zone Assembly
Body Finish Bronze
Body Material Bronze
Body Pattern Inline
Brand Name Watts
Bypass No
Cap And Tether No
Disc Material Silicone
EANUCCCode 098268566970
Elbow Fitting Yes
Hazard Protection Level Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 1 1/2 IN
Inlet Connection Size-Metric 40 MM
Inlet Connection Type Union Joint
Inlet Shutoff Valve Type Quarter Turn Ball Valve
Inlet Thread Type NPT
Lead Free NO
Maximum Temperature-Fahrenheit 180
Maximum Working Pressure-BAR 12.00
Maximum Working Pressure-PSI 175
Meter Type No Meter
Minimum Temperature - Celsius 0.50
Minimum Temperature-Fahrenheit 33
Outlet Connection Size 1 1/2 IN
Outlet Connection Type Union Joint
Outlet Shutoff Valve Type Quarter Turn Ball Valve
Outlet Thread Type NPT
Part Number 0063007
Polymer Coating Yes
Pressure Operation Continuous
Protection Type Backpressure and Backsiphonage
Seat Material Stainless Steel
Series U009
Strainer No
Type Valve to Accessory
