U009

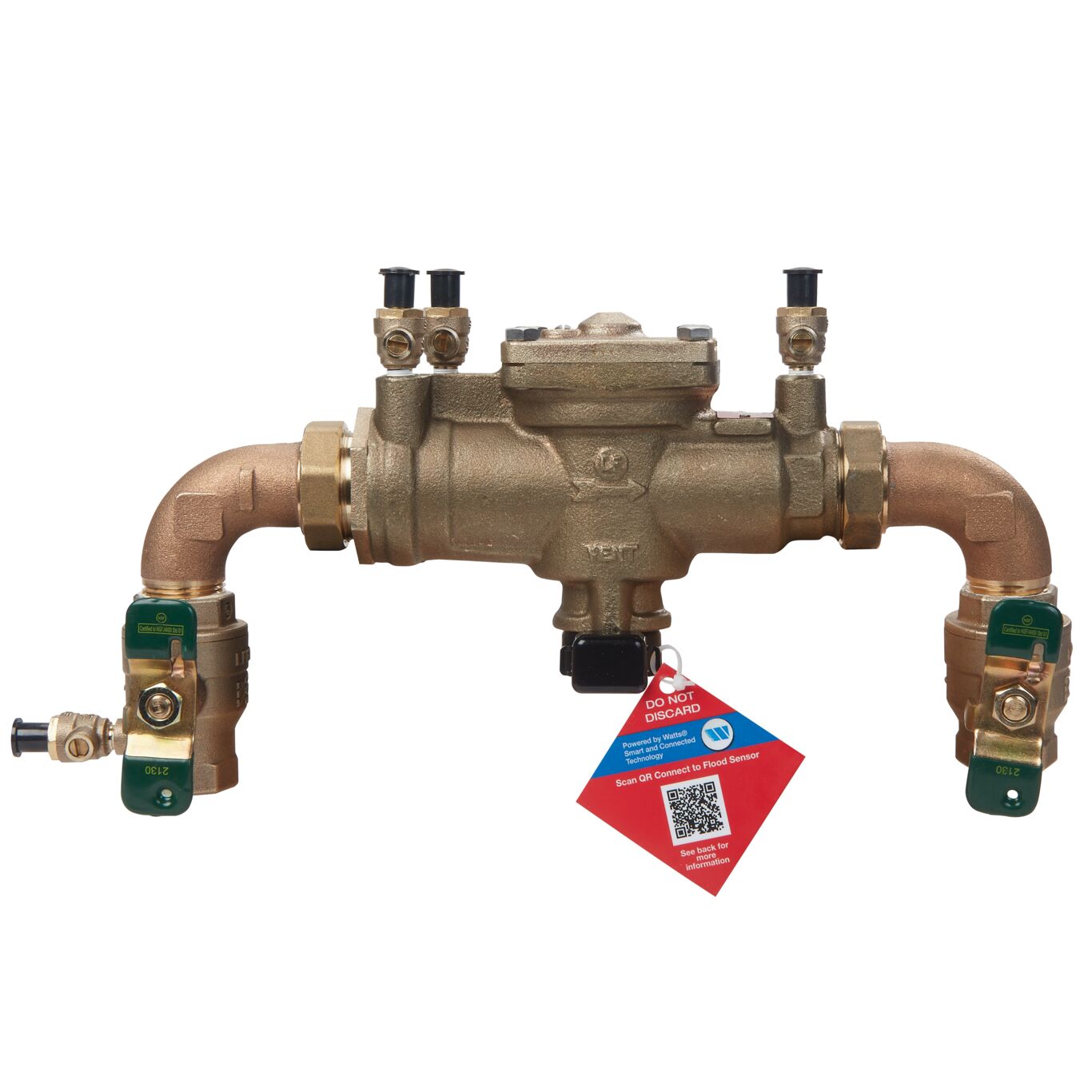

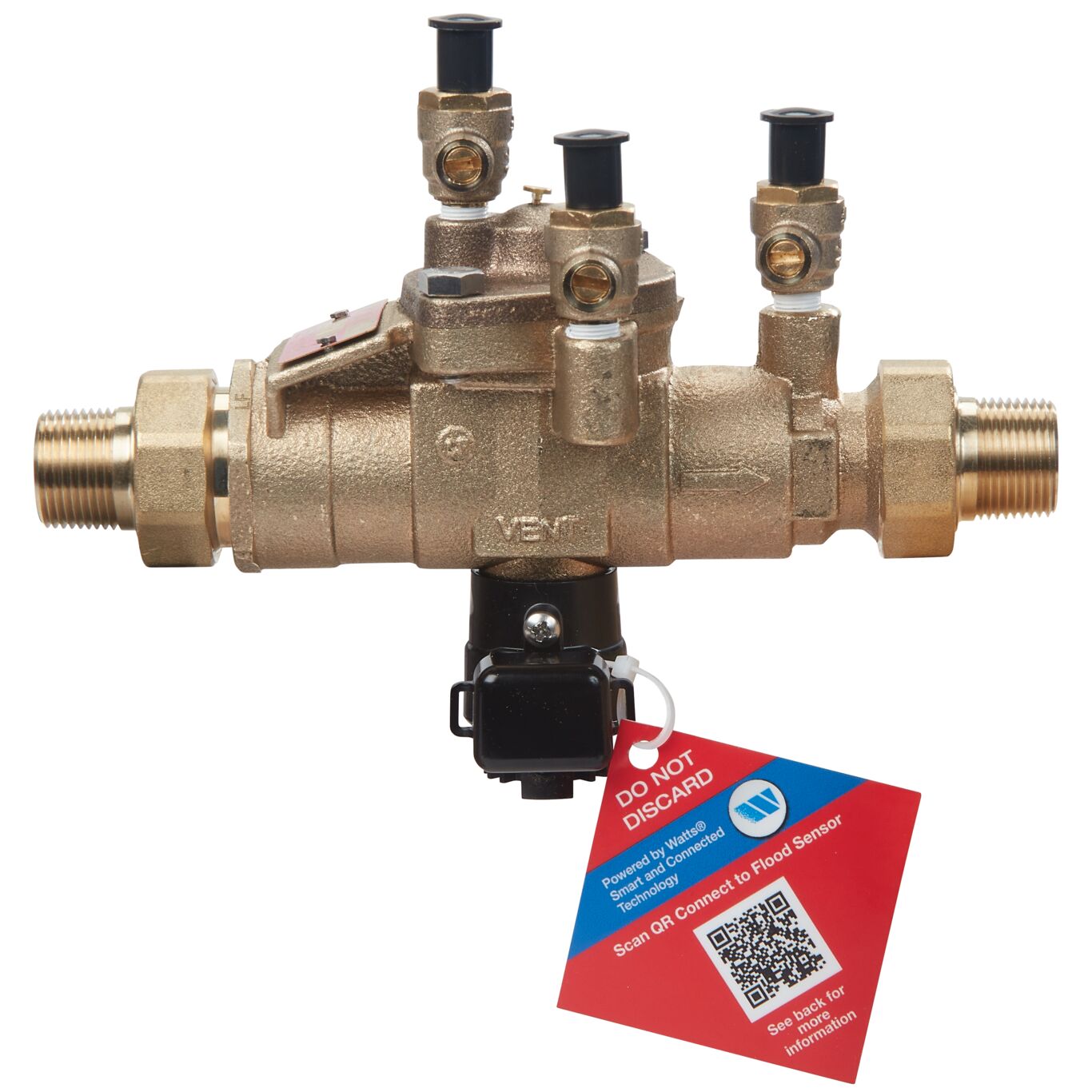

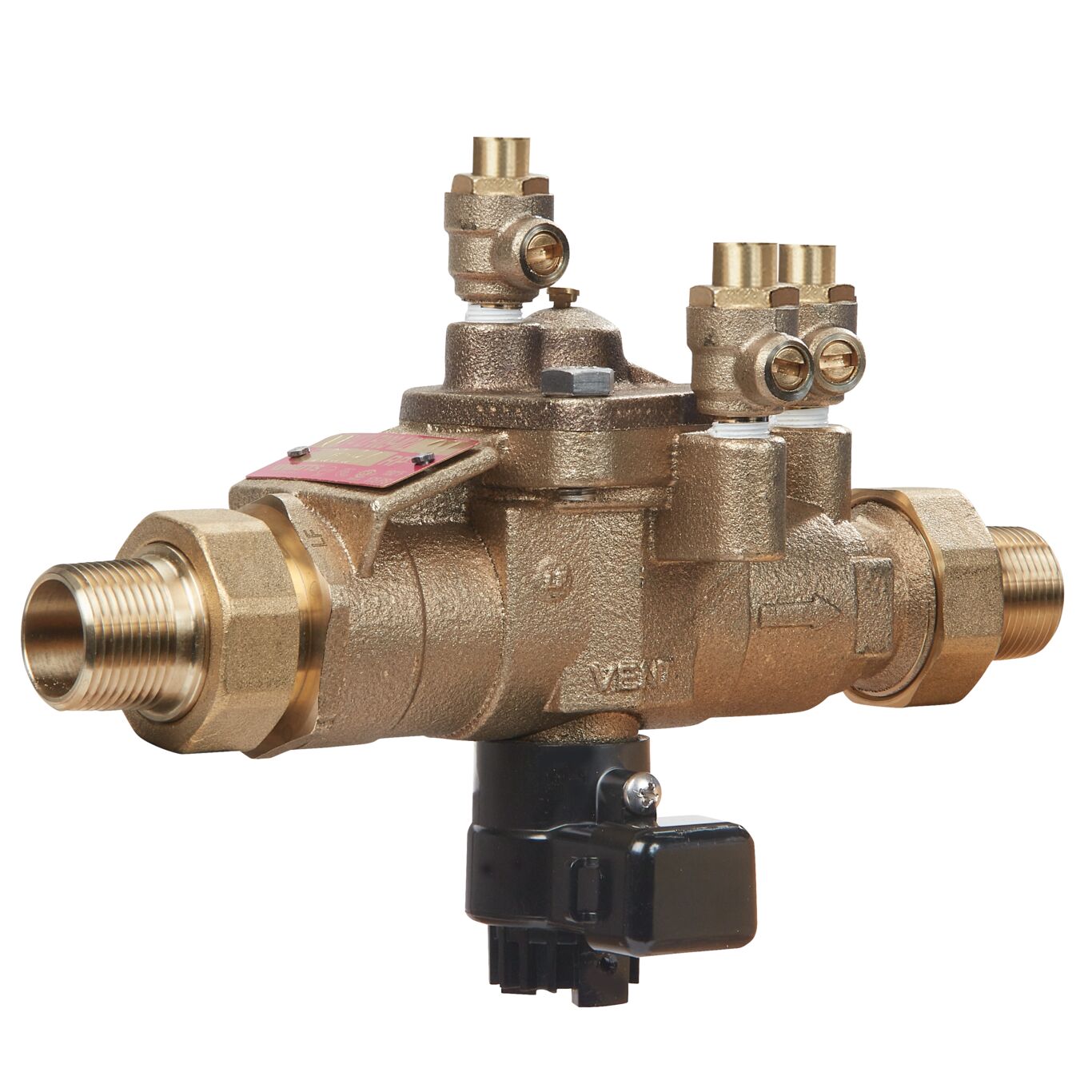

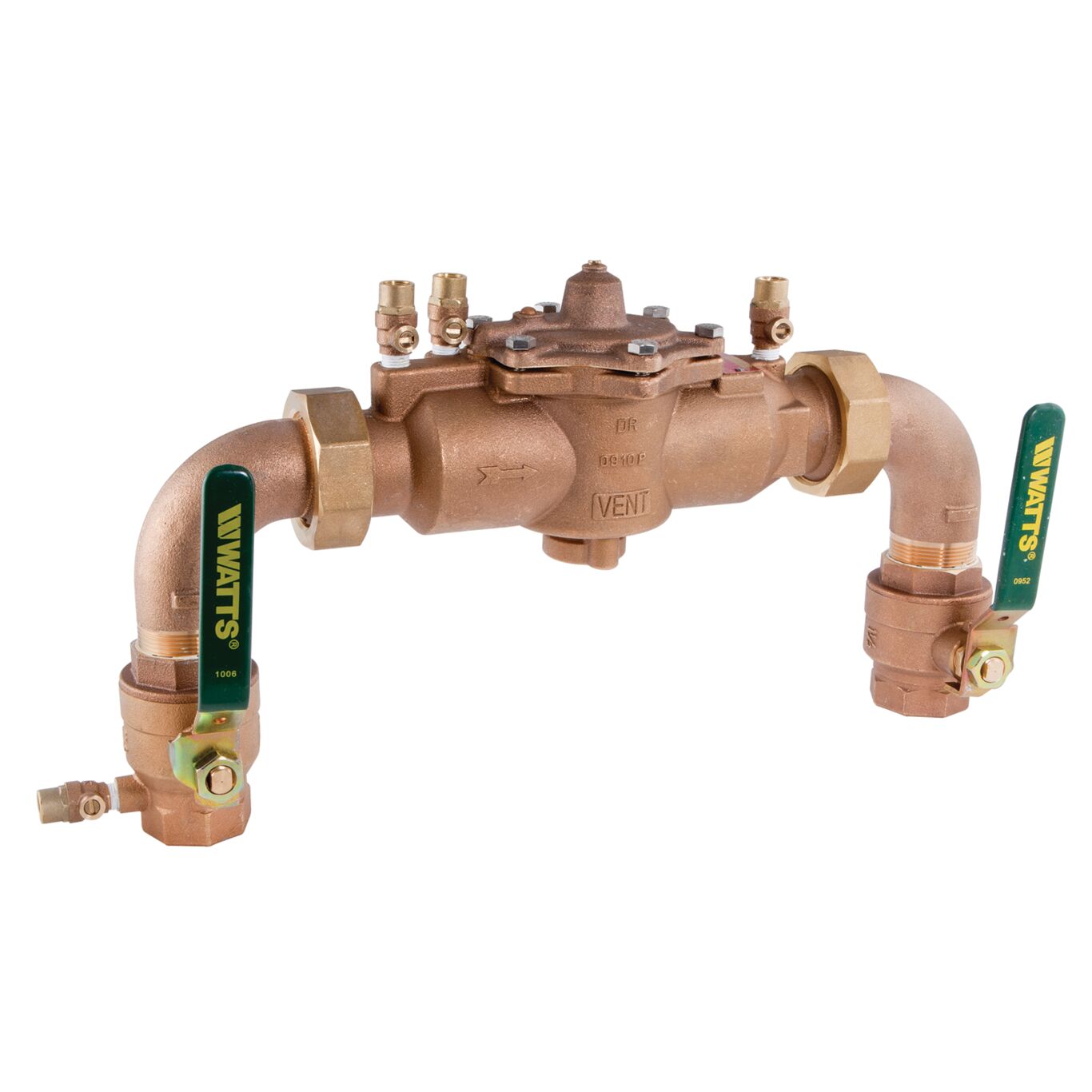

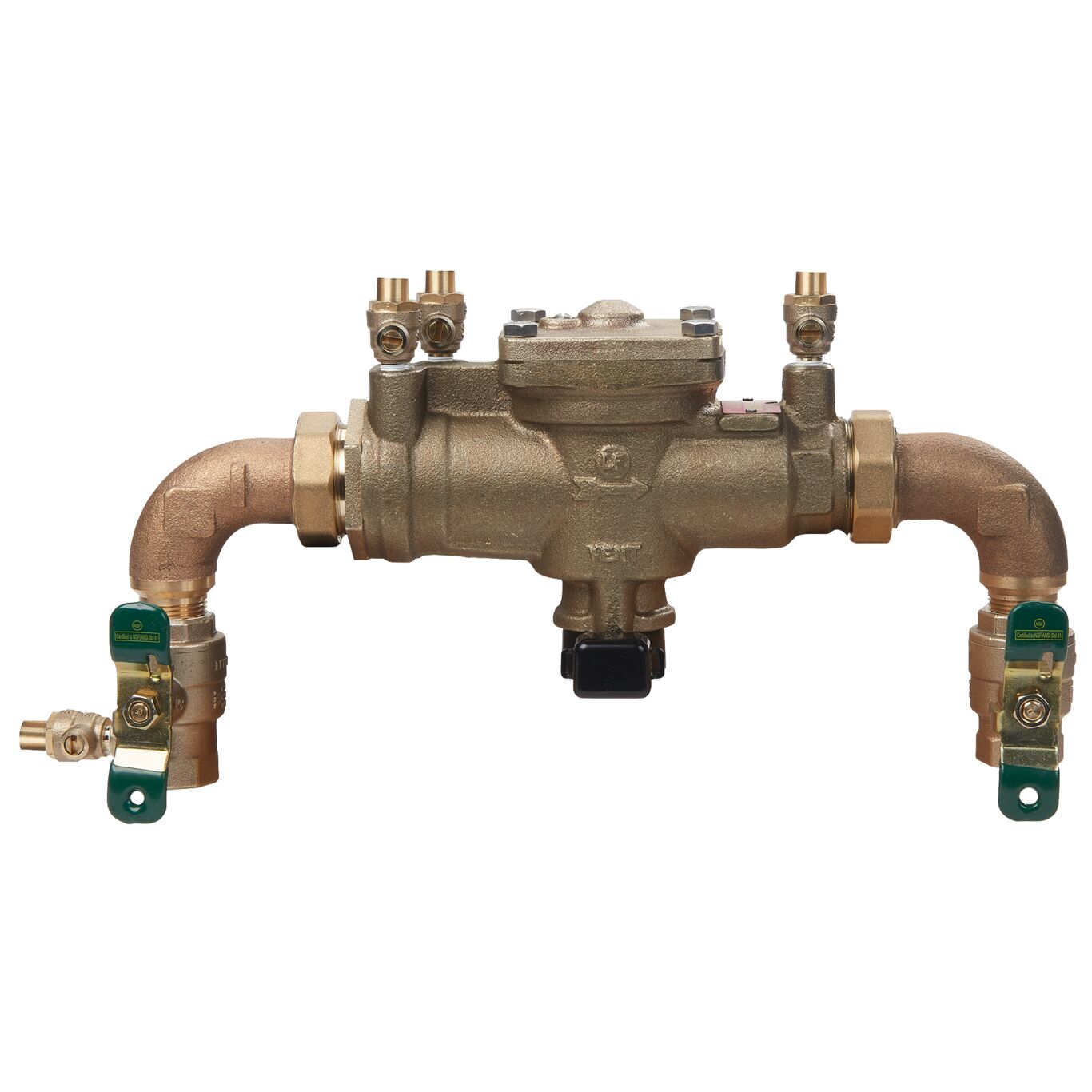

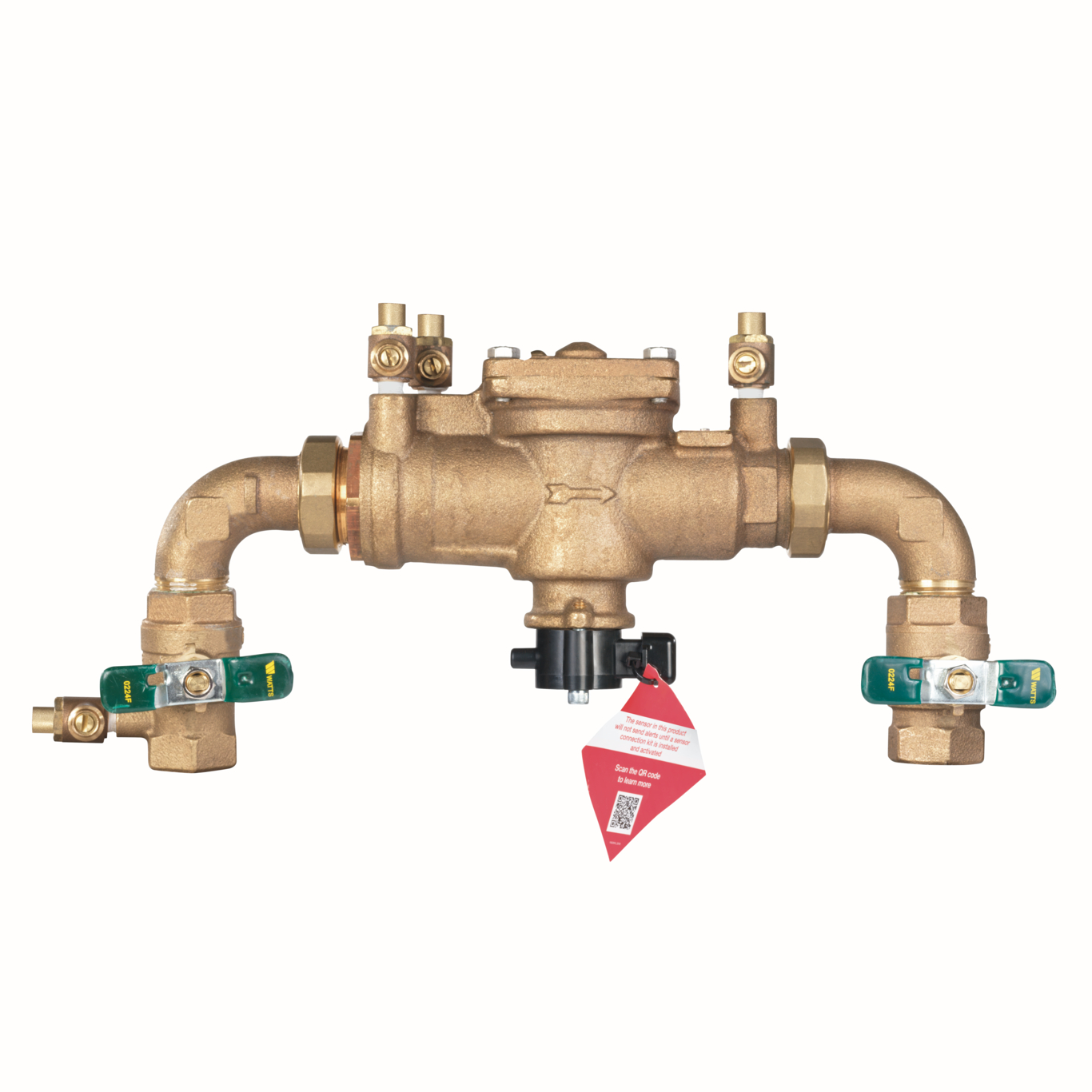

Reduced Pressure Zone Assembly Backflow Preventers with Swivel Union Connections and Flood Sensor, Sizes 1/2 - 2 IN
U009
Reduced Pressure Zone Assembly Backflow Preventers with Swivel Union Connections and Flood Sensor, Sizes 1/2 - 2 IN
Features
- Sensor on relief valve for flood detection
- Integrates with the Sensor Control Monitor to deliver maintenance alerts to BAS via RS-485 Modbus or the Nexa platform by Wi-Fi connectivity
- Unique swivel union design allows for variety of installations including prevention of health hazard cross-connections in piping systems or for containment at service line entrance
- Top entry provides immediate access to all internals
- Durable bronze body construction
- Compact, modular design facilitates easy maintenance, with no special tools required for servicing
Series U009 reduced pressure zone assemblies feature a flood sensor using SentryPlus Alert® technology to detect continuous discharge from the relief valve. When paired with an add on connection kit, the sensor is activated to relay alerts for potential flooding events. Connection kit options include BMS, cellular communication, and the Sensor Control Monitor which enables integration with BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi.
This series prevents the reverse flow of contaminated water caused by backsiphonage or backpressure from entering the potable water supply. Ideal for protection at health hazard cross-connections or for containment at the service line entrance. Its compact modular design facilitates maintenance and assembly access. Check with local water authorities for installation requirements.
To learn more visit: https://www.watts.com/floodprotectionsystem
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. Some certification agencies allow you to search by product name and brand.
Literature
Video - How to Activate Your Flood Detection System
Learn how to quickly register, activate, and test your SentryPlus Flood Sensor Upgrade Kit using the Syncta platform for seamless automated flood protection and customizable alerts.
Runtime : 00:02:18Watch Now
Video - Connected Backflow Flood Detection
Learn how Watts flood sensors integrated with backflow prevention assemblies provide real-time alerts for excessive relief valve discharge, helping prevent water damage and facility downtime.
Runtime : 00:01:10Watch Now
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific U009
No results found
| Model | Used On - Series or Model | Kit Contents |
|---|---|---|
|

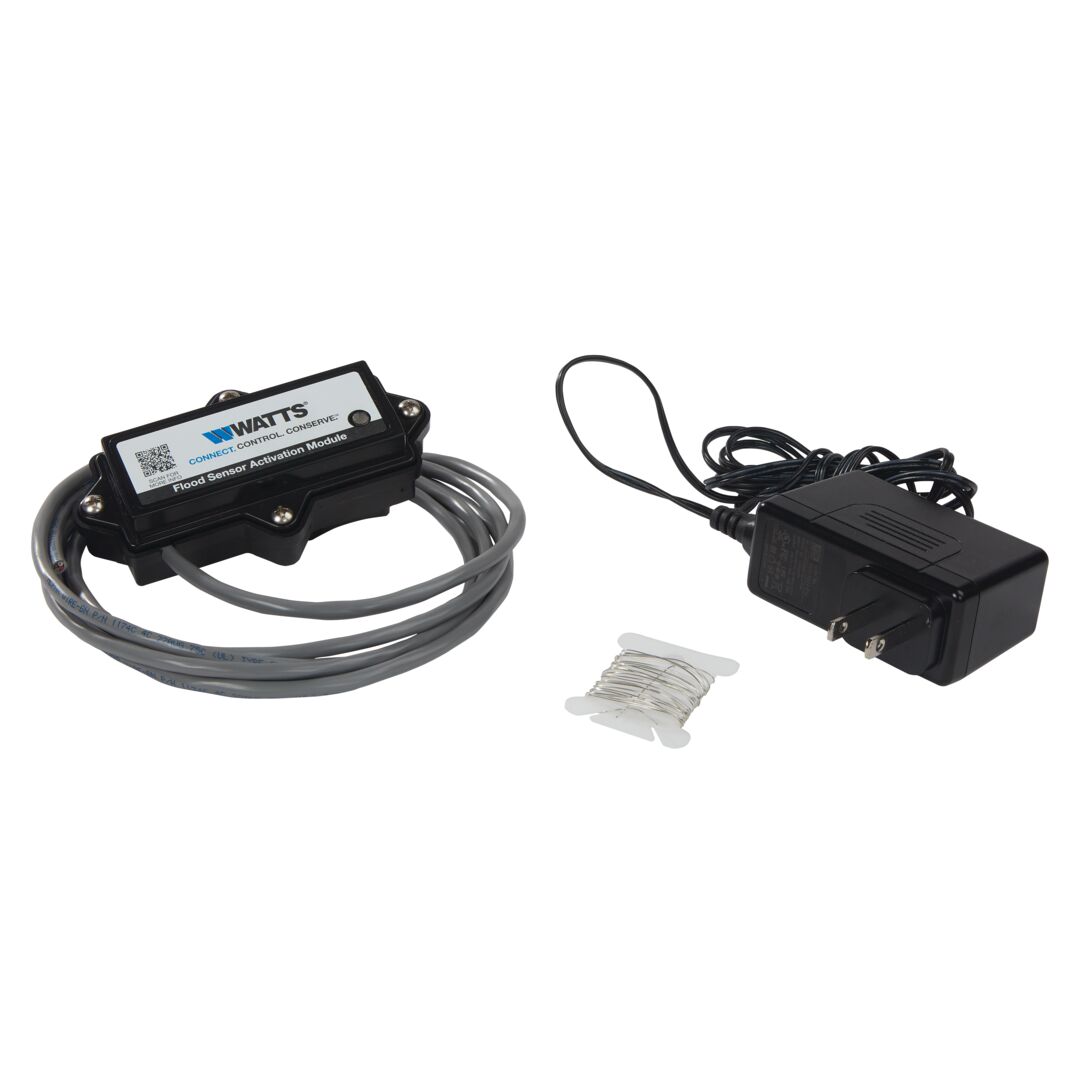

FP-BF-BMS 2 1/2-10
Activation Kit |
</br>009, LF009, 909, LF909, 909RPDA, LF919, 957, 957RPDA, LF957RPDA, 994, 994RPDA, C400, C500, LFC500, 4000SS, 5000SS</br> |
Sensor Activation Module with Cable, Ground Wire, Power Adapter</br> |
|

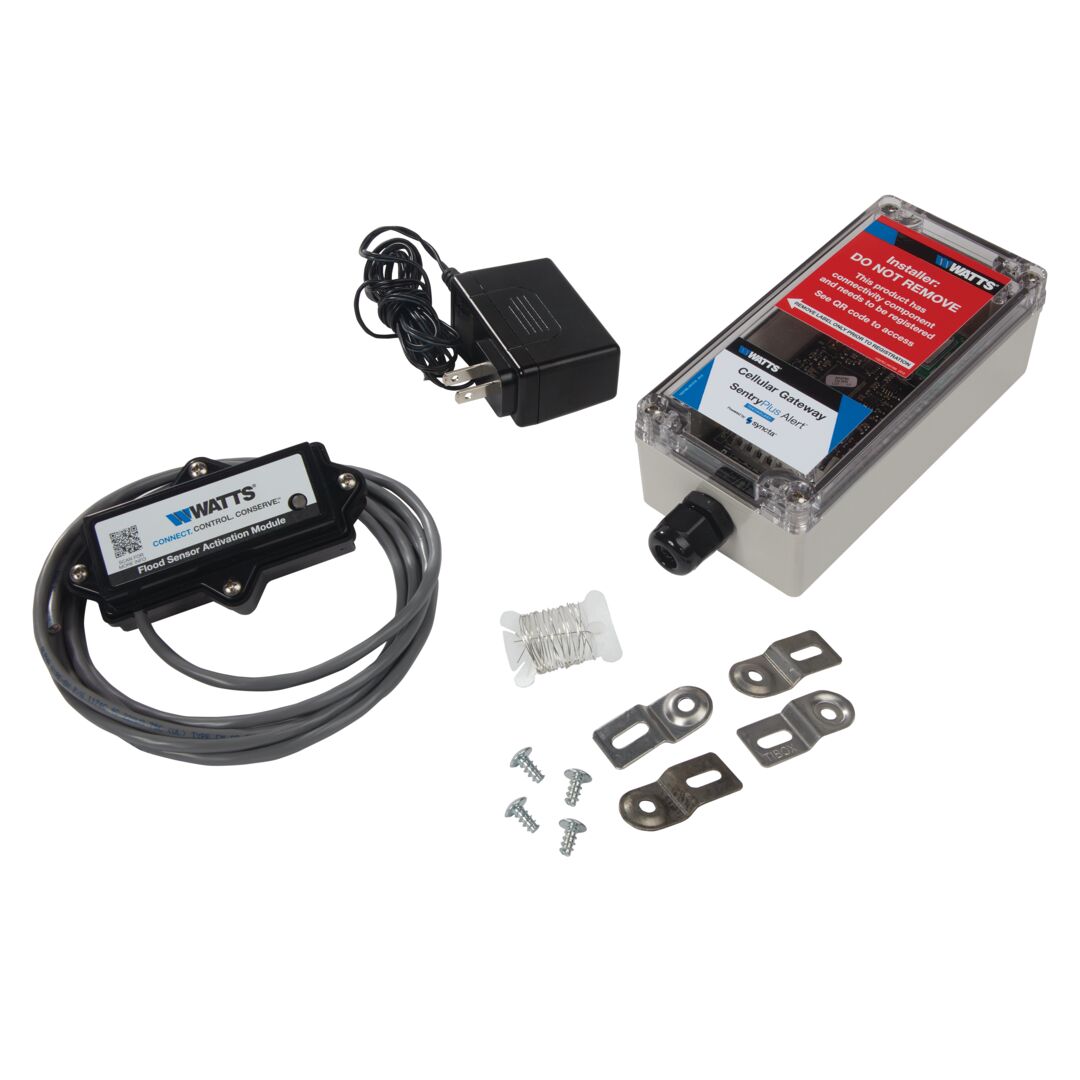

FP-BF-CFS 2 1/2-10
Activation Kit |
</br>009, LF009, 909, LF909, 909RPDA, LF919, 957, 957RPDA, LF957RPDA, 994, 994RPDA, C400, C500, LFC500, 4000SS, 5000SS</br> |
Sensor Activation Module with Cable, Cellular Gateway with Mounting Kit, Ground Wire, Power Adapter</br> |
|

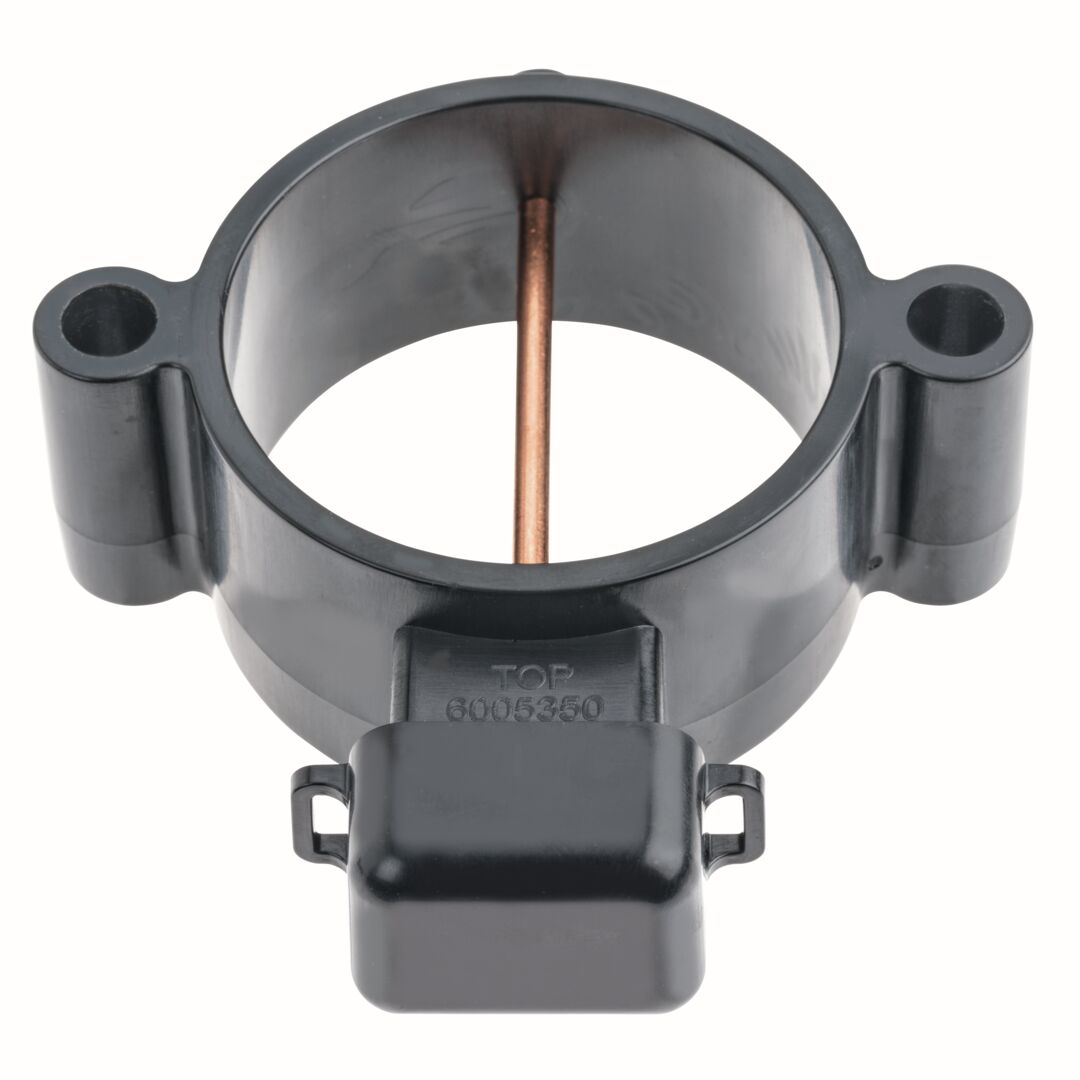

FP-BF-SA-009-1/2-3/4 M2
Upgrade/Repair Kit |
009</br></br> |

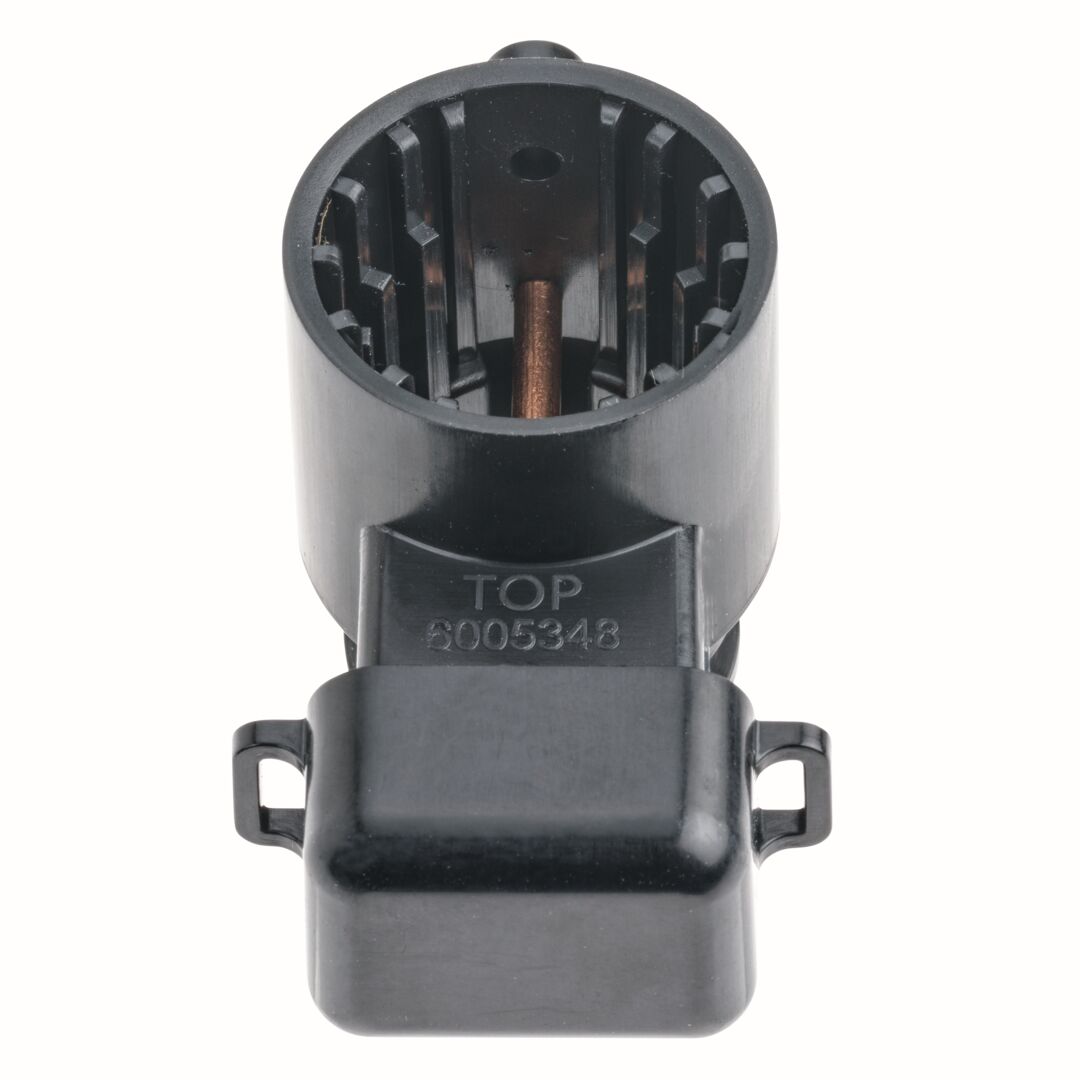

Flood Sensor and Screws</br> |
|

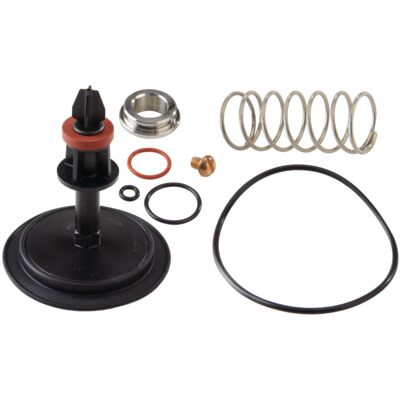

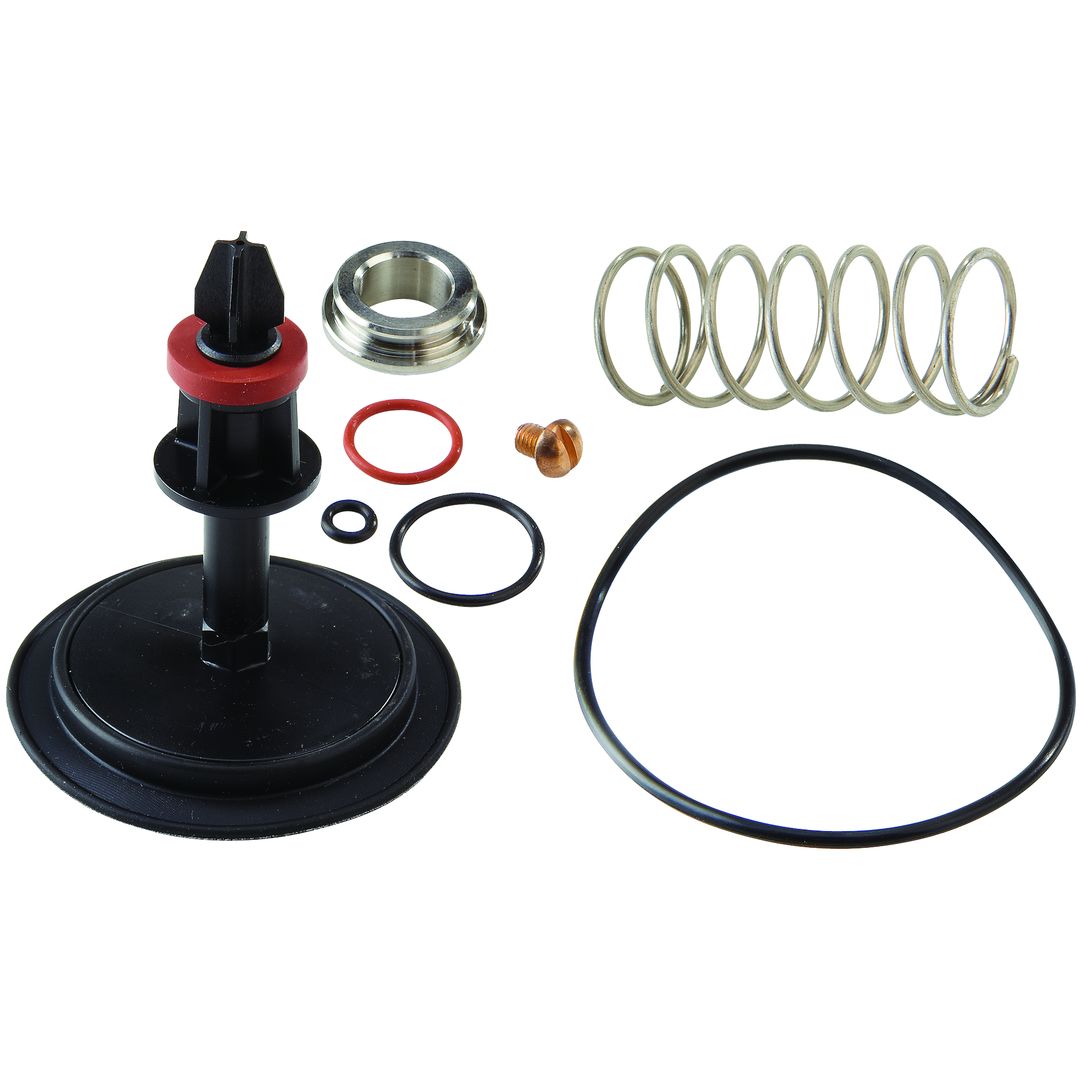

RK 009-VT 3/4-1
Total Relief Valve Kit |
</br>009</br> |
Seat, Seat O-ring, Stem and Diaphragm Assembly, Stem O-ring, Cover O-ring, RV Spring</br> |
|

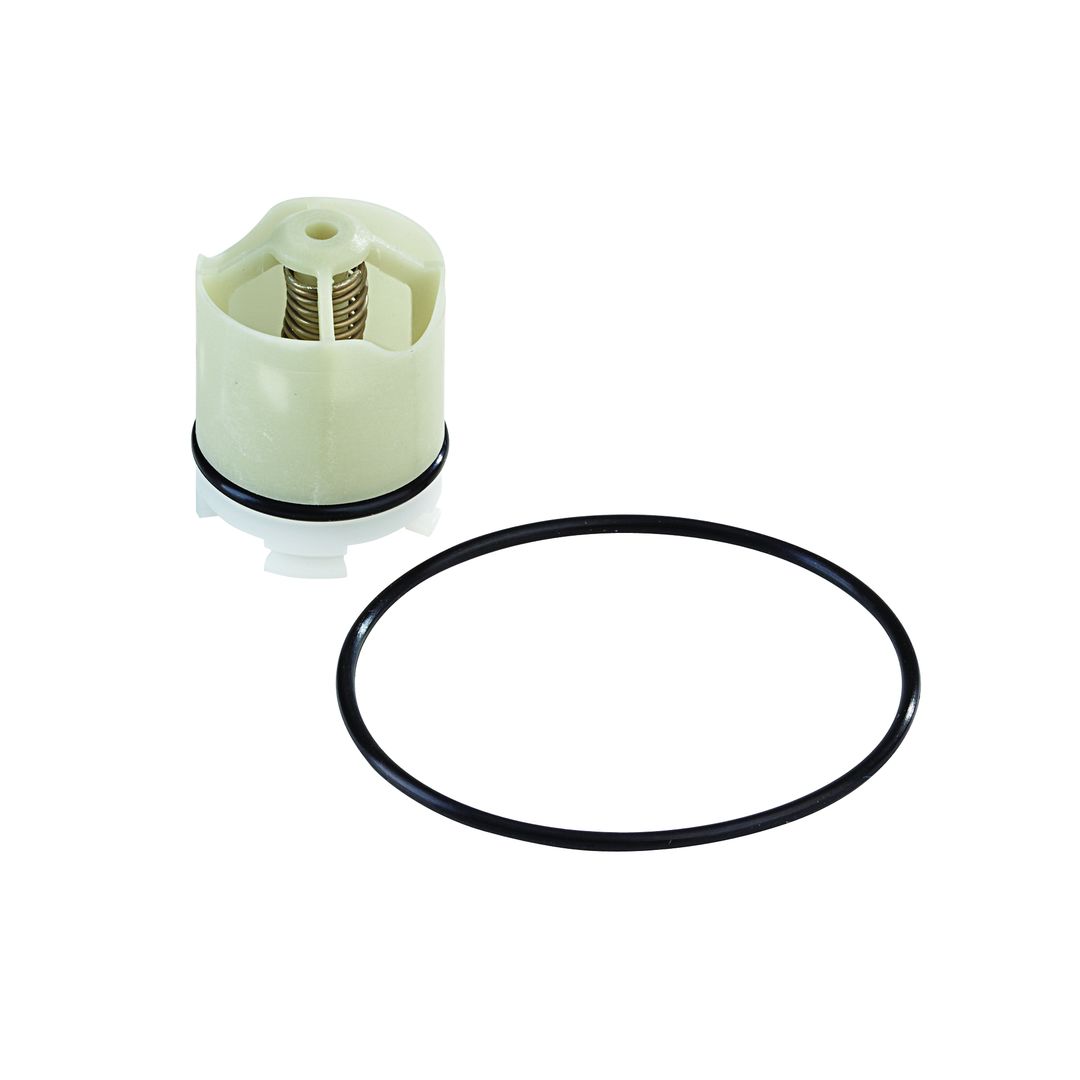

RK 009-CK1 1/4-1/2
First Check Kit |
</br>LF009, 009</br> |
Check Assembly, Cover O-ring</br> |
|

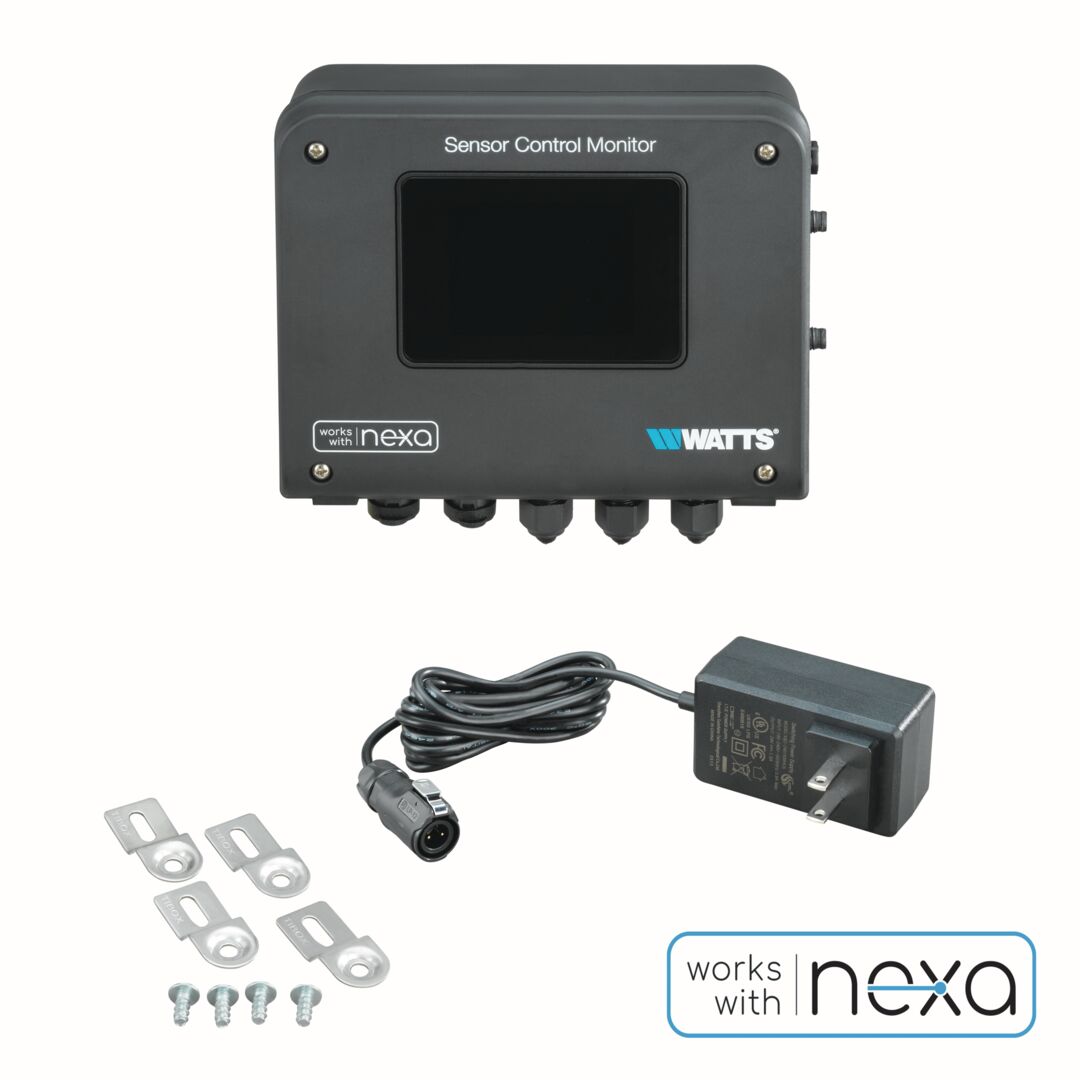

SCM-BF-CONN KIT
Activation Kit |
</br>Watts 009/LF009, LF909, LF919, 909RPDA, 957, 957RPDA, 994, 994RPDA; Ames C400, C500, 5000SS, 4000SS, FEBCO LF860, 825Y, LF825Y, LF866, LF880V, LF886V</br> |
Sensor Control Monitor, Power Adapter, Mounting Feet, and Quick Start Guide</br> |
|
FP-BF-SA-009/909 2-3 M2
Upgrade/Repair Kit |
009, 909, 909RPDA</br></br> |

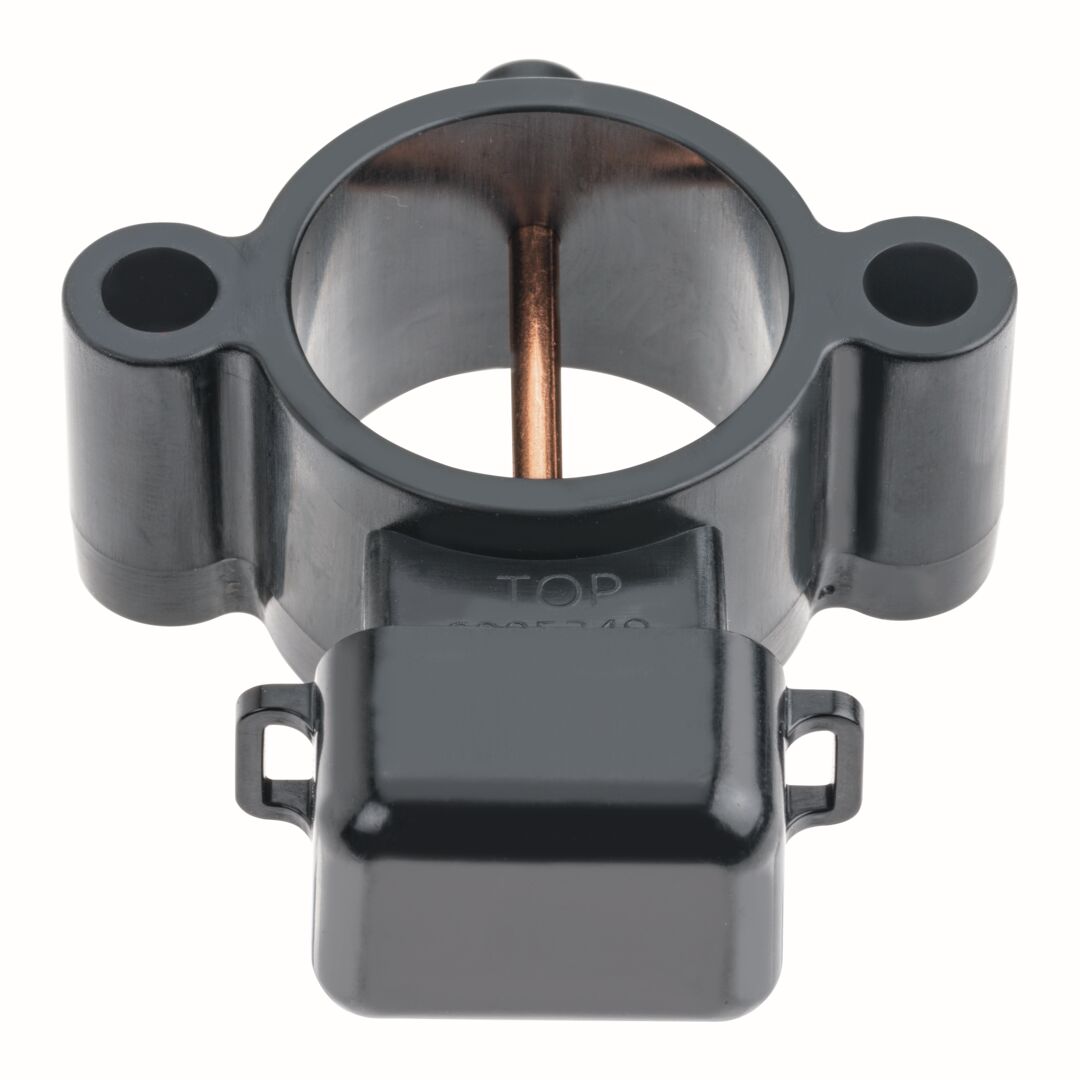

Flood Sensor and 2 Sets of Mounting Bolts</br> |
|

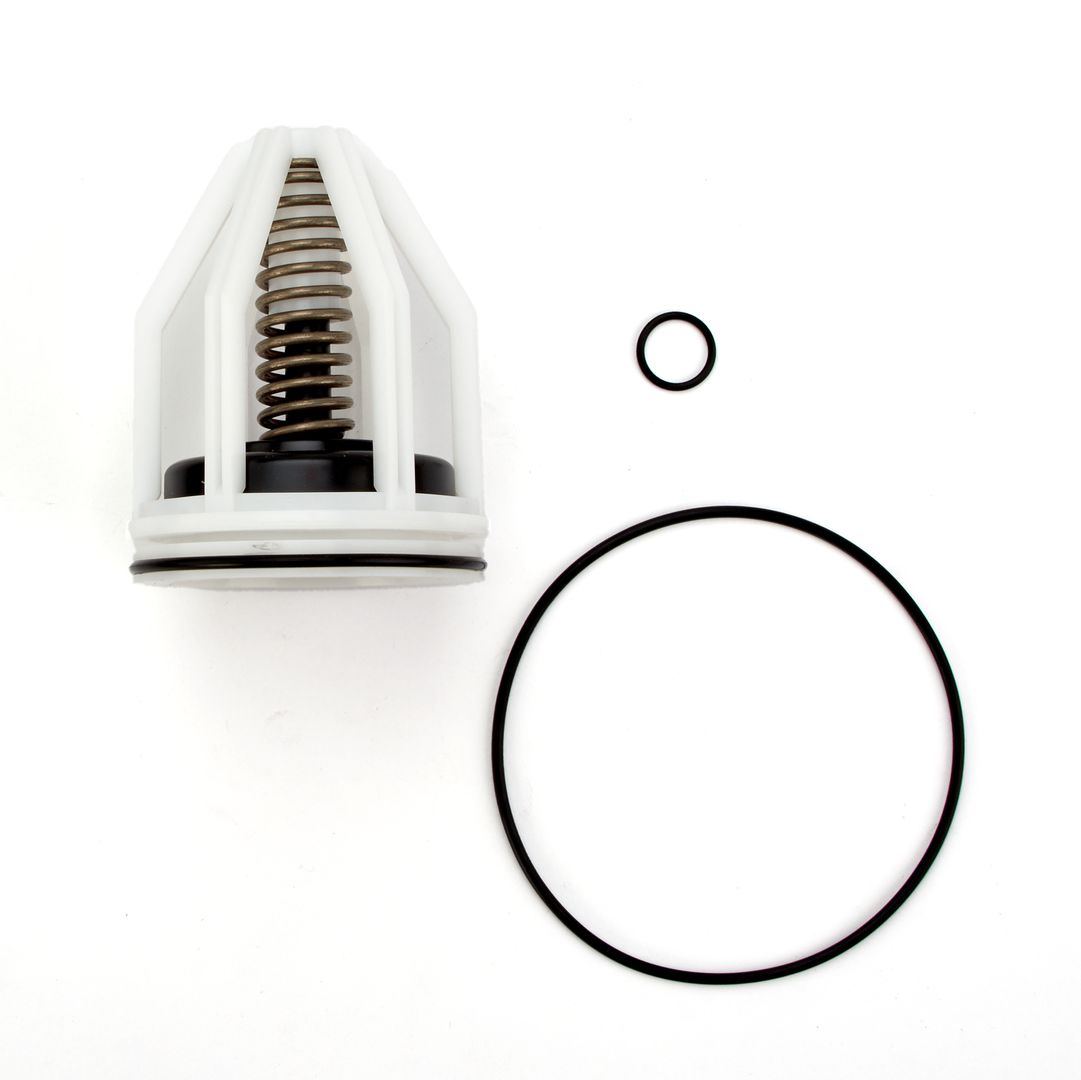

RK 009M2-CK1 2
First Check Kit |
</br>LF009M2, 009M2</br> |

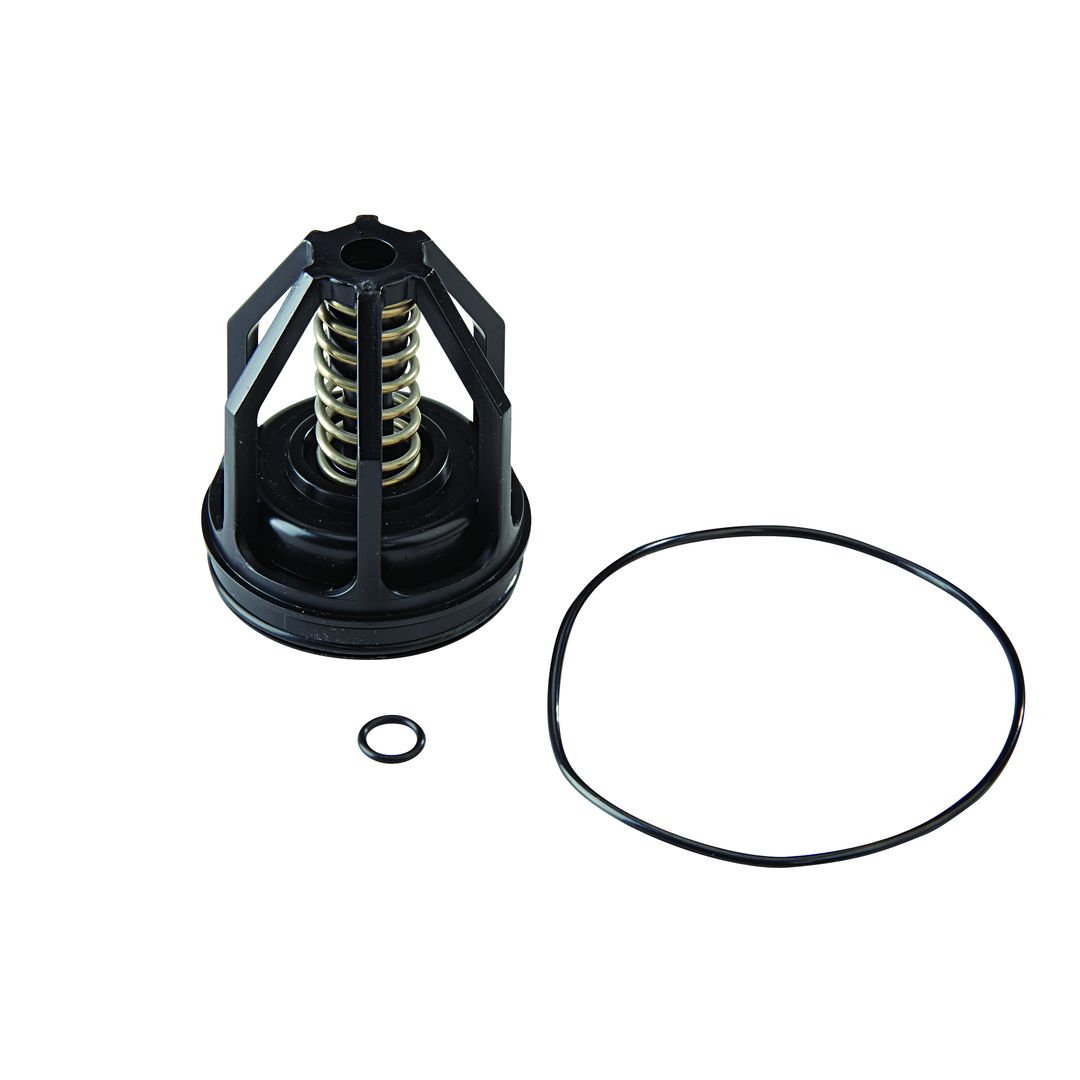

First Check Assembly, Cover O-ring, Sensing Passage O-ring</br> |
|
FP-BF-SA-009-1-11/2 M2
Upgrade/Repair Kit |
009</br></br> |
Flood Sensor and Mounting Bolts</br> |
|

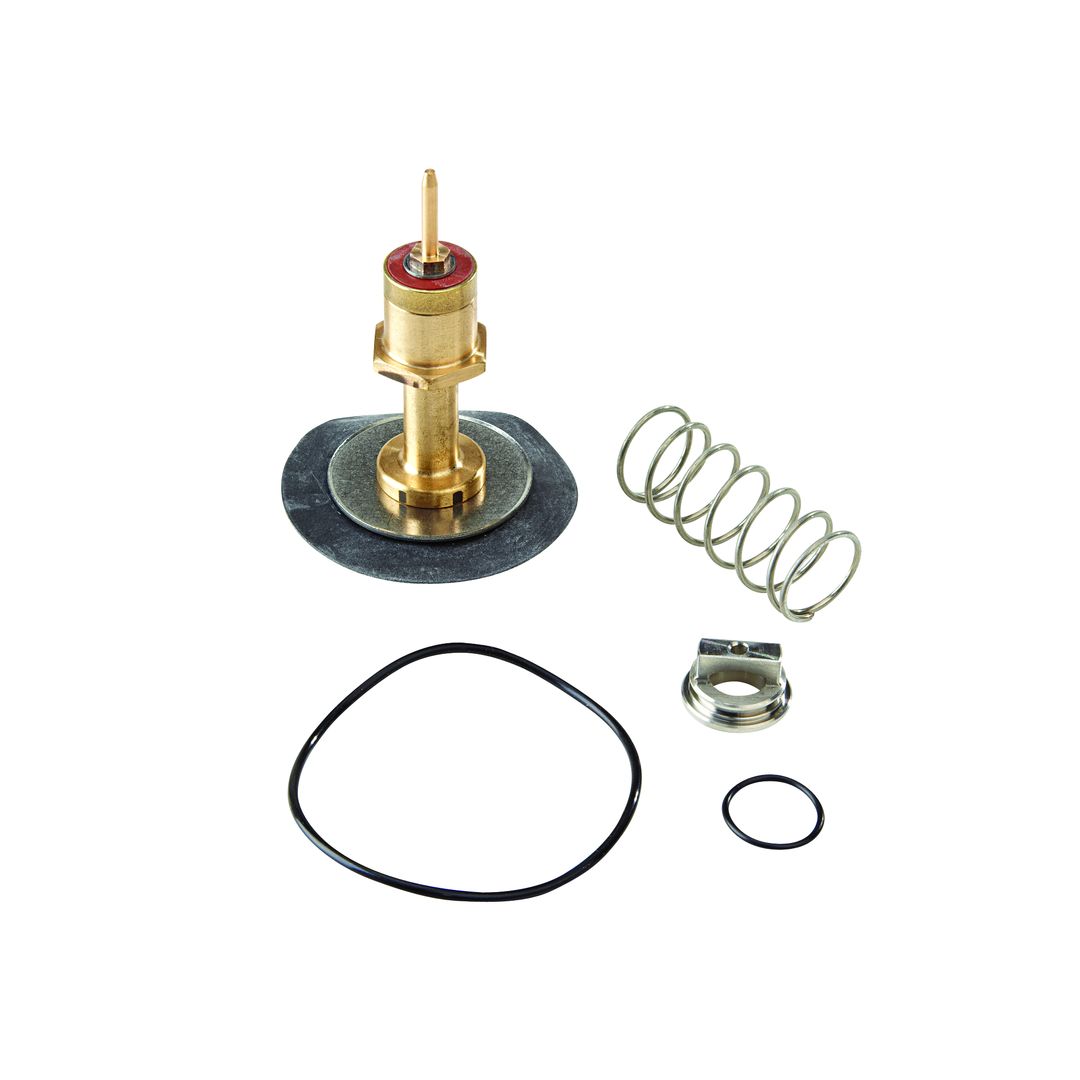

RK 009M2-VT 1
Total Relief Valve Kit |
</br>LF009M2, 009M2</br> |
Seat, Seat O-ring, Stem and Diaphragm Assembly, Stem O-ring, Cover O-ring, RV Spring</br> |
|
RK 009M2-CK1 1 1/4-1 1/2
First Check Kit |
</br>LF009M2, 009M2</br> |
First Check Assembly, Cover O-ring, Sensing Passage O-ring</br> |
|

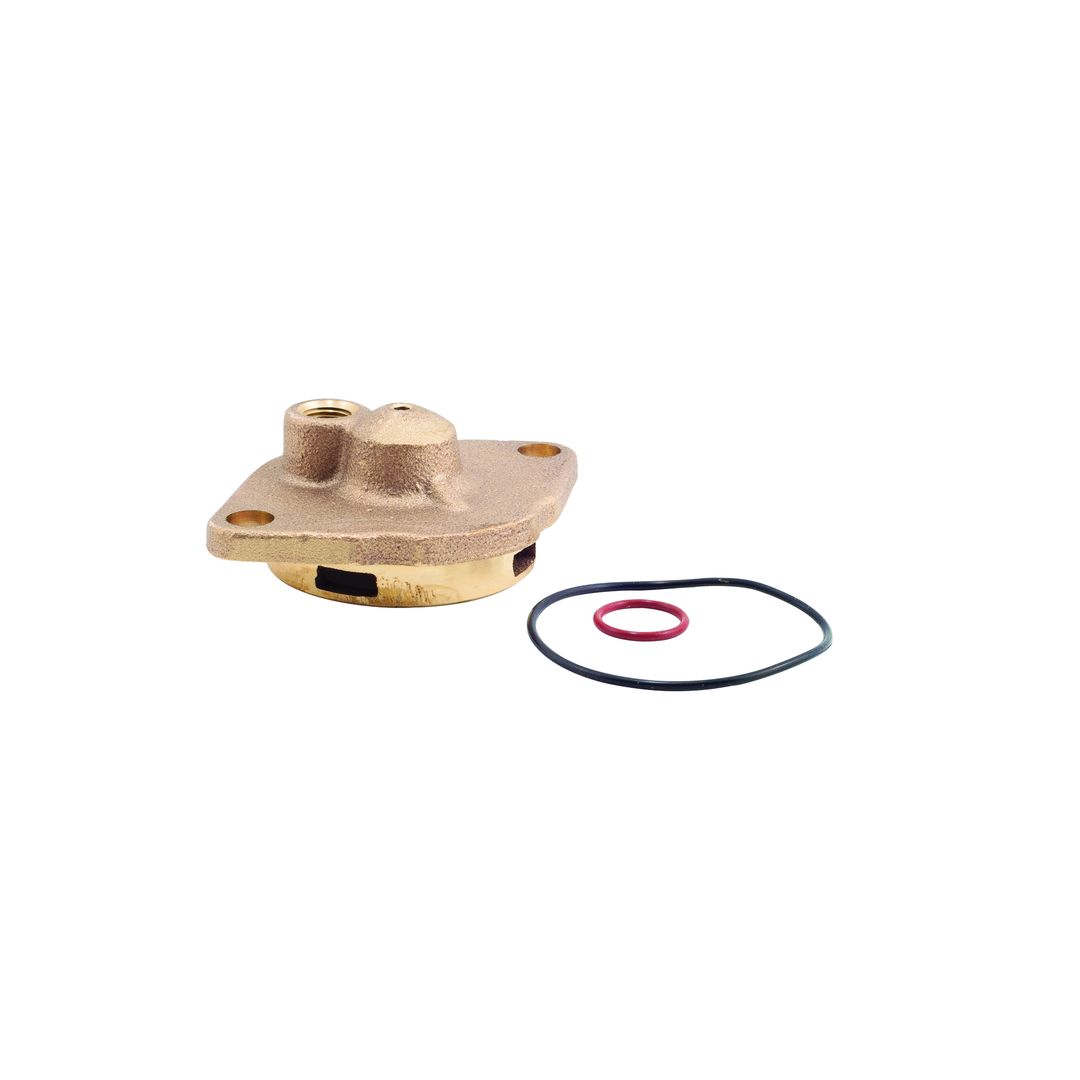

LFRK 009M3-C 3/4
Cover Kit |
</br>LF009M3, 009M2, 009M3</br> |
Cover, Cover O-ring</br> |
