LF3001A 1 1/2

Part of the LF3001A Series

Ordering Code: 0009868

UPC: 098268430233

Lead Free: YES

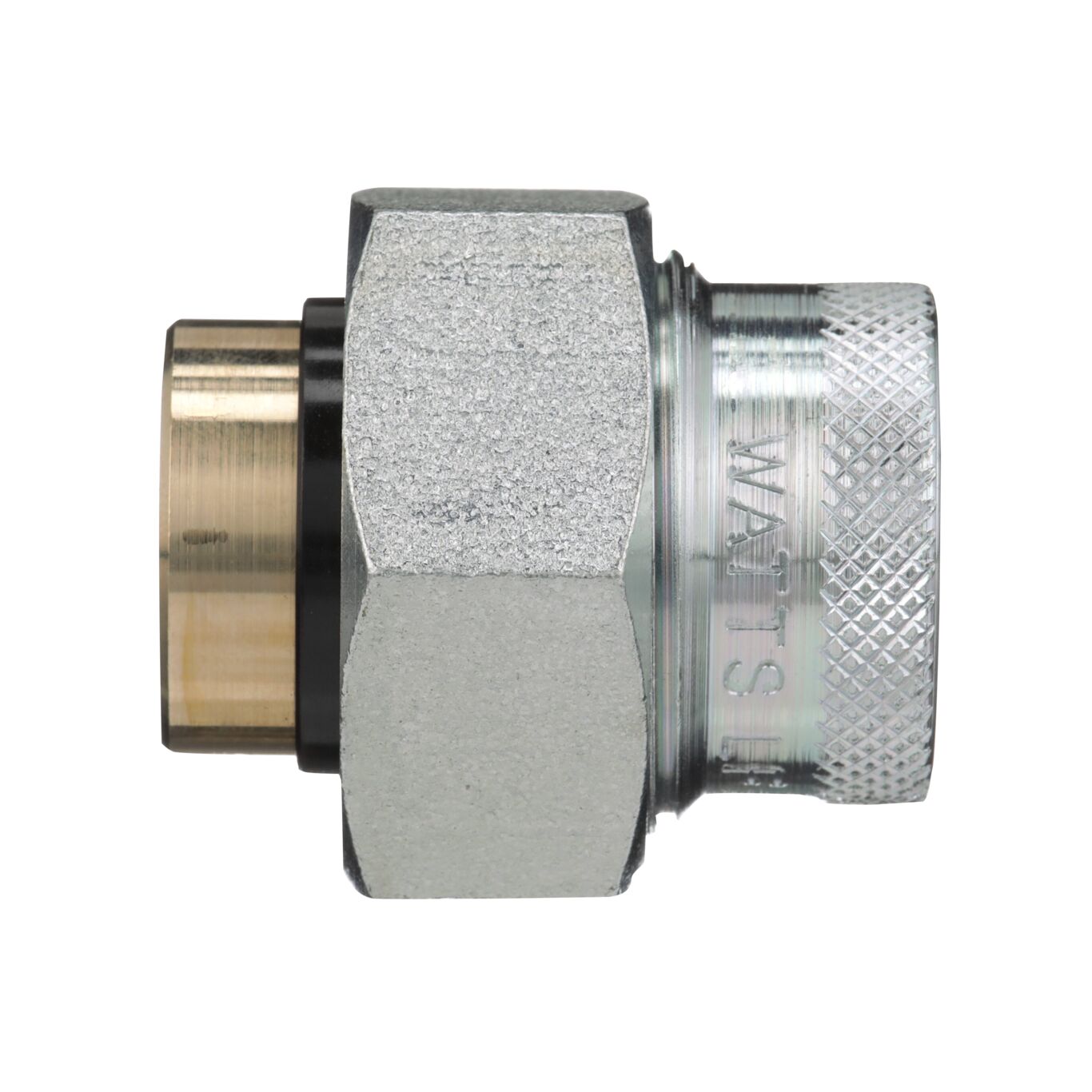

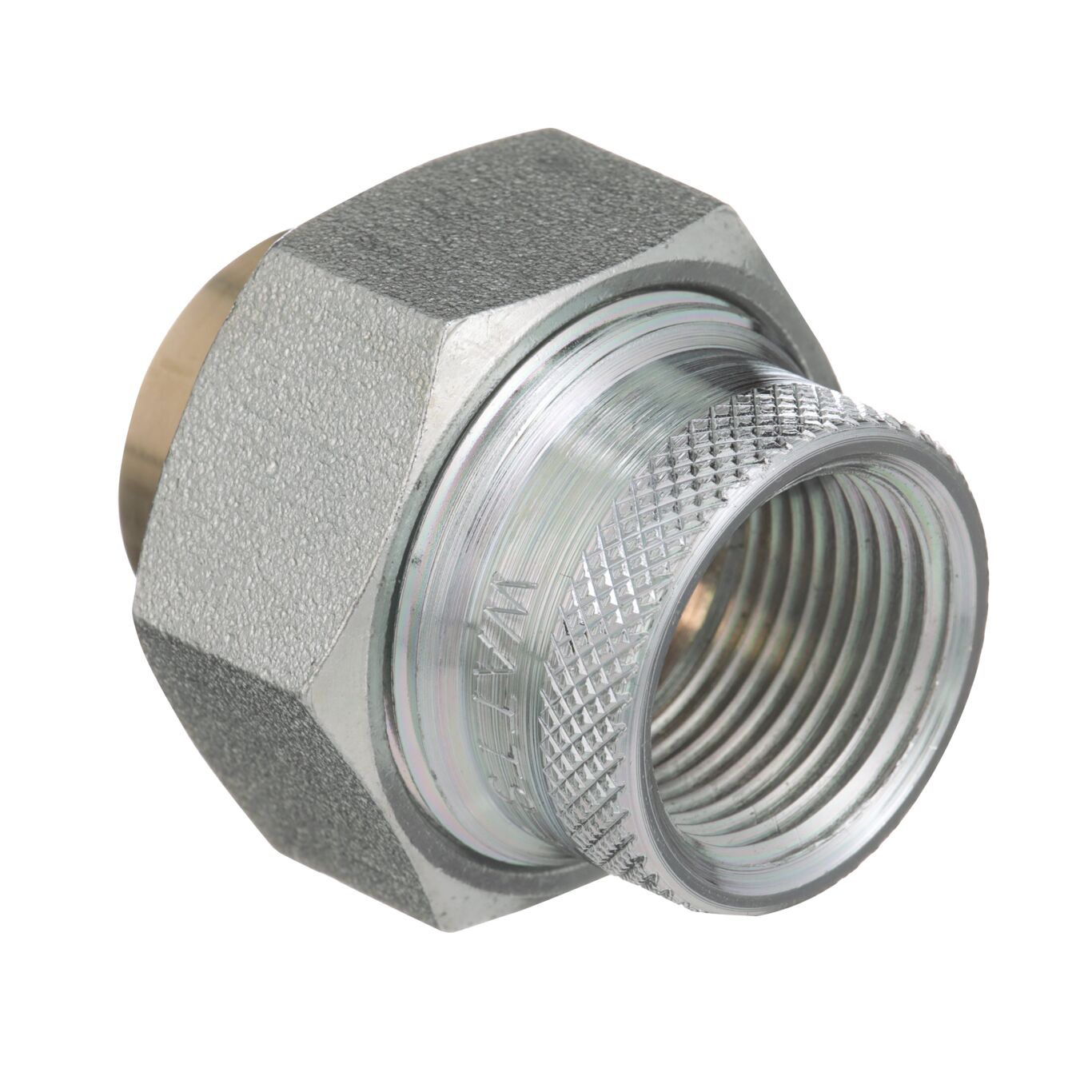

1 1/2 In Lead Free Dielectric Union, Female Iron Pipe Thread To Copper Solder Joint

This 1 1/2 inch lead free dielectric union is used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is installed between pipes made from dissimilar metals and is used on applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas, and water piping. It consists of a female iron pipe thread to solder connection, union nut, two tailpieces, and a Buna-N gasket that separates the tailpieces to prevent an electric current from occurring.

Product Features

  • Buna-N gasket
  • Designed and manufactured to the highest quality standards
  • Maximum pressure is 250 PSI (17.2 BAR)
  • Maximum temperature 180 degrees F (82 degrees C)
  • Individually factory certified to withstand a minimum of 600 volts on a dry line with no flashover
  • FIP thread to solder connections
  • Meets federal specifications for tensile strength and thread end connections
Specifications
Adapter Material Steel
BrandName Watts
Class Rating Does Not Apply To Product
Gasket Material Buna-N
Gasket Maximum Pressure 250 PSI
Gasket Maximum Pressure-BAR 17.20
Gasket Maximum Temperature 180 Degree F
Inlet Connection Size 1 1/2 IN
Inlet Connection Type Female Threaded
Inlet Material Steel
Inlet Thread Type NPT
Insulator Material Polysulfone
LeadFree YES
Maximum Working Pressure-PSI 250
Maximum Working Temperature-Fahrenheit 180
ModelNumber LF3001A 1 1/2
Nut Material Malleable Iron
Outlet Connection Size 1 1/2 IN
Outlet Connection Type Socket
Outlet Material Lead Free Brass
Outlet Thread Type Does Not Apply To Product
Part Number 0009868
Series LF3001A
