LF3008 3/4

Part of the LF3008 Series

Ordering Code: 0009881

UPC: 098268430363

Lead Free: YES

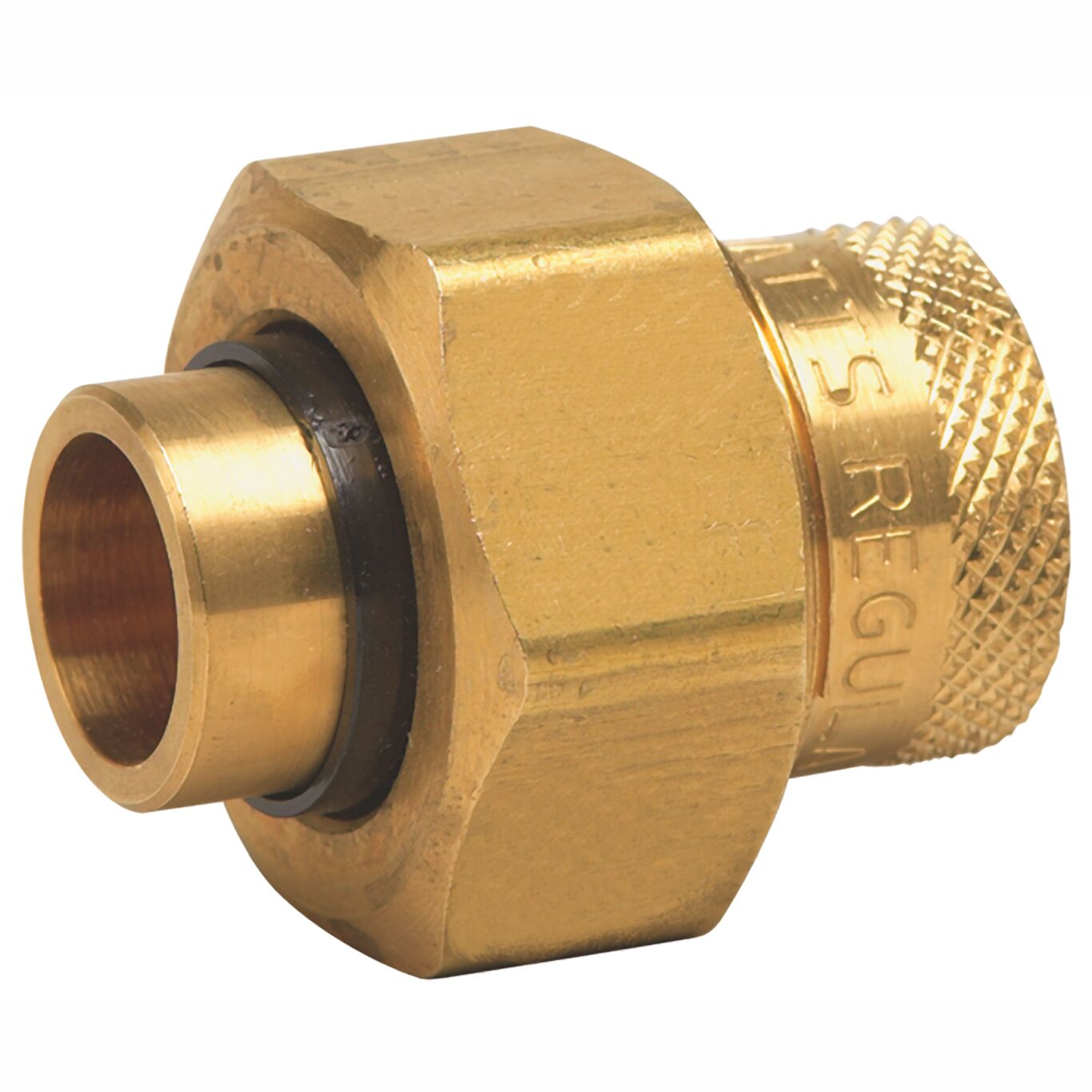

3/4 In Lead Free Dielectric Union, Female Brass Pipe Thread To Female Solder Connection

This 3/4 inch lead free dielectric union is used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is installed between pipes made from dissimilar metals and is used on applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas, and water piping. It consists of a female brass pipe thread to female solder connections, union nut, two tailpieces, and a Buna-N gasket that separates the tailpieces to prevent an electric current from occurring. The maximum temperature is rated up to 180 degrees F (82 degrees C) at 250 psi (17.2 bar).

Product Features

  • Maximum pressure is 250 psi (17.2 bar)
  • Female brass pipe thread to female solder connections
  • Maximum temperature 180 degrees F (82 degrees C)
  • Buna-N gasket
Adapter Material Lead Free Brass
Brand Name Watts
Class Rating Does Not Apply To Product
EANUCCCode 098268430363
Gasket Material Buna-N
Gasket Maximum Pressure 250 PSI
Gasket Maximum Pressure-BAR 17.20
Gasket Maximum Temperature 180 Degree F
Inlet Connection Size 3/4 IN
Inlet Connection Size-Metric 20 MM
Inlet Connection Type Female Threaded
Inlet Material Lead Free Brass
Inlet Thread Type NPTF
Insulator Material Polysulfone
Lead Free YES
Maximum Working Pressure-PSI 250
Maximum Working Temperature-Fahrenheit 180
Nut Material Brass
Outlet Connection Size 3/4 IN
Outlet Connection Type Socket
Outlet Material Lead Free Brass
Outlet Thread Type Does Not Apply To Product
Part Number 0009881
Series LF3008
