LFN55BM1-DU-G 1 Watts

Part of the LFN55B-M1 Series

Ordering Code: 0009646

UPC: 098268334357

Lead Free: YES

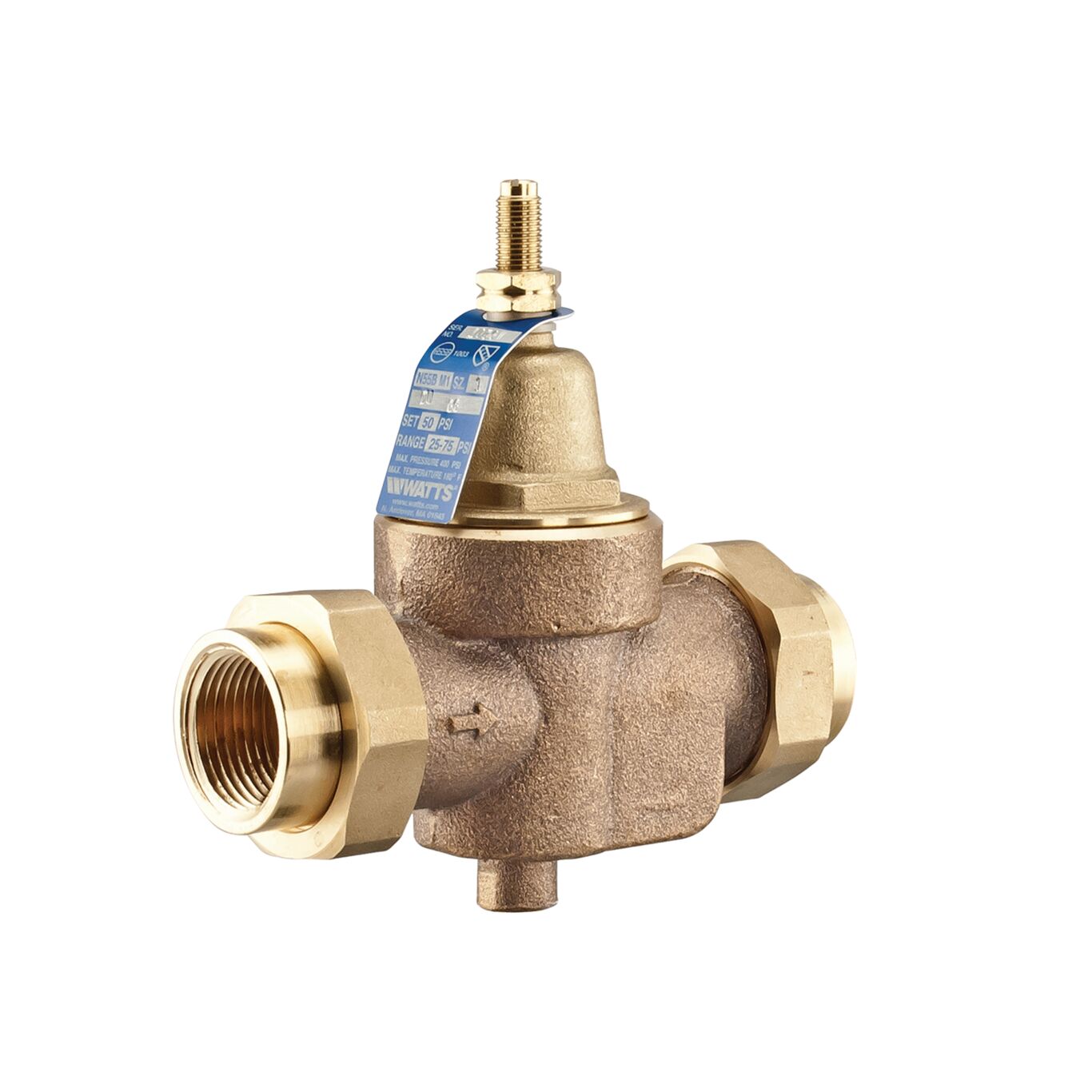

1 IN Lead Free Brass Water Pressure Reducing Valve, Double Union, FPT, Adjust 25-75 PSI, Max Work 400 PSI, Gauge Tapping

This 1 inch water pressure reducing valve is used in commercial and residential applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. It consists of a lead free brass body construction, female NPT union inlet and outlet connection, integral stainless steel strainer, thermoplastic seat, brass sealed spring cage for accessible outdoor waterworks or pit installations, a thermal expansion bypass, and a gauge port tapping furnished with a pipe plug. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). Suitable for up to 400 PSI (27.6 BAR), the pressure range can be adjusted from 25 to 75 PSI (172 to 517 kPa) with the standard setting at 50 PSI (345 kPa).

Product Features

  • Sealed spring cage for accessible outdoor or waterworks pit installations
  • Gauge port tapping allows downstream pressure measurements
  • Engineered copper-silicon body material
  • Integral stainless steel strainer removable for cleaning
Specifications
Adjustable Reduced Pressure Range 25 to 75
Adjustable Reduced Pressure Range-BAR 1.8 to 5.2
Body Material Brass
BrandName Watts
Corrosion Resistant Coating No
Disc Material Reinforced EPDM
Gauge Option Gauge Tapping
Inlet Connection Size 1 IN
Inlet Connection Type Union Joint
Inlet Thread Type NPT
LeadFree YES
Maximum Operating Temperature-Fahrenheit 180
Maximum Working Pressure-BAR 27.60
Maximum Working Pressure-PSI 400
Minimum Temperature-Fahrenheit 33
ModelNumber LFN55BM1-DU-G 1
Outlet Connection Size 1 IN
Outlet Connection Type Union Joint
Outlet Thread Type NPT
Part Number 0009646
Series LFN55B-M1
Standard Reduced Pressure Setting-BAR 3.40
Standard Reduced Pressure Setting-PSI 50
Strainer Yes
Strainer Material Stainless Steel
Thermal Expansion Bypass Yes
Trim Material Bronze
Valve Style Standard
